Rittal TS 8801.240 Trim Panel - Hinged Top, 800x300
Part Number: 8801240
Quick Summary
Rittal TS 8801.240 Trim Panel is a rugged mounting accessory for control and display components in modular front designs. It simplifies integration and reduces installation time in compact enclosures, addressing the challenge of fitting electronics behind tight front panels. While certification details like CE, IP, or SIL are not specified for this model, it aligns with ETIM EC002617 and ECLASS 27189260 classifications, supporting standardized procurement. The 2.0 mm sheet steel construction with textured RAL 7035 finish delivers durable protection and a uniform appearance. This trim panel supports TS modular fronts and protective bars, delivering repeatable, scalable installations that improve maintenance consistency and plant aesthetics across multiple enclosures.
Product Information
Extended Description

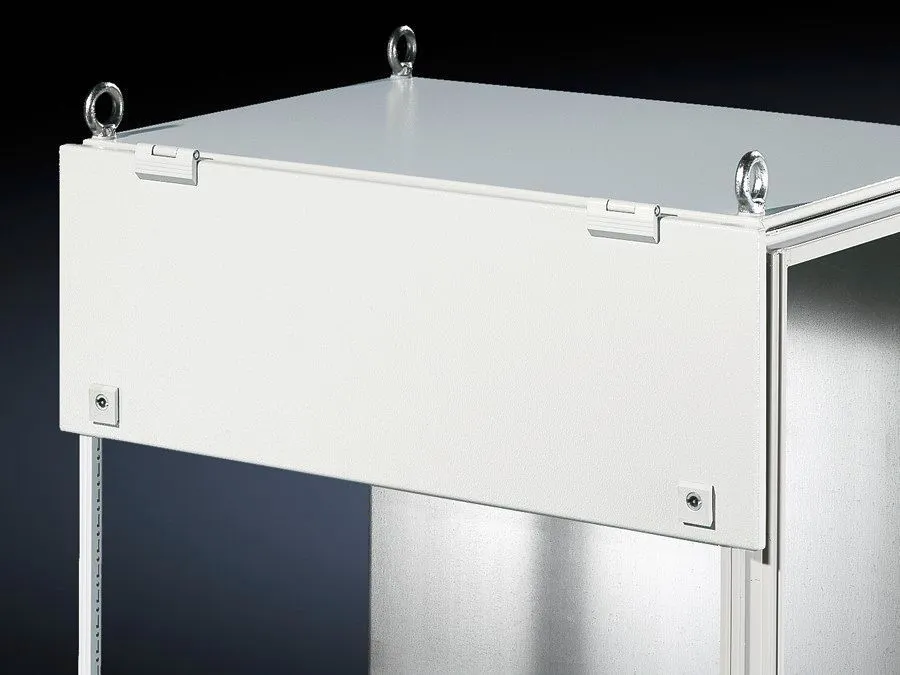

8801240 Rittal: TS Trim panel, hinged at the top, WH: 800x300
Article number
TS 8801.240
Product description
For the installation of control and display components, in conjunction with modular front design and protective bar TS.
Material
Sheet steel, 2.0 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Hinges, cam locks with double-bit insert and assembly parts.
Note
Not in conjunction with top mounting module for TS
Dimensions
Width: 800 mm | Height: 300 mm
Packs of
1 pc(s).
Weight/pack
5.6 kg
Customs tariff number
94039910
EAN
4028177319219
ETIM 9
EC002617
ECLASS 8.0
27189260
Product description
TS Trim panel, hinged at the top, WH: 800x300
Hinged top design enables quick access to installed components, reducing downtime during maintenance and upgrades. This feature translates to faster service turns and lower labor costs, particularly in high-availability automation setups using TS front systems. The 2.0 mm sheet steel with textured paint provides robust mechanical protection against bumps and dust, while maintaining a professional, consistent plant look—essential for audits and visual inspections in regulated environments. With dimensions of 800 mm by 300 mm, the panel fits standard TS openings, enabling seamless interchangeability across multiple cabinets and reducing inventory complexity for procurement teams. Supplied hinges and cam locks streamline assembly, cutting installation time and eliminating the need for sourcing hardware separately. The note on TS compatibility clarifies correct pairing with front designs and TS protective bars to avoid mismatches during rollout. The result is a reliable, scalable solution that supports proactive maintenance and long-term cost containment while aligning with TS installation best practices.
Get a Quick Quote for a Rittal 8801240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8801240?
Enquire Now
FAQs
The trim panel is designed for seamless insertion into TS modular fronts, using top hinges and integrated cam locks. It provides a dedicated space for control and display modules while aligning with protective bars, ensuring consistent fit and finish across installations.
Constructed from 2.0 mm sheet steel with a textured paint finish, the panel measures 800 mm in width and 300 mm in height. It weighs 5.6 kg per pack and uses RAL 7035 color for a uniform industrial appearance.
The 2.0 mm steel construction and textured protective finish provide robust mechanical protection and a durable surface that resists wear in typical factory environments. It’s intended for secure mounting of control and display components within TS enclosures.
This model aligns with ETIM 9 EC002617 and ECLASS 8.0 27189260 classifications. Specific CE, IP, or SIL certifications are not listed in the provided data, so verify project requirements separately if certification is a strict criterion.
With hinges and cam locks included, installation is faster and parts are readily replaceable, reducing downtime during upgrades. The durable finish and standardized TS fitment support consistent maintenance practices and scalable rollout across multiple enclosures, contributing to lower long-term operating costs.
