Rittal 8801915 TS Drawer - Sheet steel
Part Number: 8801915
Quick Summary
Rittal TS Drawer 8801915 is a keyboard and mouse drawer for TS enclosures. Engineers often struggle with cluttered workspaces and limited protection when access flaps are opened. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, supporting standardized data and interoperability. This enclosure accessory delivers improved workstation organization, enhanced protection, and streamlined procurement for keyboard drawers and enclosure accessories.
Product Information
Extended Description

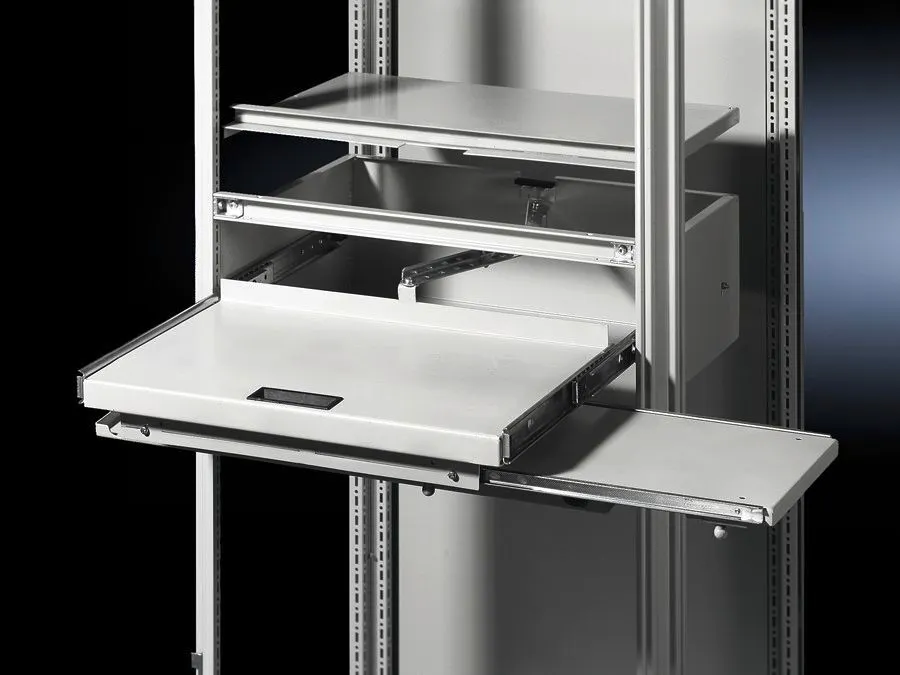

8801915 Rittal: TS Drawer, for TS, WD: 800x200 mm
Article number
TS 8801.915
Product description
For mouse and keyboard with a maximum width of 500/700 mm. A high level of protection is retained, even with the flap open.
Material
Sheet steel
Colour
RAL 7035
Supply includes
Drawer | Flap | Cross member | Assembly parts
Assembly instruction
Standard double-bit lock insert may be exchanged for 27 mm lock inserts, type A or plastic handles, type B or T handles, type B.
Dimensions
Width: 800 mm | Height: 200 mm
Packs of
1 pc(s).
Weight/pack
21.4 kg
Customs tariff number
94039910
EAN
4028177258907
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS Drawer, for TS, WD: 800x200 mm
Protective flap design preserves a high level of protection even when the flap is open, reducing dust ingress and maintaining enclosure integrity during frequent access. This translates to lower maintenance costs and longer equipment life in harsh environments, such as manufacturing lines and machine panels where quick access is routine. The 800x200 mm drawer provides space for a keyboard and mouse with widths up to 500/700 mm, enabling ergonomic placement and a tidier control area, which improves operator efficiency and reduces repetitive strain in data centers and industrial plants. Crafted from sheet steel with a RAL 7035 finish, the unit offers durability, corrosion resistance, and easy cleaning, supporting long service intervals in rugged environments. All essential components—drawer, flap, cross member, and assembly parts—are included, simplifying installation and reducing project lead times for new builds or cabinet retrofits. Lock insert compatibility and multiple handle options allow tailoring security to facility requirements, ensuring compliant access control without rework or additional procurement.
Get a Quick Quote for a Rittal 8801915
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8801915?
Enquire Now
FAQs
The TS Drawer is designed specifically for TS and WD cabinets, including a drawer, flap, cross member, and assembly parts. It supports standard installation workflows and can be combined with the existing TS framework without custom brackets. The included components reduce on-site assembly time and improve retrofit speed, making it ideal for upgrading legacy enclosures or standardizing new builds.
Key specs include a width of 800 mm and height of 200 mm, sheet steel construction, color RAL 7035, and a weight of 21.4 kg per pack. The unit accommodates a mouse and keyboard up to 500/700 mm wide and includes the drawer, flap, cross member, and assembly parts for a complete installation. EAN 4028177258907 and customs tariff 94039910 are listed in the data sheet.
Yes, the design maintains a high level of protection even with the flap open, which minimizes dust ingress and protects sensitive electronics during frequent access. This is particularly important in manufacturing environments and control cabinets where operators regularly interact with equipment, helping to maintain reliability and reduce maintenance cycles.
Yes. The standard double-bit lock insert can be exchanged for 27 mm lock inserts, and the system supports various handle types (type A, type B, or T handles). This flexibility allows firms to meet different security policies or facility requirements without additional procurement or rework.
The included components (drawer, flap, cross member, assembly parts) streamline installation and reduce lead times, lowering project labor costs. The durable sheet steel body with a consistent color (RAL 7035) simplifies maintenance and spare parts planning, while the ergonomic drawer width improves operator efficiency, contributing to measurable productivity gains over time.
