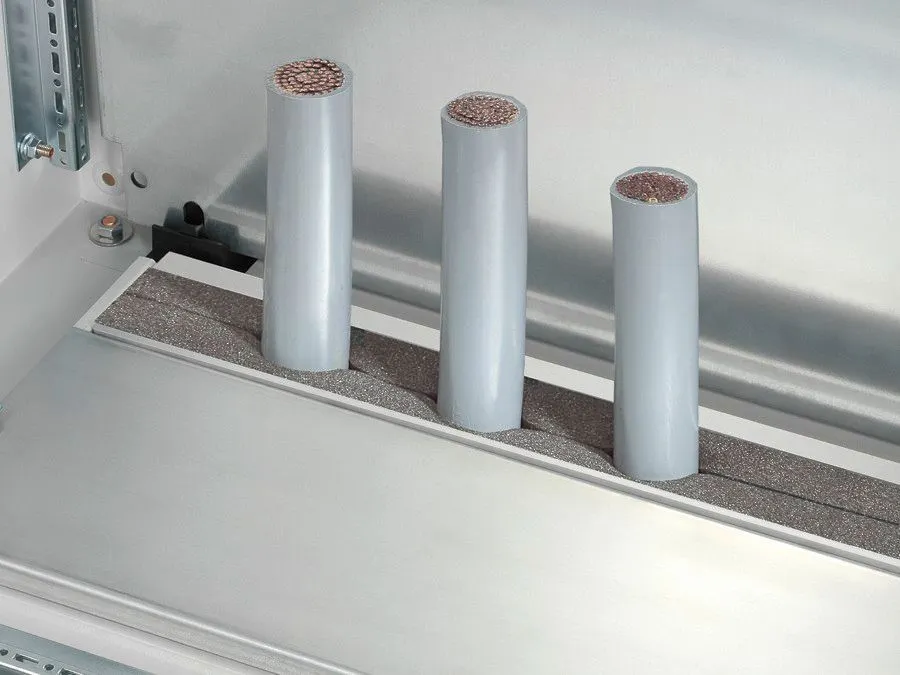

Rittal 8802085 TS Section for Cable Entry - IP55
Part Number: 8802085
Quick Summary
Rittal 8802085 TS Section for Cable Entry is a rear-entry mounting accessory for TS and TP enclosures. This solution simplifies base opening sealing and cable routing, reducing field install time and the likelihood of ingress leaks. It carries CE compliance and an IP55 rating when installed correctly, aligning with industry standards for enclosure integrity. By pairing the PU foam clamp strip with plug-in sections, it delivers reliable sealing for cables with identical cross-sections, delivering consistent performance. This compact, two-piece pack is ideal for 800 mm wide enclosures and supports efficient, scalable installations across multiple cabinet runs.
Product Information
Extended Description
8802085 Rittal: TS Section for cable entry, rear, for TS, VX SE, TP, for W: 800 mm
Article number
TS 8802.085
Product description
For sealing the cable entry at the base opening.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
Mount directly on the base opening/base tray and gland plate
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type:Â TS:Â = 800 mm | Enclosure type:Â TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
2 pc(s).
Weight/pack
0.31 kg
Customs tariff number
73269098
EAN
4028177496361
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
TS Section for cable entry, rear, for TS, VX SE, TP, for W: 800 mm
Feature: Foam rubber cable clamp strip with a cross-section of 30 x 25 mm. Business Impact: Delivers reliable, uniform compression for cables with identical cross-sections, reducing ingress risk and rework. Application: Ideal for sealing the base entry on TS/TP enclosures where cables share common cross-sections. Feature: Extruded aluminium section provides structural support with corrosion resistance. Business Impact: Enables a rigid, lightweight mounting solution that withstands factory conditions and simplifies handling. Application: Mount directly on the base opening or base tray for secure integration. Feature: Plug-in sections plus PU foam clamp strip included. Business Impact: Speeds installation and minimizes on-site labour; supports fast commissioning across multiple cabinets. Application: Supplied as 2-piece packs to cover base openings up to 800 mm. Feature: IP55 protection when installed correctly. Business Impact: Ensures reliable protection against dust and water ingress, safeguarding internal components. Application: Fits TS and TP enclosures per W: 800 mm standard. Feature: Material compatibility and fit. Business Impact: Compatible with TS: 800 mm and TP enclosure types, streamlining procurement and reducing part variation. Application: Suitable for base opening sealing and gland plate integration on Rittal systems.
Get a Quick Quote for a Rittal 8802085
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802085?
Enquire Now
FAQs
Start by aligning the plug-in sections with the base opening, then slide them into place on the base tray. Press the PU foam clamp strip so it creates a tight seal around the cables, ensuring two sections cover the opening for widths up to 800 mm. Verify a proper seal and confirm IP55 protection once mounted.
The clamp is designed for cables with identical cross-sections, specifically suited to a 30 x 25 mm profile. This uniform cross-section ensures consistent compression and reliable sealing. If you have mixed-diameter cables, consider grouping identical runs or using separate sections to maintain seal integrity.
Yes. The IP55 rating is achieved when the base-entry seal is installed correctly, with the foam clamp strip properly engaged and the plug-in sections fully seated. This configuration limits dust ingress and high-pressure water exposure under typical operating conditions.
Absolutely. The TS 8802.085 is designed for TS and TP base openings and supports W: 800 mm enclosures. The two-piece pack covers base openings up to 800 mm, simplifying standardization across TS and TP families and reducing part variety in stocking.
The 2-pack includes plug-in sections and the PU foam clamp strip for sealing the base opening. Each pack is sized to cover up to 800 mm widths and weighs about 0.31 kg per pack. Ensure proper gland plate alignment and secure mounting to achieve IP55 protection and optimal cable sealing.
