Rittal TS 8802.100 TS Section for Cable Entry - IP55
Part Number: 8802100
Quick Summary
TS 8802.100 is a TS section for cable entry used to seal gland plates in TS/TP enclosures, providing a clean central path for cabling. Many users struggle to seal gaps reliably without complicating installation or increasing costs, especially during retrofits or when space is tight. It delivers IP 55 protection when installed correctly, and aligns with ETIM EC000211 and ECLASS 27142421 data models, supporting consistent data across procurement and maintenance workflows. For system integrators and maintenance teams, it speeds top-mounting solutions and simplifies cable management in industrial cabinets, delivering value through repeatable assembly and fewer field adjustments.
Product Information
Extended Description
8802100 Rittal: TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1000 mm
Article number
TS 8802.100
Product description

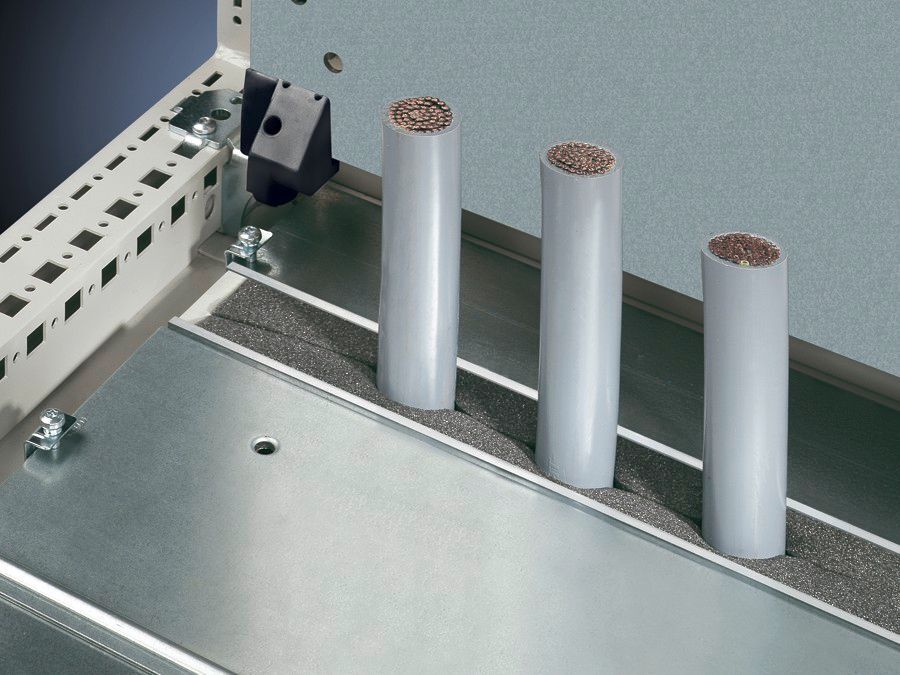

For sealing the cable entry between the gland plates.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
For top-mounting on gland plates.
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type: TS: = 1,000 mm | Enclosure type: TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.352 kg
Customs tariff number
73269098
EAN
4028177382503
ETIM 9
EC000211
ECLASS 8.0
27142421
Product description
TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1000 mm
Feature: Modular TS section design with a centre cable entry. Business impact: Enables consistent sealing of gland plate openings, reducing rework and risk of ingress. Application: Ideal for TS and TP enclosures where space is constrained and top-mounting is required, improving installation reliability and speed. Feature: Integrated foam rubber cable clamp strip (PU foam) with 30 x 25 mm cross-section. Business impact: Delivers a tight, vibration-resistant seal that maintains IP protection over the service life, lowering maintenance costs. Application: Seamless use for central cable runs between gland plates in TS/TP configurations. Feature: Extruded aluminium section construction. Business impact: Provides robust, corrosion-resistant framing that supports long-term durability in harsh industrial environments, reducing replacement cycles. Application: Suitable for top-mounting on gland plates in demanding cabinet applications. Feature: Plug-in sections supplied in packs of four; two pieces per base opening up to 800 mm. Business impact: Streamlines kit-based installation, minimizes on-site inventory, and accelerates project timelines. Application: Efficient for standard enclosure widths in 1000 mm TS and TP formats, with predictable part usage. Feature: IP protection of IP 55 when installed correctly; compatibility with TS 1,000 mm widths and TP enclosures. Business impact: Ensures reliable ingress protection, supporting compliance and reducing field rework. Application: Critical for industrial cabinets where dust and moisture ingress must be mitigated. Overall, the design aligns with ETIM EC000211 and ECLASS 27142421 data models, improving data accuracy for procurement, asset tracking, and maintenance planning, while delivering measurable ROI through faster installations and durable cable management.
Get a Quick Quote for a Rittal 8802100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802100?
Enquire Now
FAQs
TS 8802.100 is designed for top-mounting on gland plates in TS and TP enclosure families, including the TS 1,000 mm width range. It uses plug-in sections and a PU foam clamp to create a stable, sealed entry for cables, minimizing field adjustments and enabling repeatable installations.
The foam clamp strip is PU foam with a 30 x 25 mm cross-section, integrated into an extruded aluminium frame. This combination provides a tight, vibration-resistant seal that maintains IP 55 protection when installed correctly and ensures reliable cable entry in busy cabinets.
Plug-in sections are supplied in a 4-piece pack, with two pieces sufficient for base openings up to 800 mm. This standardization reduces on-site decisions, shortens assembly time, and lowers labor costs while delivering consistent sealing performance across multiple enclosures.
Yes. TS 8802.100 aligns with ETIM EC000211 and ECLASS 27142421, which supports accurate data modeling for procurement, inventory, and maintenance systems. The IP55 rating applies when correctly installed, providing reliable performance in dust and moisture-prone environments.
The solution reduces rework and field adjustments by standardizing the cable-entry seal, speeds top-mounting on gland plates, and improves long-term reliability of cable management in industrial cabinets. Packaged for ease of procurement and consistent installation, it supports faster project delivery and lower total cost of ownership.
