Rittal TS 8802.105 Cable Entry Section - IP 55
Part Number: 8802105
Quick Summary

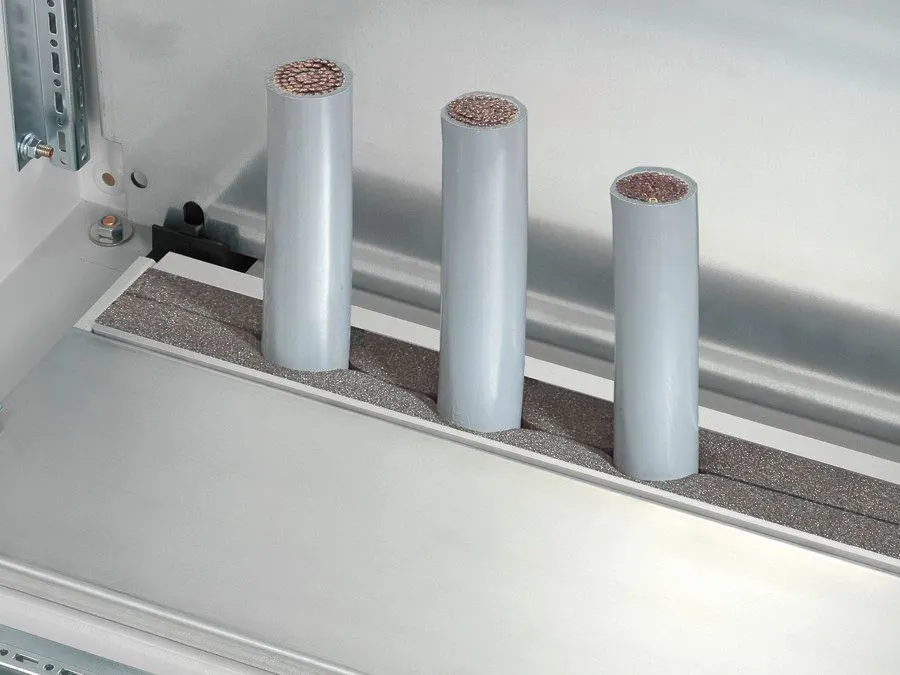

Rittal TS 8802.105 cable entry section seals cable entry at the base for TS and TP enclosures. Unsealed base openings often invite dust, moisture, and cross-section mismatches, increasing maintenance time and risk. It carries IP 55 protection when installed correctly and aligns with ETIM EC002624 and ECLASS 27189265 classifications, supporting standardization. By simplifying gasketed entry and enabling fast mounting, this module reduces commissioning time and improves cabling quality, while offering compatible seal options for identical cross-sections. Users in manufacturing environments benefit from consistent sealing, reduced rework, and easier future upgrades due to plug-in sections. Its lightweight aluminium construction also eases installation.
Product Information
Extended Description
8802105 Rittal: TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1000 mm
Article number
TS 8802.105
Product description
For sealing the cable entry at the base opening.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
Mount directly on the base opening/base tray and gland plate
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type: TS: = 1,000 mm | Enclosure type: TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.36 kg
Customs tariff number
73269098
EAN
4028177496378
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1000 mm
Feature: Foam rubber cable clamp strip with a 30 x 25 mm cross-section. Business Impact: Delivers a consistent, vibration-resistant grip that maintains seal integrity and reduces field adjustment. Application: Used at the base opening rear entry in TS, VX SE, and TP enclosures. Feature: Extruded aluminium section provides a rigid frame. Business Impact: Improves mounting stability and maintains IP performance under dynamic loads. Application: Compatible with base openings and gland plates for long-term reliability. Feature: Seals at base opening enabling IP 55 when installed correctly. Business Impact: Protects against dust and moisture, lowering maintenance and long-term moisture risk. Application: Mount directly on base opening/base tray and gland plate. Feature: Plug-in sections included. Business Impact: Speeds installation and reduces on-site adaptation; supports scalable width. Application: Suitable for base openings up to 800 mm, requiring two pieces. Feature: Packs of four per order; weight per pack 0.36 kg. Business Impact: Streamlines stocking and logistics, lowering purchasing costs. Application: Bulk buys for projects using TS 1000 mm widths. Feature: To fit enclosure types TS = 1,000 mm and TP. Business Impact: Ensures compatibility with standard Rittal portfolios, reducing extra part numbers. Application: Useful for mid- to large-scale cabinet installations. Feature: IP protection and installation guidance. Business Impact: Provides reliable, repeatable sealing outcomes with clear assembly instructions. Application: Applies to base openings with gland plates and base trays in TS/TP lines. Feature: General compatibility with standard base openings. Business Impact: Enables quick retrofits and scalable solutions across multiple enclosure families. Application: Ideal for upgrades and new builds in industrial automation environments.
Get a Quick Quote for a Rittal 8802105
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802105?
Enquire Now
FAQs
TS 8802.105 is designed specifically for rear-entry cable management on Rittal TS and TP enclosure families. It mounts directly onto the base opening or base tray and gland plate, using plug-in sections that align with 1,000 mm TS and TP widths. The unit ships in packs of four and includes a 30 x 25 mm foam clamp strip for uniform cable support, ensuring consistent compatibility across standard base openings.
Begin by locating the base opening on the TS or TP enclosure. Install the plug-in sections on opposite sides as needed, ensuring the 30 x 25 mm foam clamp strip seats firmly. Connect the sections to form a continuous seal around the base opening/base tray, then verify the gland plate alignment and check that the IP 55 rating is achieved with proper seating.
Yes. The foam clamp strip is designed for cables with identical cross-sections, providing a uniform clamp and predictable sealing performance. This reduces cross-sectional variation, minimizes gaps, and simplifies future cable changes. It is particularly effective in installations where multiple cables share the same gauge and routing path, improving reliability and reducing rework.
TS 8802.105 aligns with ETIM 9 EC002624 and ECLASS 8.0 27189265, ensuring standardized data and classification for procurement. The IP 55 rating applies when installed correctly, delivering dust and moisture protection for base-entry seals. The product also carries the associated EAN 4028177496378 for traceability and cataloging in industrial procurement systems.
By delivering a reliable, plug-in sealing solution, maintenance intervals are extended due to reduced ingress risk and fewer reworks. Fast installation lowers commissioning time, while standardized cross-sections simplify future upgrades. The modular 4-pack and 0.36 kg per pack support streamlined stocking and project logistics, contributing to a favorable total cost of ownership in cabinet ecosystems.
