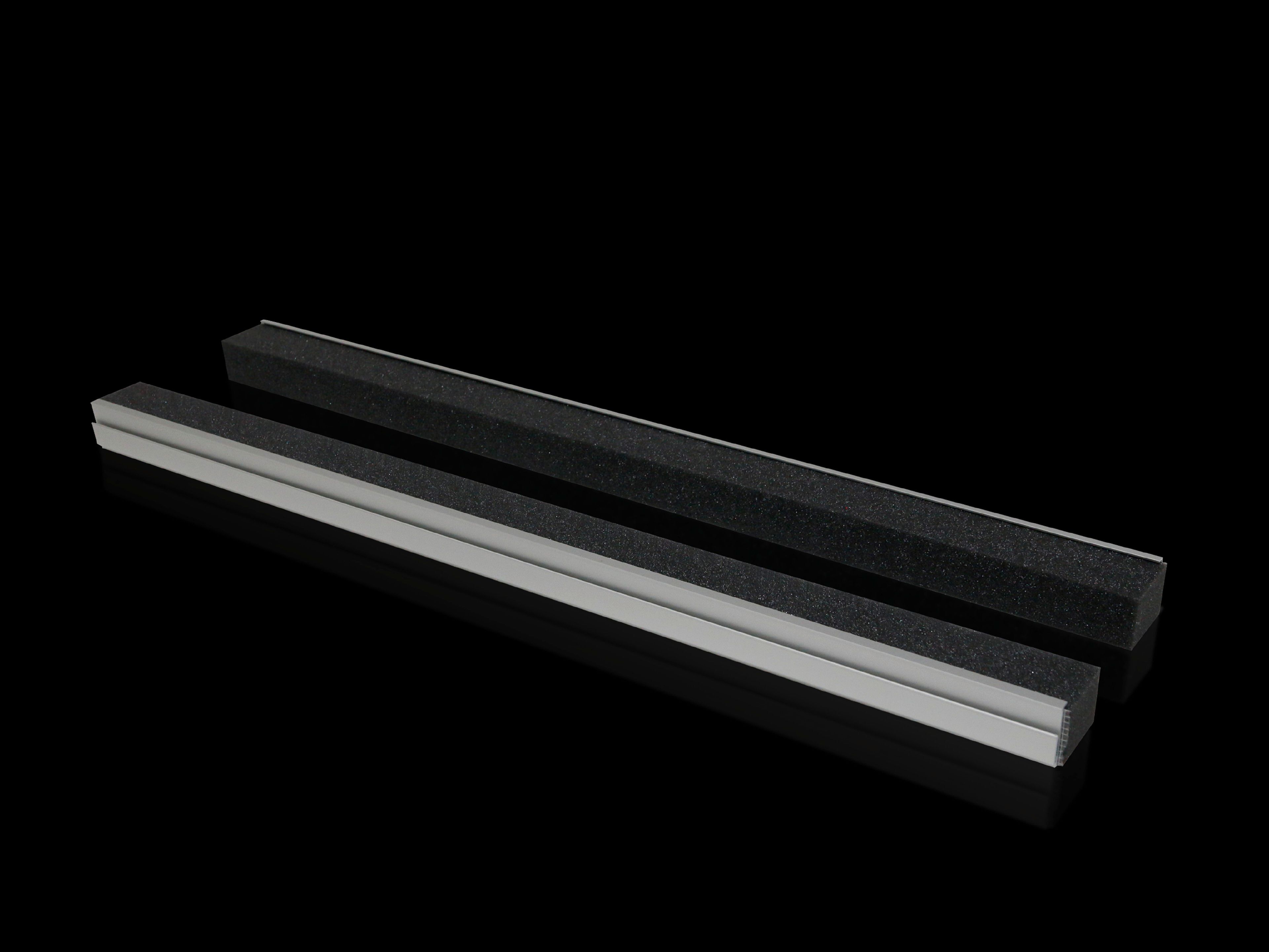

Rittal 8802120 TS Section Cable Entry - IP55, top-mounting
Part Number: 8802120
Quick Summary
TS 8802.120 is a top-mounting TS section that seals the cable entry between gland plates. Engineers often face enclosure leaks or misalignment when sealing multiple cables with identical cross-sections. IP55 protection is achieved with correct installation, while ETIM EC000211 and ECLASS 27142421 classifications support procurement consistency. This solution delivers reliable sealing for 1200 mm TS/TP enclosures and simplifies install workflows, reducing rework. By integrating compatible foam-clamp strips and plug-in sections, it enables fast, repeatable assembly and scalable growth for panel builders and OEMs.
Product Information
Extended Description
8802120 Rittal: TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1200 mm
Article number
TS 8802.120
Product description
For sealing the cable entry between the gland plates.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
For top-mounting on gland plates.
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type:Â TS:Â = 1,200 mm | Enclosure type:Â TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.432 kg
Customs tariff number
73269098
EAN
4028177382510
ETIM 9
EC000211
ECLASS 8.0
27142421
Product description
TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1200 mm
Feature → Top-mounting on gland plates reduces installation time and simplifies alignment. Business impact → Shorter commissioning and fewer rework instances translate to lower on-site costs. Application → Suited for TS and TP enclosures up to 1200 mm, enabling scalable wiring layouts. Feature → Foam rubber clamp strip with cross-section 30 x 25 mm provides a compliant seal. Business impact → Delivers reliable IP55 sealing even with densely packed cables and identical cross-sections. Application → Used with the extruded aluminium section to form a complete, plug-in cable-entry solution. Feature → Extruded aluminium section paired with PU foam results in a durable, light-weight frame. Business impact → Improves mechanical stability and supports efficient assembly in factory lines. Application → Compatible with Versa systems TS VX SE, TP as per product notes. Feature → Plug-in sections and foam clamp strip included in supply. Business impact → Reduces procurement complexity and minimizes additional components. Application → Packs of four enable cost-effective stocking and quick scaling across multiple openings (2 pcs per base opening up to 800 mm). Feature → IP55 protection rating when installed correctly. Business impact → Meets enclosure protection standards, protecting internal components from dust and moisture. Application → Particularly suited for top-mounting on gland plates in harsh industrial environments.
Get a Quick Quote for a Rittal 8802120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802120?
Enquire Now
FAQs
TS 8802.120 is designed for TS and TP enclosure families, specifically featuring a top-mounting capability for gland plates on 1200 mm wide units. It ships as plug-in sections with a PU foam clamp strip and is supplied in packs of four, making it suitable for multiple openings and scalable installations in mid-size to large panels.
The seal is provided by a foam rubber clamp strip (PU foam) with a cross-section of 30 x 25 mm, mounted in an extruded aluminium frame. This combination delivers a flexible, durable seal that maintains IP55 when installed correctly, even with identical cross-section cables in dense entries.
For one base opening up to 800 mm, two pieces are sufficient. For greater widths or additional entries, multiple sections can be installed in sequence. The 1200 mm TS/TP enclosure compatibility supports scalable configurations, reducing the need for custom sealing solutions.
The product supports IP55 protection when installed correctly and aligns with industry classifications such as ETIM EC000211 and ECLASS 27142421. The article TS 8802.120 also corresponds to the provided EAN 4028177382510 for procurement and cataloging consistency.
Plug-in sections plus a pre-fitted foam clamp simplify on-site assembly, reducing labor time and rework. Packs of four enable efficient stocking, while the top-mounting design minimizes gland-plate modification. Overall, faster installations, predictable sealing performance, and scalable configurations translate to reduced operating costs and faster time-to-production for panel builders and OEMs.
