Rittal 8802125 TS Section for Cable Entry - IP55
Part Number: 8802125
Quick Summary
Rittal 8802125 TS Section for Cable Entry seals the base opening on TS and TP enclosures, enabling reliable, clean cable ingress for 1200 mm-wide systems. End users often struggle with inconsistent gaps and moisture ingress when wiring enclosure bases, which leads to rework and downtime. The solution provides IP55 protection when installed correctly and aligns with standard classifications such as ETIM EC002624 and ECLASS 27189265, supporting streamlined procurement and maintenance. By delivering a robust, modular sealing interface, it reduces field installation complexity, improves reliability in harsh environments, and accelerates project timelines. This keeps downstream manufacturing and data-center deployments operating at higher efficiency with fewer warranty calls.
Product Information
Extended Description

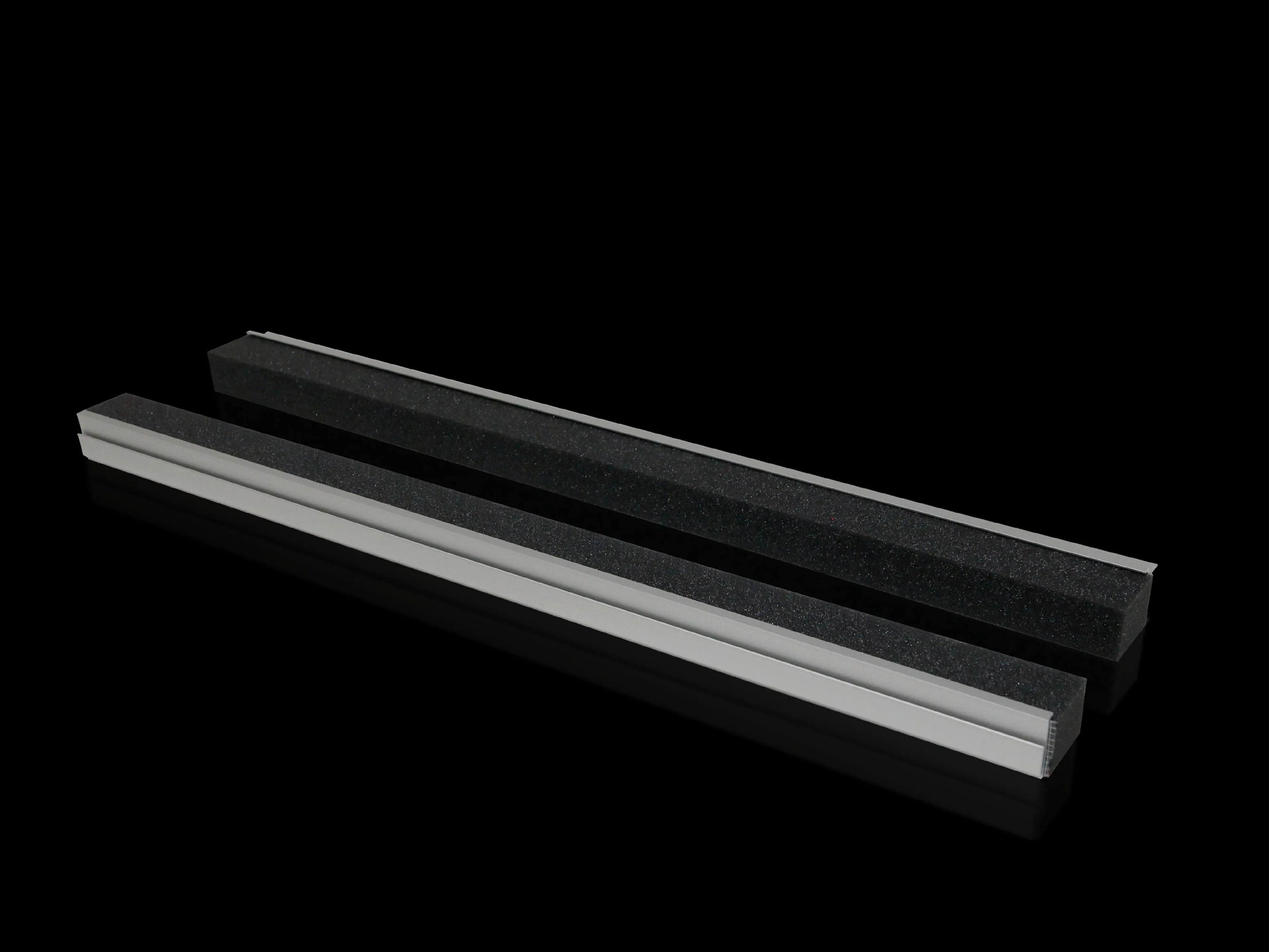

8802125 Rittal: TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1200 mm
Article number
TS 8802.125
Product description
For sealing the cable entry at the base opening.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
Mount directly on the base opening/base tray and gland plate
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type: TS: = 1,200 mm | Enclosure type: TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.432 kg
Customs tariff number
73269098
EAN
4028177496385
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1200 mm
Feature: Foam rubber clamp strip with a 30 x 25 mm cross-section; Business Impact: Delivers a tight, uniform seal around cable entries, reducing ingress risk and service calls; Application: Ideal for TS base openings and gland plates where identical cross-sections are used. Feature: Extruded aluminium section providing structural support; Business Impact: Enables secure mounting directly on the base opening/base tray, minimizing additional hardware and labor; Application: Fits TS and TP enclosure families for 1200 mm widths. Feature: IP55 protection when installed correctly; Business Impact: Ensures reliable operation in dusty or damp environments, lowering risk of equipment damage; Application: Suitable for external or semi-exposed installations. Feature: Supply includes plug-in sections; Business Impact: Simplifies installation workflow and reduces assembly time; Application: Optimizes setup in production lines with frequent configuration changes. Feature: 4 packs per carton and weight 0.432 kg per pack; Business Impact: Improves inventory planning and reduces freight costs; Application: Efficient procurement for multiple bas openings in large facilities. Feature: Compatibility with TS 1,200 mm and TP enclosure types; Business Impact: Broadens applicability, reducing part variety and stocking requirements; Application: Supports a wide range of Rittal enclosures in factory floors and data centers.
Get a Quick Quote for a Rittal 8802125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802125?
Enquire Now
FAQs
Installation requires mounting the aluminium section directly on the base opening or base tray, then seating the PU foam clamp strip (30 x 25 mm cross-section) into the groove. Use the supplied plug-in sections to cover the base opening and secure with standard hardware. When correctly assembled, IP55 protection is achieved, protecting cables from dust and moisture.
The product features an extruded aluminium section with a foam rubber clamp strip of 30 x 25 mm. The supply includes plug-in sections and the weight is 0.432 kg per pack, with packs of four. Compatible with TS and TP enclosures, it is designed for base-entry sealing at 1200 mm widths.
For a single base opening up to 800 mm wide, two plug-in sections are typically sufficient to seal effectively. The packaging specifies packs of four, which supports multiple base openings or future expansion, reducing install time for larger projects.
IP55 is achieved when the TS 8802125 is installed per the mounting guidelines, ensuring a proper seal against dust and water jets. Align the seal with the base opening and gland plate, use the correct number of plug-in sections, and avoid gaps or misalignment that could compromise protection.
This section is designed for TS and TP enclosures with 1200 mm widths, providing a standardised sealing interface and compatibility with base trays and gland plates. The inclusion of ETIM EC002624 and ECLASS 27189265 classification improves procurement visibility, while plug-in sections simplify stocking and installation, reducing field downtime.
