Rittal TS 8802.160 Cable Entry Section - IP55
Part Number: 8802160
Quick Summary
Rittal TS 8802.160 is a cable entry section designed for top-mounting on gland plates in TS/TP enclosure systems. This accessory addresses common sealing and cross-section compatibility challenges when routing multiple cables through panels. It delivers IP 55 protection when installed correctly and aligns with industry classifications such as ETIM EC000211 and ECLASS 27142421 to streamline procurement. By combining a PU foam clamp strip with an extruded aluminium section, it accelerates installation and reduces field rework, while supporting cables with identical cross-sections and ensuring robust enclosure integrity for demanding environments.
Product Information
Extended Description
8802160 Rittal: TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1600 mm
Article number
TS 8802.160
Product description

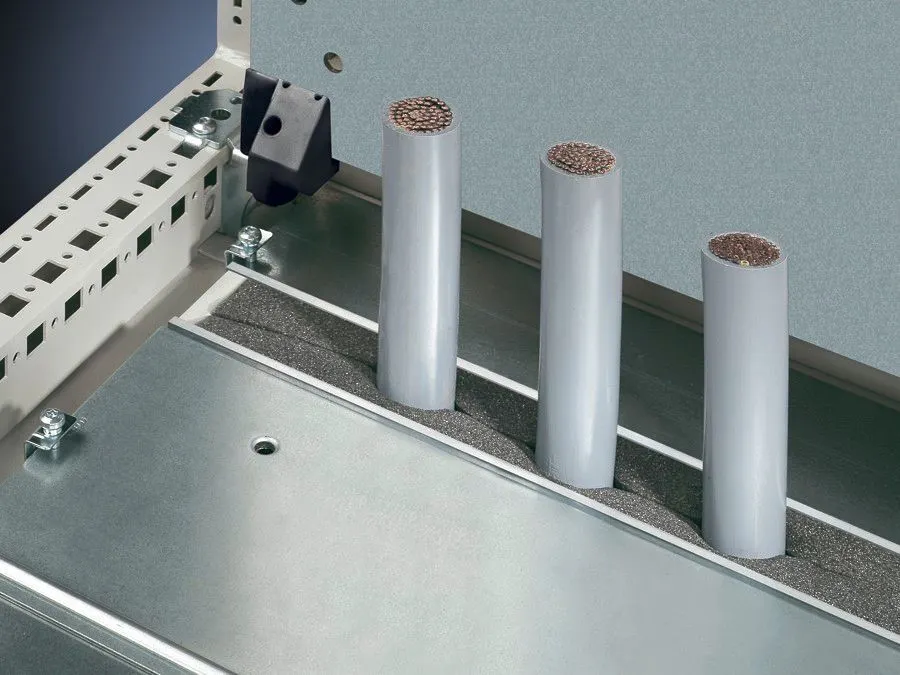

For sealing the cable entry between the gland plates.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
For top-mounting on gland plates.
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type: TS: = 1,600 mm | Enclosure type: TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.618 kg
Customs tariff number
73269098
EAN
4028177556829
ETIM 9
EC000211
ECLASS 8.0
27142421
Product description
TS Section for cable entry, centre, for TS, VX SE, TP, for W: 1600 mm
Feature: Foam rubber cable clamp strip with cross-section 30 x 25 mm → Business Impact: Reliable sealing and consistent cable presentation reduce ingress risk and maintenance costs; Application: Ideal for top-mounting on gland plates in TS/TP enclosures, including identical cross-section cables. Long-tail keywords: cable entry seal, PU foam clamp, gland plate sealing, TS enclosure accessories. Feature: Extruded aluminium section housing → Business Impact: Structural rigidity improves enclosure integrity under vibration and thermal cycling; Application: Fits TS, VX SE, TP families for reinforced cable entry. Feature: Pack includes plug-in sections → Business Impact: Faster assembly and simpler stocking (4 pcs per pack) reducing labour time; Application: Efficient for base openings up to 800 mm width. Feature: IP 55 protection when installed correctly → Business Impact: Compliance with ingress protection reduces field rectifications; Application: Essential for controlled environments. Feature: Clear supply details and compatibility → Business Impact: Simplifies procurement and reduces misfit risk; Application: Works with TS and TP enclosure widths including 1,600 mm channel.
Get a Quick Quote for a Rittal 8802160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802160?
Enquire Now
FAQs
TS 8802.160 is designed for TS and TP enclosure families and supports center cable entry when top-mounted on gland plates. It also accommodates VX SE variants, ensuring a unified sealing solution across the TS/TP ecosystem. This compatibility helps standardize components across projects and reduces the risk of interface gaps.
The clamp strip uses PU foam in a 30 x 25 mm cross-section to form a tight, uniform seal around entering cables. This minimizes gaps where dust and moisture could penetrate, improving ingress protection. The foam compresses evenly, allowing for consistent sealing performance even with cables of identical cross-section.
IP 55 protection is achieved when TS 8802.160 is installed correctly within the gland plate area, with the plug-in sections fully engaged. Ensure the enclosure is assembled per Rittal guidelines and that no gaps exist between components. For larger widths, remember that two pieces are sufficient for one base opening up to 800 mm, aiding proper fitment.
Yes. The design emphasizes sealing efficiency for cables with identical cross-sections, providing predictable compression and consistent protection across the entry area. This is especially beneficial in control panels with standardized bundles, reducing variation in sealing performance and simplifying maintenance.
The kit ships as packs of four pieces, with a weight per pack of about 0.618 kg. It includes plug-in sections and the PU foam clamp strip. The product is listed under EAN 4028177556829 and customs tariff number 73269098, with ETIM EC000211 and ECLASS 27142421 classifications to aid cataloging and purchasing.
