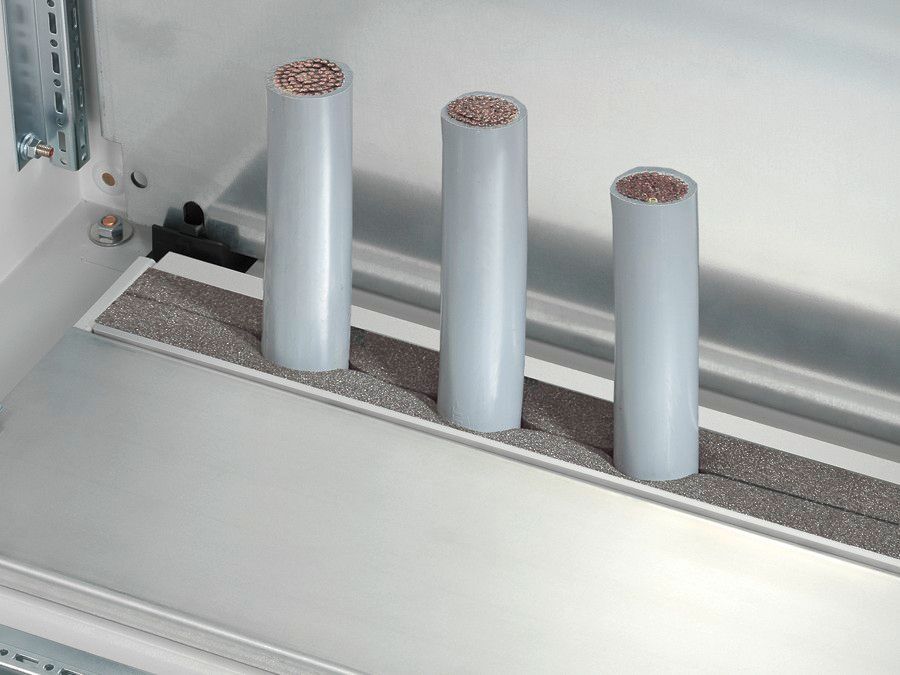

Rittal TS 8802165 TS Section for Cable Entry - IP 55
Part Number: 8802165
Quick Summary
Rittal TS 8802165 enables cable entry sealing at the base opening for TS and TP enclosures. This design minimizes ingress points and simplifies retrofits when cables share identical cross-sections. It delivers IP 55 protection when installed correctly and aligns with ETIM EC002624 and ECLASS 27189265 data standards for sourcing. For OEMs and integrators, this accessory offers reliable sealing with straightforward installation, improving enclosure integrity, reducing gland plate modifications, and supporting scalable cable management across 1600 mm wide TS/TP configurations.
Product Information
Extended Description
8802165 Rittal: TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1600 mm
Article number
TS 8802.165
Product description
For sealing the cable entry at the base opening.
Benefits
Particularly well-suited to cables with identical cross-sections
Technical specifications
Foam rubber cable clamp strip: Cross-section: 30 x 25 mm
Applications
Mount directly on the base opening/base tray and gland plate
Material
Extruded aluminium section | Foam rubber cable clamp strip: PU foam
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Note
2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm
To fit
Enclosure type: TS: = 1,600 mm | Enclosure type: TP
IP protection category to IEC 60 529
IP 55 if installed correctly
Packs of
4 pc(s).
Weight/pack
0.596 kg
Customs tariff number
73269098
EAN
4028177556836
ETIM 9
EC002624
ECLASS 8.0
27189265
Product description
TS Section for cable entry, rear, for TS, VX SE, TP, for W: 1600 mm
Feature: Foam rubber clamp strip with a 30 x 25 mm cross-section. Benefit: Provides a tight, uniform seal around cables of identical cross-sections, reducing ingress paths and improving seal reliability. Application: Mount directly on the base opening/base tray and gland plate for a clean, rugged entry point. Feature: Extruded aluminium section paired with PU foam clamp. Benefit: Combines mechanical strength with compliant cushioning to absorb vibration and maintain seal integrity in harsh environments. Application: Suitable for long-term use in industrial cabinets where durability and consistent performance matter. Feature: Supplied as plug-in sections (pack of 4) with clamp included. Benefit: Enables quick, modular installation with fewer parts, reducing installation time and labour costs. Application: Ideal for modular TS/TP enclosures and serviceable base openings. Feature: IP protection rated IP 55 (when installed correctly). Benefit: Delivers reliable protection against dust and water ingress, supporting compliance in challenging environments. Application: Critical for base-entry seals in factory floors and outdoor or damp locations. Feature: Compatibility with TS and TP enclosure types up to 1,600 mm width. Benefit: Simplifies procurement and stocking for multi-model installations, reducing complexity in configuration. Application: Fits TS enclosures up to 1,600 mm and TP variants without custom fabrication.
Get a Quick Quote for a Rittal 8802165
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802165?
Enquire Now
FAQs
To install, mount the plug-in sections on the base opening or gland plate, align the 30×25 mm foam clamp strip with the enclosure edge, and press until seated. Use two sections for smaller openings and add more as needed to cover the full width up to 1,600 mm. Ensure clean, dry surfaces for a reliable seal.
The assembly provides IP55 protection when installed correctly, offering robust ingress resistance against dust and water. The rating assumes proper mounting on the base opening and correct gasket seating, making it suitable for typical industrial environments.
This TS section is designed for TS and TP enclosure types, supporting base openings up to 1,600 mm in width. It is specified for mounting directly on the base opening or base tray and gland plate, streamlining integration with TS/TP families.
The system uses an extruded aluminium section with a PU foam clamp strip. The clamp cross-section is 30 × 25 mm, providing a durable, uniform seal around similarly sized cables and enabling reliable, vibration-resistant performance.
Using the four-piece pack reduces parts handling and installation time, delivering a cost-effective seal solution. The modular plug-in design simplifies upgrades for different base opening widths, lowers the risk of leaks, and supports faster commissioning of TS/TP enclosures with consistent sealing across identical cable runs.
