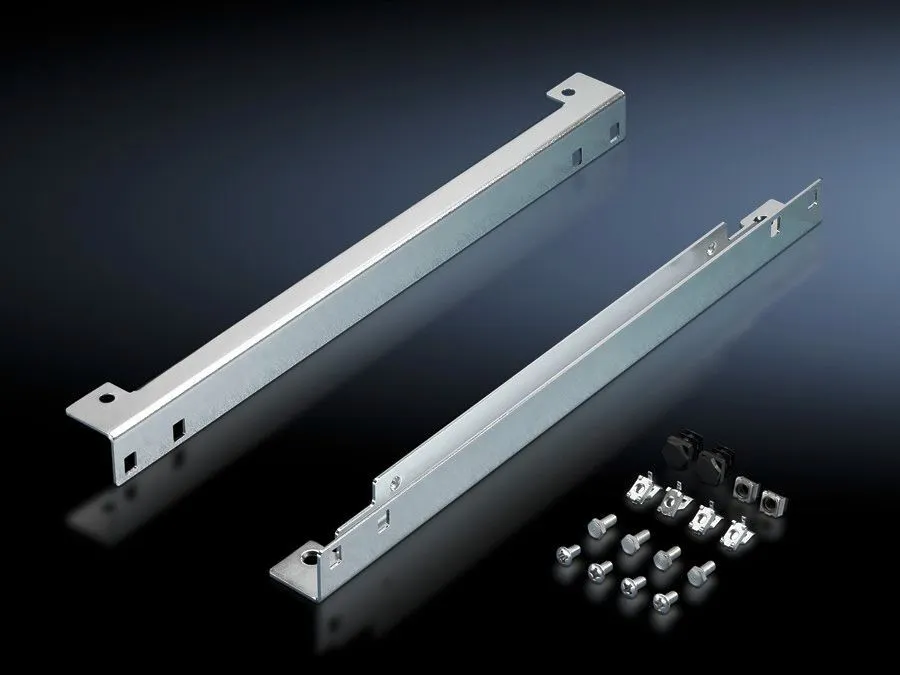

Rittal TS 8802.220 Slide Rail - Depth-adjustable 25 mm pitch
Part Number: 8802220
Quick Summary
Rittal TS 8802.220 Slide Rail is a side-mounting rail for TS enclosures. Installing mounting rails in enclosures with variable depths can be fiddly; this design delivers depth-adjustable mounting with a precise 25 mm pitch. ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications support procurement integration, while the sheet steel, zinc-plated finish provides long-term corrosion resistance. With a 1,200 mm width, it fits standard TS frames, and assembly parts are included to speed up installation—reducing labor and commissioning time. For teams managing modular cabinets or retrofits, this rail offers scalable, repeatable mounting performance that improves consistency across installations.
Product Information
Extended Description
8802220 Rittal: TS Slide rail, for mounting plate TS, for W: 1200 mm
Article number
TS 8802.220
Product description
For inserting the mounting plates from the side.
Applications
With enclosure depth 400 mm, a mounting depth of 105 - 330 mm is supported
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Mounting of the slide rails directly on the enclosure frame, depth-adjustable on a 25 mm pitch pattern
To fit
Enclosure type: TS | Width: = 1,200 mm
Packs of
2 pc(s).
Weight/pack
5.6 kg
Customs tariff number
73269098
EAN
4028177494954
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS Slide rail, for mounting plate TS, for W: 1200 mm
Feature: Depth-adjustable slide rail with 25 mm pitch. Business Impact: Simplifies mounting plate alignment across TS enclosure depths, reducing setup time and risk of misalignment. Application: Ideal for W 1200 mm TS enclosures where mounting depth varies between 105 and 330 mm. Feature: Sheet steel construction with a zinc-plated finish. Business Impact: Delivers robust durability and corrosion resistance in harsh industrial environments, lowering maintenance frequency and cost. Application: Suitable for food, chemical, and manufacturing environments where enclosure components are exposed to dust and moisture. Feature: Installation options include direct mounting on the enclosure frame. Business Impact: Accelerates installation and minimizes accessory procurement, improving first-pass installation reliability. Application: Speedy retrofits and modular cabinet programs. Feature: Pack integrity and handling benefits. Business Impact: Two-piece packs with a total weight of 11.2 kg per carton enable straightforward logistics and stock management. Application: OEM assembly lines and field deployments where inventory turns matter. Feature: Specific compatibility with TS enclosures and 1,200 mm width. Business Impact: Ensures consistent fit and predictable performance for standard TS cabinet configurations. Application: Systems integrators and distributors seeking repeatable mounting solutions across multiple sites.
Get a Quick Quote for a Rittal 8802220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8802220?
Enquire Now
FAQs
Install the rail directly on the enclosure frame, using the depth-adjustable 25 mm pitch pattern. The mounting depth range is 105–330 mm, and the package includes all necessary assembly parts. Align rails for symmetrical plate mounting and verify 1,200 mm enclosure width compatibility before final tightening.
Yes. The TS 8802.220 is designed to fit enclosure type TS with a width of 1,200 mm. It supports mounting plates and side insertion in W 1200 TS frames, and the included parts simplify integration during upgrades or new builds.
The rail is manufactured from sheet steel and features a zinc-plated surface finish. This combination provides structural strength and corrosion resistance suitable for demanding industrial environments, supporting long service life with low maintenance.
The rail ships in packs of two, with a weight of 5.6 kg per pack, totaling 11.2 kg per carton. This packaging supports straightforward handling, efficient warehouse storage, and streamlined logistics for OEMs and distributors.
Key benefits include fast mounting, depth-adjustable positioning, and durable construction for side-mounting plates in TS enclosures. Typical use cases include modular cabinet upgrades, retrofits, and new builds where 1200 mm-wide TS frames require reliable, repeatable side mounting solutions and minimal installation effort.
