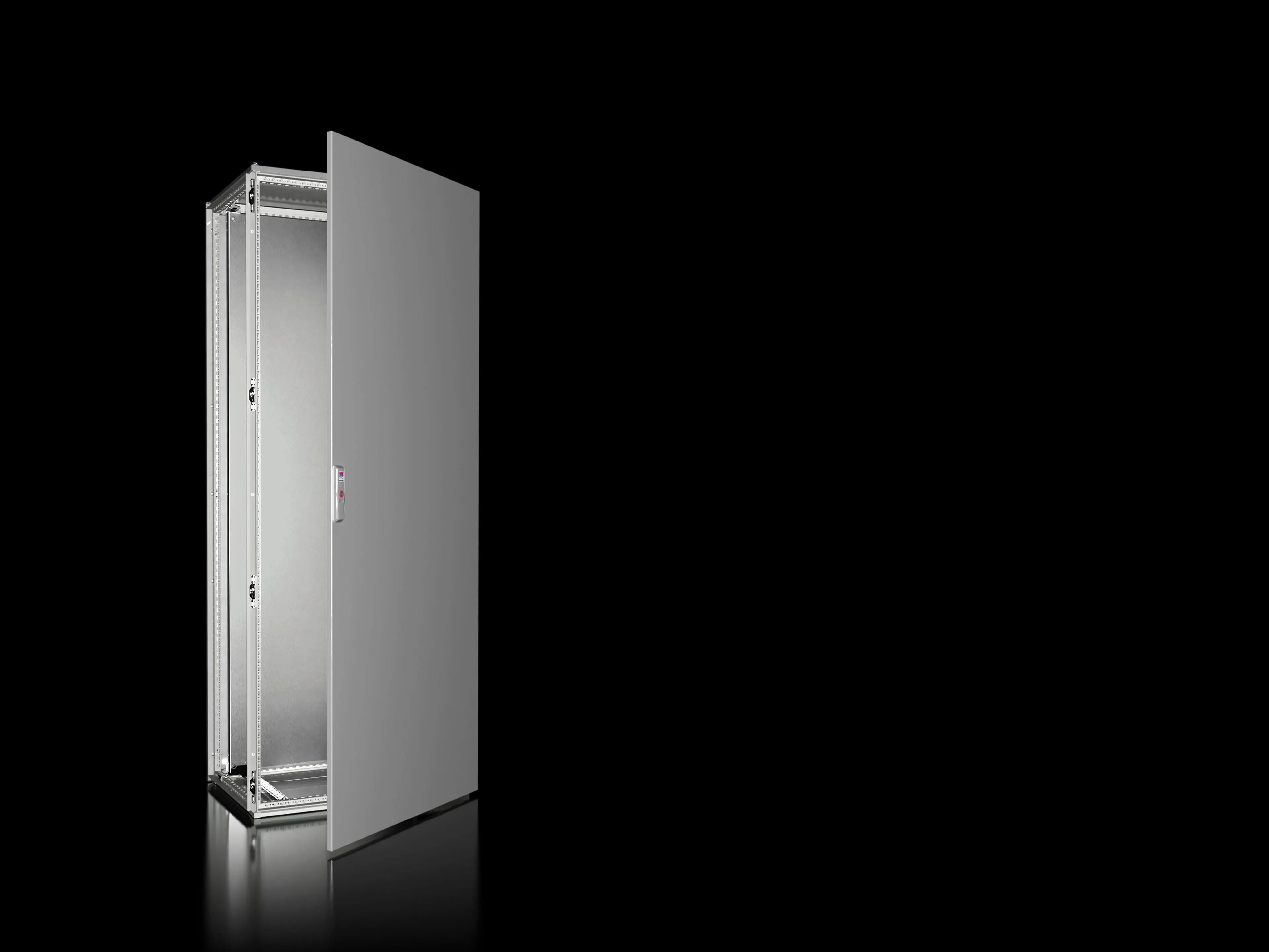

Rittal VX 8805.000 Enclosure - IP55
Part Number: 8805000
Manufacturer
Rittal
Part number
8805000
Alt Part Number
VX 8805.000
Quick Summary
Rittal VX 8805.000 Enclosure is a rugged, ready-to-install interior housing for industrial control panels. Engineers and technicians often wrestle with time-consuming interior mounting and misaligned components during panel assembly. This enclosure delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 compliance, enabling reliable operation in demanding environments. With a dip-coated frame, powder-coated exterior, and zinc-plated gland plates, it reduces maintenance needs and extends service life. The standard 800x2000x500 mm footprint, mounting plate, and swap-ready door orientation (hinged on the right, left option available) speed installation and simplify procurement for OEMs and end users.
Product Information
Extended Description
8805000 Rittal: VX Baying enclosure system, WHD: 800x2000x500 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8805.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
122 kg
PCF per pack (cradle-to-gate)
300.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813830
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x2000x500 mm, sheet steel, with mounting plate, single door at the front
Feature: 800x2000x500 mm sheet steel enclosure frame provides a rigid housing that resists vibration and harsh conditions. Business Impact: Reduced panel misalignment and improved long-term durability, enabling consistent performance in automated lines. Application: Ideal for control cabinets in machine automation across manufacturing environments. Feature: Material thickness and finishes – frame 1.5 mm, door 2.0 mm, mounting plate 3.0 mm; surface finish includes dipcoat-primed frame, powder-coated exterior, and zinc-plated gland plates. Business Impact: Enhanced corrosion resistance and lower maintenance costs over the life of the cabinet. Application: Harsh, dusty, or humid environments where enclosure longevity matters. Feature: Protection ratings IP55, NEMA 1, IK10; UL 50E Type 1. Business Impact: Ensures regulatory compliance and safe operation in demanding industrial settings, reducing downtime due to enclosure failures. Application: Industrial automation cabinets requiring standards alignment. Feature: Inclusive hardware and flexible door orientation – 2 punched rails 18x39 mm; door hinged on the right with left-hand swap option; mounting plate dimensions 699x1896 mm. Business Impact: Faster wiring, easier interior reconfiguration, and adaptable layouts for retrofit projects. Application: OEM line builds and facility upgrades. Feature: Weight and environmental data – weight 122 kg per pack; PCF 300.6 kg CO2 eq (Cat B). Business Impact: Informed shipping and lifecycle planning; supports ESG reporting and packaging decisions. Application: Project scoping and supplier selection for large enclosures.
Get a Quick Quote for a Rittal 8805000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8805000?
Enquire Now
FAQs
VX 8805.000 provides a mounting plate sized 699x1896 mm and two punched rails 18x39 mm, enabling flexible interior layouts. The right-hinged door can be swapped to left, simplifying retrofits. This configuration supports standard industrial components, reduces wiring complexity, and accelerates commissioning in panel assembly projects.
The enclosure offers IP55 protection, IK10 impact resistance, and UL 50E Type 1 with NEMA 1 compatibility. It uses a sheet steel construction with a dip-coated/ powder-coated finish and zinc-plated gland plates, aligning with IEC and UL requirements for reliable operation in demanding environments.
Yes. With IP55 ingress protection, a robust sheet steel build, and corrosion-protective finishes, the VX 8805.000 is designed for dusty, humid, and vibration-prone settings. The IK10 rating further ensures impact resistance, making it appropriate for factory floors, machines, and lines where reliability is critical.
The enclosure conforms to UL 50E Type 1, NEMA 1, and IEC protection classes (IP55) and IK10. It also carries ETIM 8.0/7.0 and ECLASS 8.0 classifications, supporting procurement and technical data standardization for industrial automation projects.
Its durable powder-coated exterior, zinc-plated gland plates, and standardized interior hardware reduce maintenance intervals and spare-part complexity. The modular mounting plate and fixed dimensions accelerate installation, minimize field adjustments, and lower lifecycle costs while delivering predictable performance in automation cabinets.
