Rittal VX 8806.450 Enclosure - C4-H IP55 IK10
Part Number: 8806450
Manufacturer
Rittal
Part number
8806450
Alt Part Number
VX 8806.450
Quick Summary
Rittal VX 8806.450 Enclosure provides robust cabinet space for control gear in industrial facilities. Engineers often struggle with corrosion, cramped interiors, and time-consuming installations in harsh environments. With a C4-H corrosion protection class, IP55 ingress protection, and IK10 impact resistance, this enclosure meets demanding industry standards. Our approach focuses on quick interior installation, reliable protective coatings, and scalable VX baying compatibility, delivering tangible value to OEMs and system integrators. The included mounting plate, gland plates, and punched rails streamline panel assembly, while the textured finish reduces maintenance, supporting cost-efficient upgrades in factory automation projects.
Product Information
Extended Description

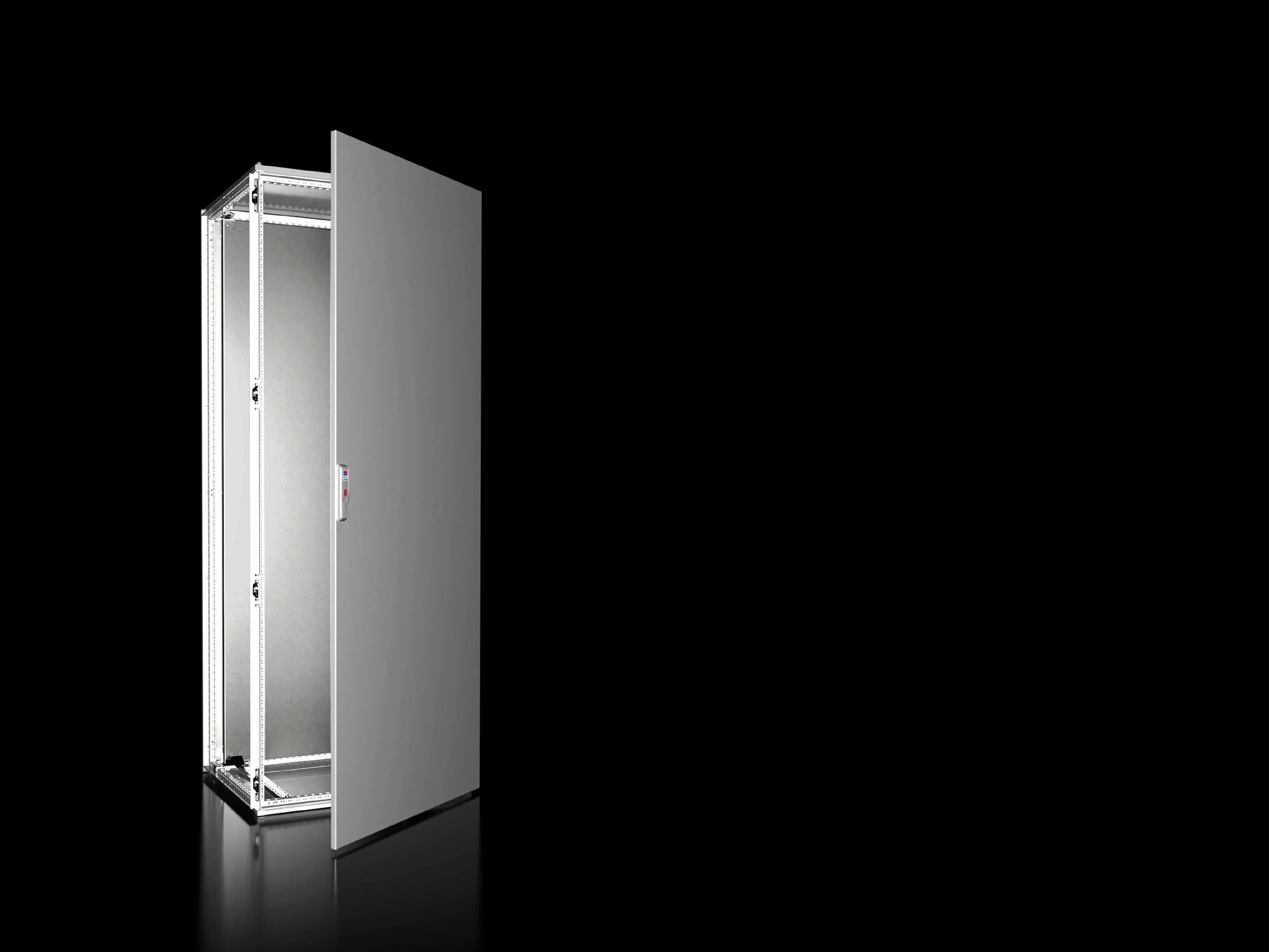

8806450 Rittal: VX baying enclosure system C4-H, WxHxD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8806.450
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Zinc-magnesium and powder coating | Door, roof and rear panel: Powder-coated, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
EAN
4028177993563
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX baying enclosure system C4-H, WxHxD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Feature: C4-H corrosion protection on the enclosure surface → Business Impact: extends service life in aggressive environments, lowers maintenance costs → Application: outdoor or exposed industrial installations where moisture, salt spray, or humidity are present. Feature: Sheet steel construction with a robust 1.5–2.0 mm gauge (door 2.0 mm) → Business Impact: higher durability and safer interior mounting for long-term reliability → Application: heavy-use control cabinets in manufacturing lines and utilities. Feature: Complete interior kit including mounting plate, rear panel, gland plates, and 2 punched rails → Business Impact: accelerates installation and reduces part counts → Application: quick deployment of PLCs, drives, and I/O modules within standardized VX bays. Feature: Door hinged on the right and swappable to the left → Business Impact: installation flexibility in tight or limited-access spaces → Application: modular plant layouts requiring adaptable enclosure orientation. Feature: IP 55 protection and IK10 impact resistance → Business Impact: protects critical electrical components from dust, water ingress, and mechanical damage → Application: machine rooms, skids, and outdoor enclosures where rugged performance is essential. Feature: Surface finish with zinc–magnesium coating and powder coating in RAL 7035 → Business Impact: low-maintenance cosmetics and durable color stability → Application: long-term appearance retention in busy industrial environments.
Get a Quick Quote for a Rittal 8806450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8806450?
Enquire Now
FAQs
Yes. The door is hinged on the right by default but can be swapped to the left, facilitating layout flexibility in compact or congested panels without requiring additional parts.
Yes. The enclosure carries a UL 50E Type 1 rating, confirming its suitability for electrical installations in US environments and enabling compliant wiring, mounting, and enclosure protection within standard panel systems.
It includes a mounting plate sized 699 mm by 1,896 mm, plus two punched rails (18 x 39 mm), a rear panel, gland plates, and a full front-door assembly, enabling flexible component layout and straightforward retrofits.
It provides IP 55 ingress protection and IK10 impact resistance, safeguarding internal components from dust, water ingress, and mechanical shocks typical in manufacturing and outdoor facilities.
The enclosure uses sheet steel with zinc–magnesium and powder coating on the frame, plus powder-coated interior panels; color is RAL 7035, ensuring durability and reduced maintenance over time.
