Rittal VX 8807.000 Enclosure System - IP66/NEMA4
Part Number: 8807000
Manufacturer
Rittal
Part number
8807000
Alt Part Number
VX 8807.000
Quick Summary
Rittal VX 8807.000 Enclosure System protects critical automation and electrical gear in harsh industrial environments. This robust solution addresses moisture, dust, and impact that can disrupt operations and drive maintenance costs. It meets key protections including IP66 (IEC 60529) and NEMA 4 sealing, with UL 50E Type 1 recognition for electrical enclosure reliability. The durable, textured powder-coated surface in RAL 7035 supports global deployments and long service life. For global projects, its compatibility with standard mounting plates and rails simplifies scale-up, while delivering consistent performance across facilities and supply chains.
Product Information
Extended Description

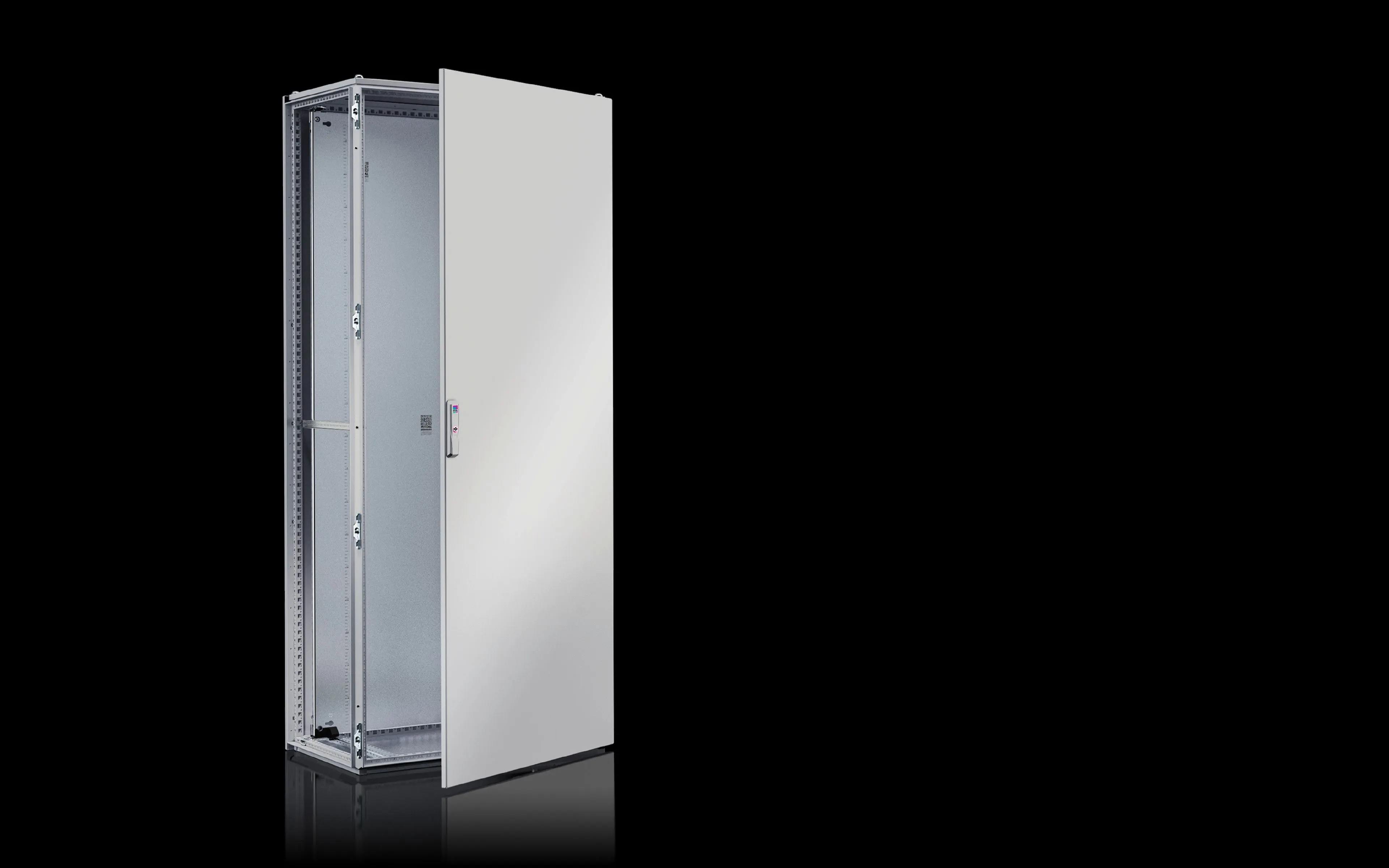

8807000 Rittal: VX Baying enclosure system IP66 / NEMA4, WHD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8807.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame, door, roof and rear panel: Dipcoat-primed and powder-coated, textured paint
Colour
RAL 7035
Supply includes
Enclosure frame | Door | Door hinged on the right, may be swapped to the left | Roof plate | Base | Rear panel | Mounting plate | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
140 kg
PCF per pack (cradle-to-gate)
344.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177924543
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system IP66 / NEMA4, WHD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front
Feature The VX 8807.000 uses a sheet steel enclosure frame and doors with a dipcoat-primed and powder-coated finish, delivering a tough, corrosion-resistant housing. → Business Impact The durable coating reduces maintenance cycles and repainting costs, extending component life in outdoor or harsh indoor settings. → Application Use this for outdoor substations or factory automation cabinets where weather exposure is unavoidable. Feature The enclosure provides IP66 protection and NEMA 4 sealing, ensuring ingress protection in challenging environments. → Business Impact Minimizes unscheduled downtime due to moisture or dust ingress, improving line uptime and throughput. → Application Suitable for global installations in manufacturing or process industries where environmental sealing matters. Feature Dimensions and mounting capabilities: 800x2000x600 mm enclosure with mounting plate 699x1896 mm, two punched rails 18x39 mm, and a right-hand door (swap to left). → Business Impact Facilitates straightforward integration with standard panels and equipment, reducing custom fabrication. → Application Ideal for control panels, PLC/drive racks, and electrical assemblies that follow standard rack layouts. Feature Supply includes: enclosure frame, door, roof plate, base, rear panel, mounting plate, lock, and mounting rails. → Business Impact Streamlines procurement and reduces field assembly time, lowering total installed costs. → Application Helpful for OEM and retrofit projects where complete kit availability matters. Feature Weight and sustainability data: weight per pack 140 kg; PCF 344.9 kg CO2 eq (Cat B). → Business Impact Enables lifecycle planning and transport optimization, supporting sustainability goals. → Application Useful for project budgeting and green procurement programs. Feature Compliance and compatibility notes: UL 50E Type 1, EAN 4028177924543, ETIM EC000261, ECLASS 27180101. → Business Impact Ensures regulatory alignment and simplifies cataloging in procurement systems. → Application Facilitates cross-border compliance and parts matching in MRO workflows.
Get a Quick Quote for a Rittal 8807000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8807000?
Enquire Now
FAQs
VX 8807.000 ships with a mounting plate, base, rear panel, roof plate, two punched rails (18x39 mm), and a door hinged on the right with the option to swap to the left. This enables flexible panel mounting and easy integration with standard IEC enclosures in a wide range of control cabinets.
The enclosure achieves IP66 protection per IEC 60529 and NEMA 4 sealing, protecting internal components from dust, water jets, and harsh weather. The sheet steel construction offers robust mechanical strength, while UL 50E Type 1 confirms electrical enclosure suitability in compliant systems.
Yes. With IP66/NEMA4 protection and a textured powder-coated finish in RAL 7035, the VX 8807.000 is designed for outdoor and harsh indoor environments. Its dimensions and mounting compatibility support PLCs, drives, and control panels in industrial facilities, substations, and process plants.
Key certifications and standards include IP66 (IEC 60529), NEMA 4, UL 50E Type 1, and EAN/ETIM/ECLASS references. These ensure regulatory alignment, consistent cataloging, and reliable cross-system integration across global operations.
The durable surface finish and robust steel construction reduce repainting and corrosion-related maintenance. Standardized mounting rails and accessories shorten installation time, while the weight and packaging support optimized logistics. The enclosure’s longevity and global compatibility contribute to lower lifecycle costs and predictable procurement.
