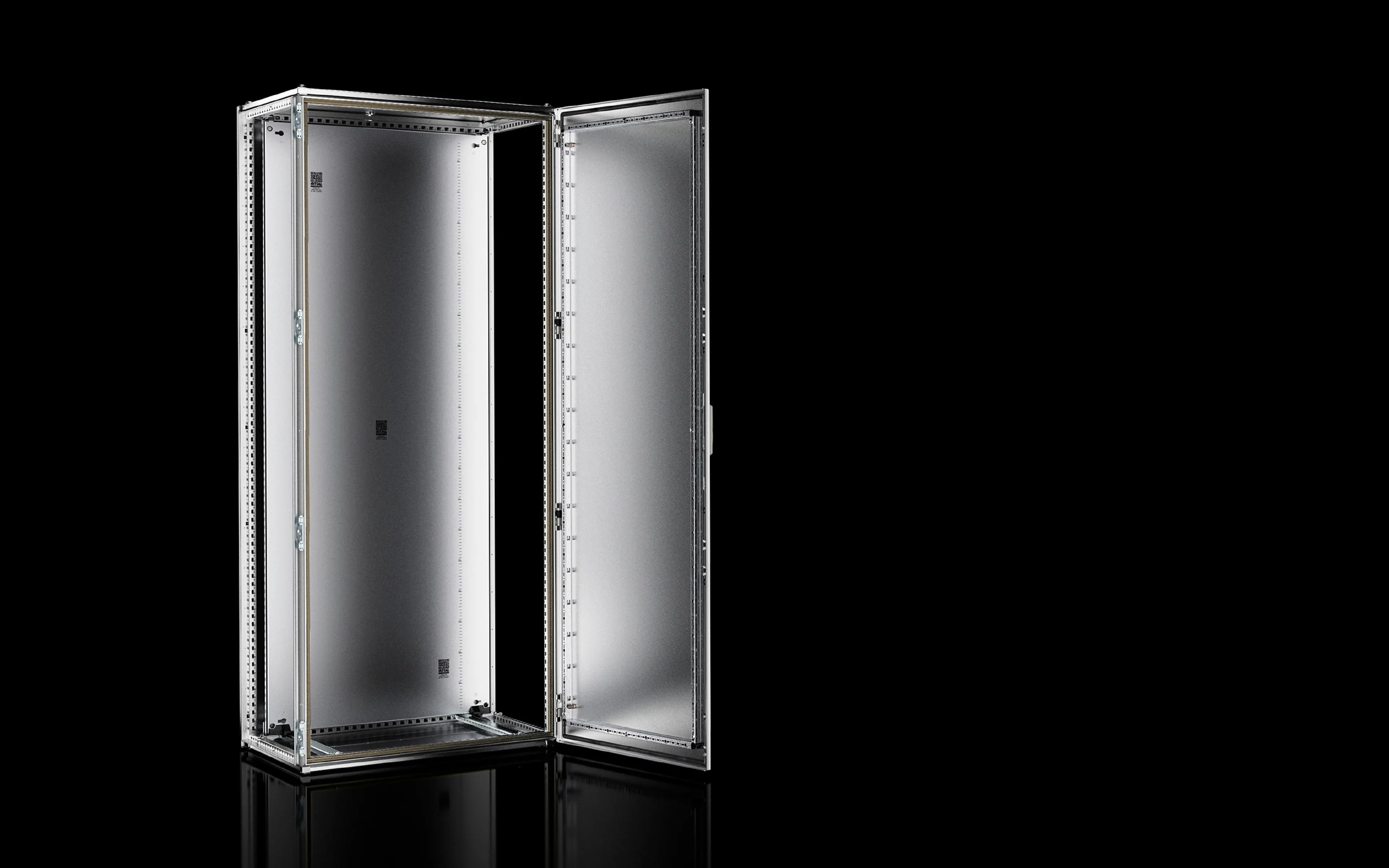

Rittal VX 8807.010 Enclosure for EMC Shielding EMC Version
Part Number: 8807010
Manufacturer
Rittal
Part number
8807010
Alt Part Number
VX 8807.010
Quick Summary
The Rittal VX 8807.010 enclosure provides robust EMI shielding for large control panels in industrial automation. This design helps users avoid costly downtime from EMI leaks and enclosure gaps in dense, bayed installations. It meets IP55, NEMA 1, and UL 50E Type 1 standards, with an EMC version that reinforces shielding at extended frequencies. By combining durable metallurgy with practical mounting options, it delivers long-term reliability and scalable panel protection for growing automation needs. Engineers can configure it for front-door hinges to suit left- or right-hand access, and the large interior supports flexible arrangement of busbars and equipment, simplifying installation in tight panel layouts.
Product Information
Extended Description
8807010 Rittal: VX Baying enclosure system, WHD: 800x2000x600 mm, Sheet steel, EMC version, with mounting plate, single door at the front
Article number
VX 8807.010
Design
EMC version
Product description
The large enclosures in the VX25 series offer a good level of shielding across a broad frequency range, even in the standard version. For increased EMC requirements, Rittal’s VX25 enclosure is also available in a high RF attenuation version.
Material
Enclosure frame: Sheet steel with zinc magnesium coating, 1.5 mm | Roof: Sheet steel with zinc magnesium coating, 1.5 mm | Door: Sheet steel with zinc magnesium coating, 2.0 mm | Rear panel: Sheet steel with zinc magnesium coating, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Uncoated | Door, rear panel and roof: Spray-finished on the outside and paint-free on the inside | Gland plates: Zinc-plated | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Rear panel | Roof plate | Gland plates | Mounting plate | Lock: 3 mm double-bit | 2 punched rails 18 x 39 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Number of doors
1
Note
For bayed enclosures, the EMC shielding seal is required
Packs of
1 pc(s).
Weight/pack
130 kg
PCF per pack (cradle-to-gate)
320.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177924574
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x2000x600 mm, Sheet steel, EMC version, with mounting plate, single door at the front
EMC Version shielding delivers consistent interference suppression across a broad frequency range, minimizing EMI emissions in dense assemblies. This translates to reduced risk of regulatory non-compliance and fewer field repairs. In practice, machine builders and panel shops gain confidence when integrating automation controllers, drives, and sensors inside the VX 8807.010, especially in high-noise manufacturing environments. Material robustness: enclosure frame and panels use zinc-magnesium coated sheet steel at 1.5–2.0 mm, providing durable protection against impact, corrosion, and daily wear. This contributes to longer service life and lower replacement costs in harsh production environments. Dimensions and mounting: 800x2000x600 mm with a front door and mounting plate included; door orientation can be swapped left or right. The design enables easy integration and fast commissioning in bayed configurations, reducing project timelines. Sealing and protection: IP55, NEMA 1, and UL 50E Type 1 deliver regulatory compliance and dependable ingress protection for relocated or stacked panels. Note about EMC shielding seal: in bayed enclosures, use the EMC shielding seal to maintain effective shielding across modules. Weight and sustainability: at 130 kg per pack, with PCF 320.3 kg CO2 eq (Cat B), the VX 8807.010 balances rugged protection with transparent environmental impact. Compatibility and supply: the enclosure ships with frame, door (hinge on right, swap to left), rear panel, roof plate, gland plates, and mounting plate to accelerate installation and commissioning.
Get a Quick Quote for a Rittal 8807010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8807010?
Enquire Now
FAQs
For bayed installations, plan for consistent EMC shielding across joined units and use the EMC shielding seal where required. The VX 8807.010 provides a robust 800x2000x600 mm footprint and includes a mounting plate, making it straightforward to align modules, busbars, and drives. Ensure door orientation can be adjusted to fit the layout and access requirements without compromising shielding or serviceability.
The enclosure carries IP55 protection and NEMA 1 suitability, with UL 50E Type 1 compliance for electrical enclosures. The EMC Version specifically enhances shielding performance to meet common industrial EMI requirements, helping maintain regulatory compliance in noisy environments. These ratings support reliable operation in machine frames, control cabinets, and automated systems.
Yes, the door is hinged on the right by default but can be swapped to the left to fit your workspace. The supply includes the enclosure frame, front door, rear panel, roof plate, gland plates, mounting plate, a 3 mm locking mechanism, and two punched rails. This comprehensive package simplifies installation and ensures all essential components are on hand for seamless assembly.
The enclosure uses sheet steel with zinc-magnesium coating; frame and roof are 1.5 mm, door 2.0 mm, rear panel 1.5 mm, gland plates 1.5 mm, and mounting plate 3.0 mm. Dimensions are 800 mm width, 2000 mm height, and 600 mm depth. This combination delivers robust protection while still fitting standard industrial panels and allowing flexible internal layouts for components and wiring.
The VX 8807.010 ships as a single pack weighing 130 kg, with cradle-to-gate PCF of 320.3 kg CO2 eq (Cat B). This provides transparency for sustainability assessments while delivering a heavy-duty enclosure suitable for demanding industrial environments, enabling long service life and predictable maintenance planning.
