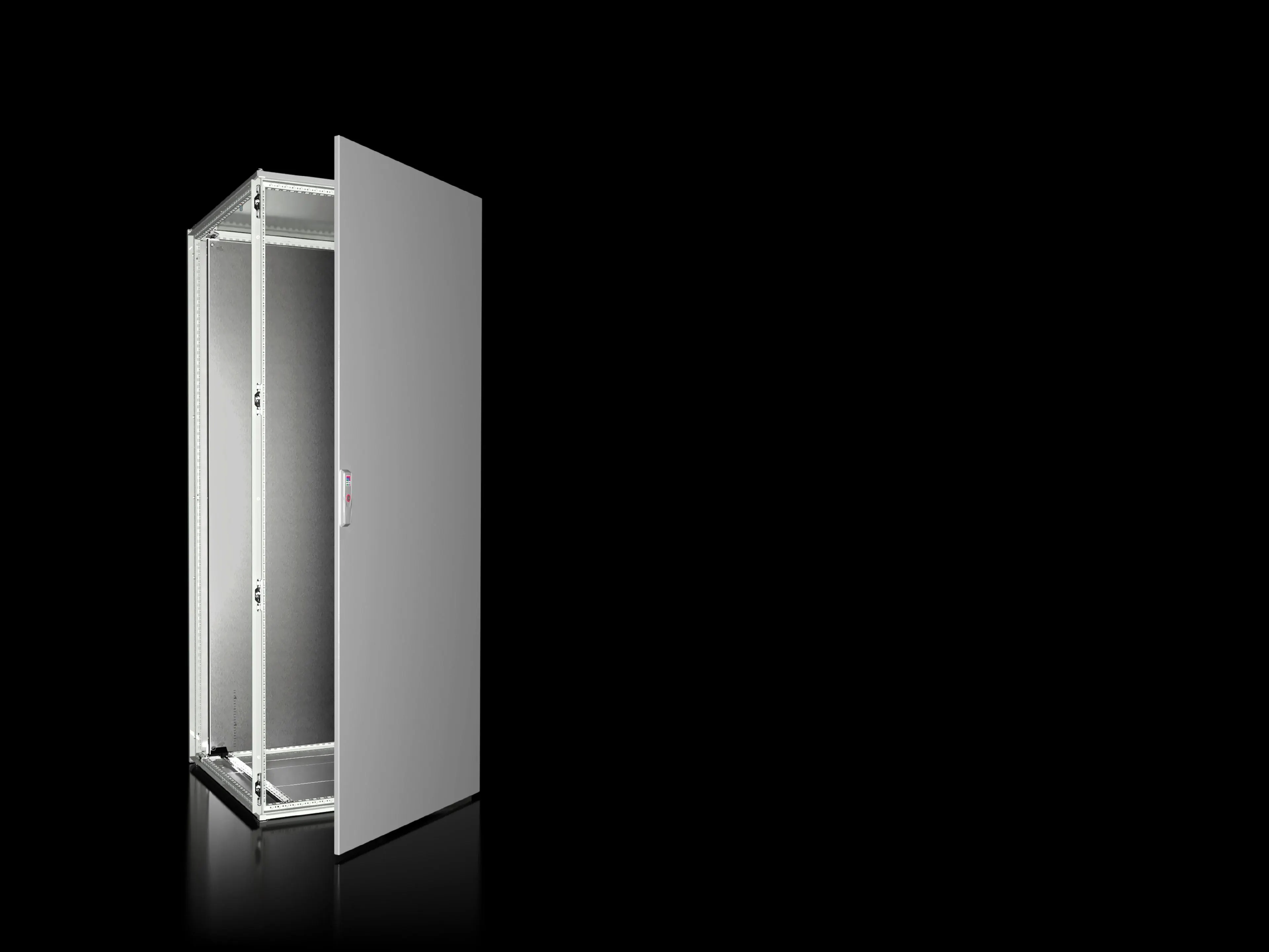

Rittal VX 8808.000 Enclosure System - IP55 IK10 Type 1
Part Number: 8808000
Manufacturer
Rittal
Part number
8808000
Alt Part Number
VX 8808.000
Quick Summary
Rittal VX 8808.000 Enclosure System is the standard solution for robust cabinet housing in electrical control panels and industrial automation setups. It addresses common installation challenges by providing a front-door enclosure with a rear panel, mounting plate, roof plate, and divided gland plates that streamline interior wiring. The design emphasizes durability in busy environments, with a dipcoat-primed frame and powder-coated exterior for long-term corrosion resistance. Key protections include IP55 and IK10, complemented by NEMA 1 and UL 50E Type 1 certifications to ensure reliable operation across regulated environments. For buyers, the system’s modular components and consistent finish drive faster deployment and easier maintenance, while compatibility with standard DIN rails and mounting patterns supports scalable automation architectures.
Product Information
Extended Description
8808000 Rittal: VX Baying enclosure system, WHD: 800x2000x800 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8808.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions mounting plate (W x H)
699 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
138 kg
PCF per pack (cradle-to-gate)
340 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813854
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x2000x800 mm, sheet steel, with mounting plate, single door at the front
Feature: Sheet steel enclosure frame (1.5 mm) with a 2.0 mm front door and 1.5 mm rear panel. Business Impact: Delivers high structural strength and tamper resistance, reducing risk of panel deformation in busy factories. Application: Ideal for heavy-use control cabinets in manufacturing lines where vibration and impact are common. Feature: Dipcoat-primed frame and powder-coated exterior with zinc-plated gland plates. Business Impact: Delivers corrosion resistance and low maintenance costs over the cabinet life cycle. Application: Suitable for damp or dusty environments and long-term outdoor potential when integrated with proper ambient protection. Feature: Dimensions 800x2000x800 mm, mounting plate 699x1896 mm, and 2 punched rails 18x39 mm. Business Impact: Ensures ample interior space and flexible DIN-rail mounting for diverse components, speeding commissioning. Application: Fits compact automation panels while preserving cable routing simplicity. Feature: One front door (hinged on the right, left-hinged option available) and included roof plate, rear panel, and gland plates. Business Impact: Improves serviceability and customization without expensive rework. Application: Quick door-swap capability supports layout changes in evolving line configurations. Feature: Protection and certification set IP55, IK10, NEMA 1, UL 50E Type 1. Business Impact: Compliant enclosure minimizes risk of water ingress and impact damage, easing procurement and regulatory alignment. Application: Suitable for regulated panel builds in process industries. Feature: Weight per pack 138 kg and PCF 340 kg CO2 eq (Cat B). Business Impact: Indicates robust material usage with a defined carbon footprint for sustainability reporting. Application: Helps buyers compare environmental impact across enclosure families and support green procurement.
Get a Quick Quote for a Rittal 8808000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8808000?
Enquire Now
FAQs
The VX 8808.000 installs with its mounting plate (699x1896 mm) fixed inside a frame, using two punched rails (18x39 mm) for DIN rails and the provided gland plates. Door orientation is right-hand hinged by default but can be swapped to left. Ensure proper DIN rail placement, cable routing through gland plates, and secure mounting using standard fasteners to achieve a compliant, tidy panel.
Key specs include width 800 mm, height 2000 mm, depth 800 mm, and a sheet steel construction with frame 1.5 mm, roof 1.5 mm, door 2.0 mm, rear panel 1.5 mm, gland plates 1.5 mm, and mounting plate 3.0 mm. It weighs 138 kg per pack, ships with two punched rails, and includes a 2-door/CD? configuration per pack. Protective ratings are IP55 and IK10, with NEMA 1 and UL 50E Type 1 compatibility.
Yes. The enclosure is rated IP55, providing dust protection and protection against water jets from all directions, making it suitable for harsh indoor and mild outdoor settings when installed with appropriate climate protection. The textured powder-coated exterior plus zinc-plated internal components further enhance corrosion resistance for long-term reliability.
VX 8808.000 carries IP55 protection, IK10 impact resistance, NEMA 1 enclosure classification, and UL 50E Type 1 compliance. It also aligns with standard ETIM 9/8 EC000261 and ECLASS 8.0 code 27180101, supporting clear procurement specifications and cross-system compatibility for industrial automation projects.
The enclosure offers durable sheet steel construction with corrosion-resistant finishing, reducing maintenance cycles and part replacements. Its modular mounting plate and gland plates streamline upgrades and reconfigurations, accelerating commissioning and minimizing downtime. A consistent RAL 7035 finish also lowers repainting costs, contributing to a favorable total cost of ownership in high-volume automation environments.
