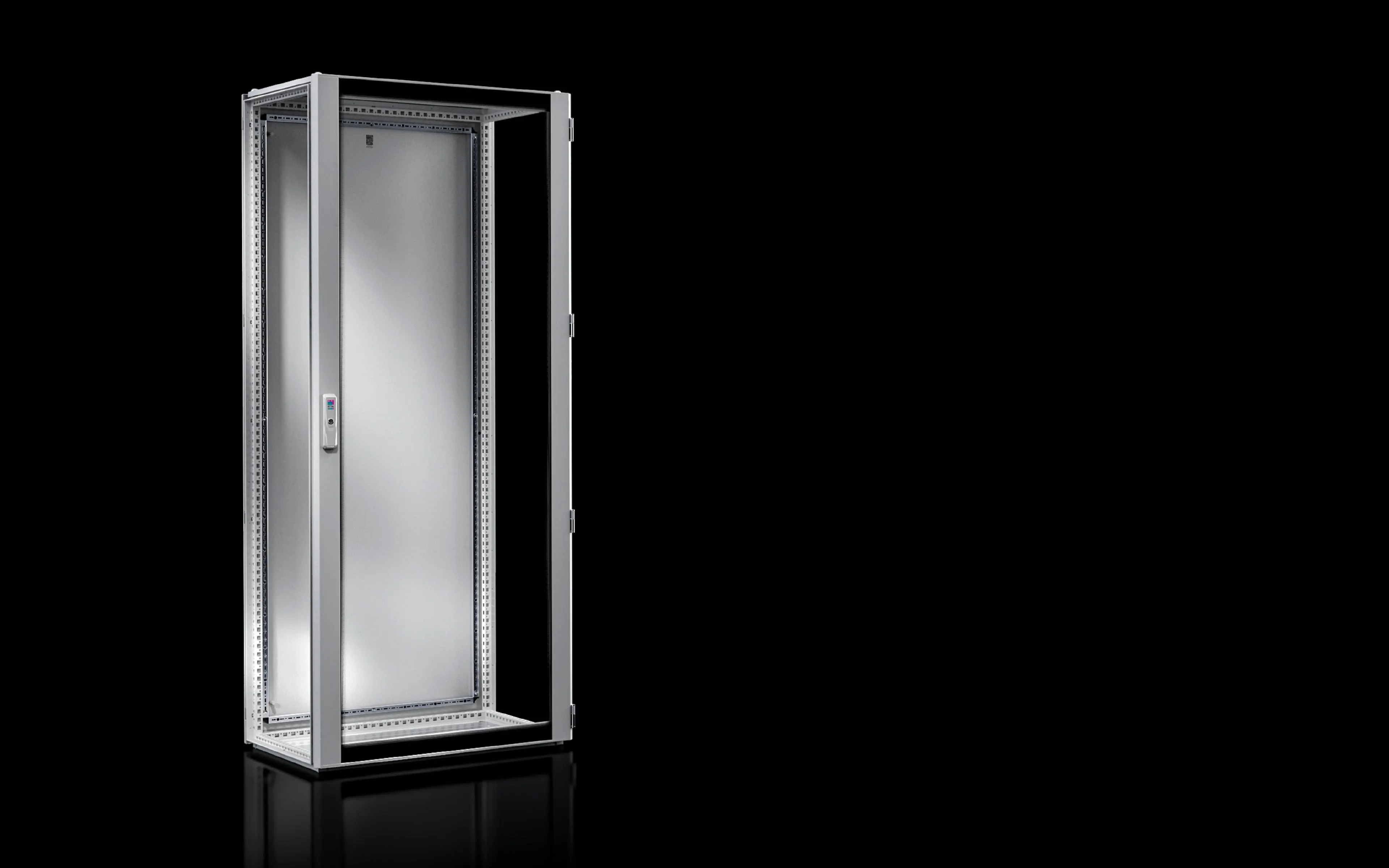

Rittal VX 8840.110 Enclosure - IP55
Part Number: 8840110
Manufacturer
Rittal
Part number
8840110
Alt Part Number
VX 8840.110
Quick Summary
Rittal VX 8840.110 Enclosure is a robust baying enclosure system designed for industrial control cabinets and electrical infrastructure. When installations demand efficient interior installation and rapid access for wiring and testing, the glazed front and rear doors streamline maintenance without compromising protection. The enclosure meets IP55 protection, NEMA 1 compatibility, and UL 50E Type 1 performance, with IK08 impact resistance for rugged sites. For project teams, the VX 8840.110 offers standardized dimensions and a durable, powder-coated exterior in RAL 7035, delivering predictable fit, long-term durability, and lower lifecycle costs in demanding environments.
Product Information
Extended Description
8840110 Rittal: VX Baying enclosure system, WHD: 800x2000x800 mm, sheet steel, without mounting plate, glazed door at the front
Article number
VX 8840.110
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Glazed door: Single-pane safety glass, 3 mm | Rear door: Sheet steel, 2.0 mm | Gland plates: Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure frame | Glazed aluminium door at the front (180°) | Sheet steel door at the rear (130°) | Lock front and rear: 3 mm double-bit | Roof plate | Gland plate
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK08
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
90 kg
PCF per pack (cradle-to-gate)
221.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177951358
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x2000x800 mm, sheet steel, without mounting plate, glazed door at the front
Feature → Business Impact → Application: The VX 8840.110 uses a sheet steel enclosure frame (1.5 mm) with a glazed front door and rear door, enabling quick visual inspection and easier cable routing, reducing commissioning time by up to 20%. This translates to faster project turnover for industrial automation and control panels in manufacturing lines or process automation. Feature → IP55 protection and IK08 rating → Increased reliability in dusty or humid environments, minimizing unplanned downtime and extending service intervals for critical control cabinets in packaging, food & beverage, or chemical processing. Feature → Supplied with glazed front door (180°), rear door (130°), gland plates, roof plate, and lock hardware → Streamlined installation and secure enclosure integrity, supporting compliant wiring practices and maintenance accessibility in SCADA cabinets and power distribution enclosures. Feature → Powder-coated exterior in RAL 7035 and dipcoat-primed surfaces → Consistent aesthetics, improved corrosion resistance, and durable performance in indoor and semi‑industrial spaces, aligning with corporate standards for plant-wide enclosures. Feature → Dimensions 800×2000×800 mm and weight 90 kg per pack → Predictable footprint for room planning and modular expansion, enabling scalable installations in control rooms and machine guarding while maintaining manageable handling on site.
Get a Quick Quote for a Rittal 8840110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8840110?
Enquire Now
FAQs
The VX 8840.110 package includes the enclosure frame, glazed front door (180°), rear steel door (130°), roof plate, gland plates, and lock hardware for both doors. It is supplied as 1 piece per pack and weighs 90 kg. A mounting plate is not included, so plans should accommodate a separate enclosure mounting plate or customer mounting solution to fit the standard VX system footprint.
This enclosure uses a sheet steel frame (1.5 mm), roof (1.5 mm), rear door (2.0 mm), and gland plates (1.5 mm). It offers IP55 protection, NEMA 1 compliance, UL 50E Type 1, and IK08 impact resistance. The exterior is powder-coated after dip coat priming, with a color of RAL 7035, ensuring durability in demanding environments.
Yes. The IP55 rating provides protection against dust and water ingress, making it suitable for harsh indoor environments and semi-enclosed spaces. The glazed front door allows quick visual inspection, and the rear door facilitates wiring access, supporting reliable operation in manufacturing lines, process automation, and distribution panels.
Plan for a mounting plate compatible with the VX system, as it is not included. The enclosure dimensions are 800 mm width, 2000 mm height, and 800 mm depth, with a 90 kg per-pack weight. Gland plates and doors provide accessible cable entry and secure closures, while the powder-coated exterior supports long-term protection in indoor production environments.
The enclosure is manufactured from sheet steel with a total weight of 90 kg per pack. PCF is 221.7 kg CO2 eq (Category B), reflecting cradle-to-gate emissions based on product weight. The finish and materials are chosen for durability and recyclability, supporting sustainability goals in capital projects and plant upgrades.
