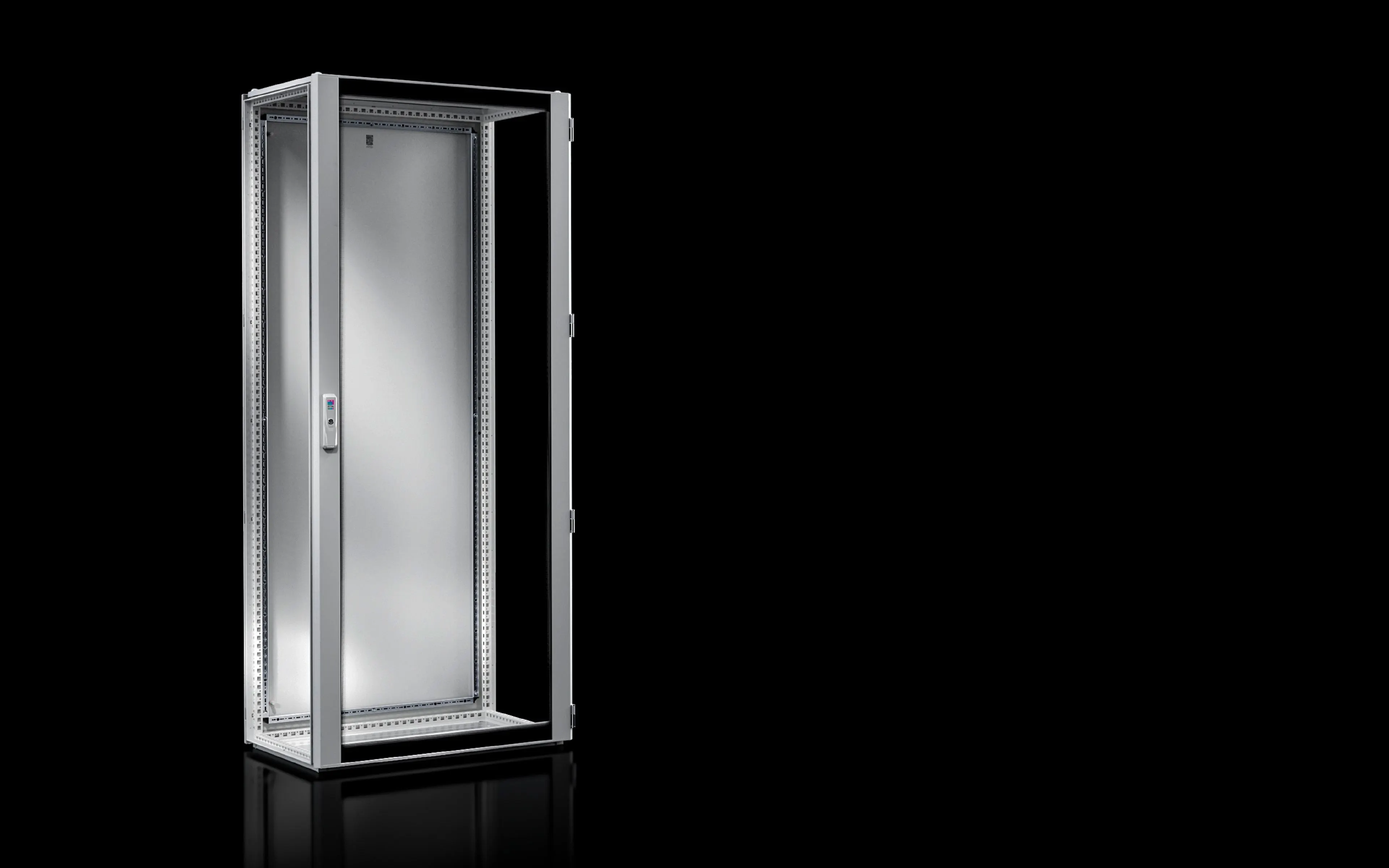

Rittal VX 8840.120 Enclosure - IP55, 600x2000x600
Part Number: 8840120
Manufacturer
Rittal
Part number
8840120
Alt Part Number
VX 8840.120
Quick Summary
Rittal VX 8840.120 is a rugged enclosure that protects electrical and control gear in harsh industrial environments. For engineers, ingress protection, cable management, and serviceability are common bottlenecks—this baying system reduces risk by providing a robust frame with dual doors and divided gland plates. The enclosure meets IP55 protection, IK08 impact resistance, and UL 50E Type 1/NEMA 1, helping you satisfy global standards with a single product. The glazed front offers easy visual inspection while the rear door supports secure mounting and maintenance access. By combining durable sheet steel with a dipcoat prime and powder-coated finish, it delivers long-term reliability and lower life-cycle costs for industrial automation projects.
Product Information
Extended Description
8840120 Rittal: VX Baying enclosure system, WHD: 600x2000x600 mm, sheet steel, without mounting plate, glazed door at the front
Article number
VX 8840.120
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Glazed door: Single-pane safety glass, 3 mm | Rear door: Sheet steel, 2.0 mm | Gland plates: Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure frame | Glazed aluminium door at the front (180°) | Sheet steel door at the rear (130°) | Lock front and rear: 3 mm double-bit | Roof plate | Gland plate
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 600 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK08
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
71 kg
PCF per pack (cradle-to-gate)
174.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177951402
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 600x2000x600 mm, sheet steel, without mounting plate, glazed door at the front
VX Baying design maximizes cabinet density while preserving interior access, enabling compact layouts in automated lines. The 600x2000x600 mm footprint helps you scale control panels without sacrificing serviceability, ideal for machine builders and OEMs deploying modular automation. Glazed front door and rear door swing open to 180° and 130°, respectively, improving visibility and serviceability while reducing maintenance time and wiring verification effort. The 1.5 mm frame and roof, 2.0 mm rear panel, and 3 mm glass provide robust physical protection; a corrosion-resistant dipcoat primed and powder-coated exterior extends life in challenging environments. Protection ratings IP55 and IK08, together with UL 50E Type 1 and NEMA 1, simplify cross-border compliance for global projects. Weight, packaging, and PCF values (71 kg per pack; 174.9 kg CO2 eq) reflect a balance of durability and sustainability. The included gland plates and roof plate streamline cable routing and mounting, while the absence of a mounting plate lets you pair with existing installations or external mounting solutions.
Get a Quick Quote for a Rittal 8840120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8840120?
Enquire Now
FAQs
The VX 8840.120 is supplied without a mounting plate, so plan to use an external mounting solution or standard DIN-rail/rail-based mounting if needed. The enclosure includes an enclosure frame, glazed front door, rear steel door, roof plate, and gland plates to simplify route and secure internal components. Ensure adequate access space for the 180° front door and 130° rear door operations during commissioning.
This enclosure is rated IP55 and IK08, providing dust and impact resistance suitable for harsh environments. It also aligns with UL 50E Type 1 and NEMA 1 standards, and it carries compliant surface treatment and assembly practices. These certifications support global deployments across manufacturing plants and automation projects.
The unit is supplied without an mounting plate, so you should pair it with an external mounting plate or compatible accessories. The design supports straightforward cable entry via divided gland plates and glazing for visual inspection, making integration with existing cabinets and cable conduits efficient in space-constrained environments.
The enclosure footprint is Width 600 mm, Height 2000 mm, Depth 600 mm (WHD 600x2000x600). Each pack weighs 71 kg, with a cradle-to-gate PCF of 174.9 kg CO2 eq (Cat B). This information helps with site logistics, rack loading, and sustainability calculations for large deployments.
Choosing VX 8840.120 delivers durable protection (IP55, IK08) and a powder-coated finish for longer service life, reducing maintenance frequency. The glazed front door enables quick inspections, while the rear door facilitates fast access for servicing. Together with cable-management features and robust materials, this enclosure lowers lifecycle costs and supports rapid commissioning in automation programs.
