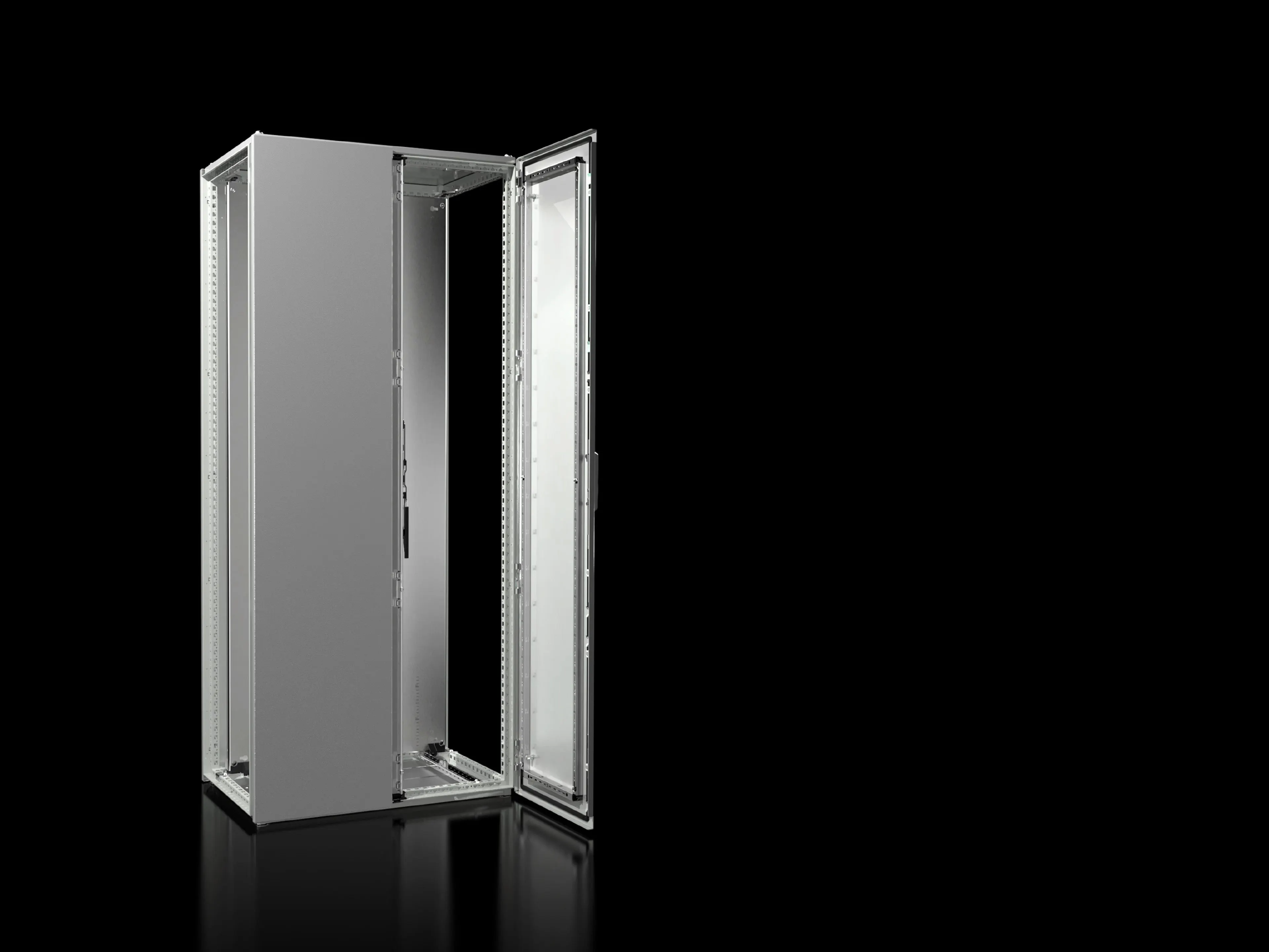

Rittal VX 8880.000 Enclosure - 800x1800x500 IP55
Part Number: 8880000
Manufacturer
Rittal
Part number
8880000
Alt Part Number
VX 8880.000
Quick Summary
The Rittal VX 8880.000 Enclosure offers robust cabinet protection for industrial control panels. When upgrading or installing, engineers often face slow interior installations and limited door flexibility. This model delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1, with NEMA 1 compatibility for durability in demanding environments. A powder-coated exterior, RAL 7035 color, and a purpose-built mounting plate with gland plates enable fast, scalable layouts without compromising access. These attributes support efficient interior installation, predictable lead times, and improved serviceability for automation projects. The system’s 699x1696 mounting plate fits common 18x39 mm punched rails for quick rail mounting.
Product Information
Extended Description
8880000 Rittal: VX Baying enclosure system, WHD: 800x1800x500 mm, sheet steel, with mounting plate, two doors at the front
Article number
VX 8880.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
2
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
119 kg
PCF/PU (cradle-to-gate)
293.2 kg CO2 eq (Cat B)
Note on the PCF class
Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
EAN
4028177813908
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x1800x500 mm, sheet steel, with mounting plate, two doors at the front
Feature: Two front doors, rear panel, mounting plate, roof plate, and gland plates with two punched rails 18 x 39 mm. Business impact: Improves accessibility and cable management, accelerating interior installation and future reconfigurations in ever-evolving automation layouts. Application: Ideal for control cabinets in manufacturing lines and process automation where frequent component swaps occur. Feature: Sheet steel construction with defined gauges (1.5 mm to 2.0 mm) and a dipcoat-primed exterior plus powder-coated doors. Business impact: Delivers lasting durability and corrosion resistance in harsh factory environments, reducing maintenance frequency and downtime. Application: Suitable for wet, dusty or temperature-variant environments across industrial facilities. Feature: IP55 protection, IK10 impact resistance, NEMA 1 and UL 50E Type 1 ratings. Business impact: Ensures reliable ingress protection and mechanical ruggedness, supporting compliance and certified performance for critical control systems. Application: Compliance-driven installations in electrical infrastructure and automation panels. Feature: Colour in RAL 7035 and a zinc-plated mounting plate and gland plates. Business impact: Aesthetically consistent installations with dependable grounding/sleeving options, easing maintenance and spare-part planning. Application: Environments requiring standardized color-coding and long-term availability of replacement parts. Feature: Weight 119 kg per pack and PCF 293.2 kg CO2 eq (Cat B). Business impact: Informs total cost of ownership, logistics planning, and sustainability reporting for green manufacturing initiatives. Application: Procurement alignment with environmental targets and lifecycle assessments.
Get a Quick Quote for a Rittal 8880000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8880000?
Enquire Now
FAQs
The VX 8880.000 is designed around a 699x1696 mm mounting plate and standard 18x39 mm punched rails, enabling straightforward retrofits or new builds. Doors are hinged on the right by default but can be swapped to the left, and gland plates provide flexible cable entry. This means technicians can reuse existing mounting patterns while achieving clean, organized interiors with minimal alterations.
This enclosure delivers IP55 protection and IK10 impact resistance, with NEMA 1 compatibility and UL 50E Type 1 listing. It uses sheet steel construction and a dipcoat-primed exterior with powder-coated exterior doors to meet harsh industrial conditions. These certifications support reliable operation in manufacturing floors, electrical infrastructure, and process automation environments.
Yes. Built from specified sheet steel gauges and finished with durable powder coating on exterior surfaces, the VX 8880.000 is suitable for dusty, humid, or temperature-variable environments. The IP55 rating guards against dust and water ingress, while IK10 ensures protection against mechanical impacts common in busy industrial spaces.
The enclosure complies with UL 50E Type 1 and NEMA 1 classifications, in addition to IP55 and IK10 protection ratings. It also adheres to standard color and material specifications (RAL 7035 and sheet steel construction) and is compatible with UL/CE-focused procurement practices, supporting regulatory conformity and safe electrical installations.
By enabling quick interior assembly with a mounting plate, readily swappable door orientation, and standardized gland plates, maintenance intervals shorten and component swaps become simpler. The durable surface finish reduces corrosion-related downtime, while the cradle-to-gate PCF is documented for sustainability reporting, aiding in lifecycle planning and potential reductions in downtime-related losses.
