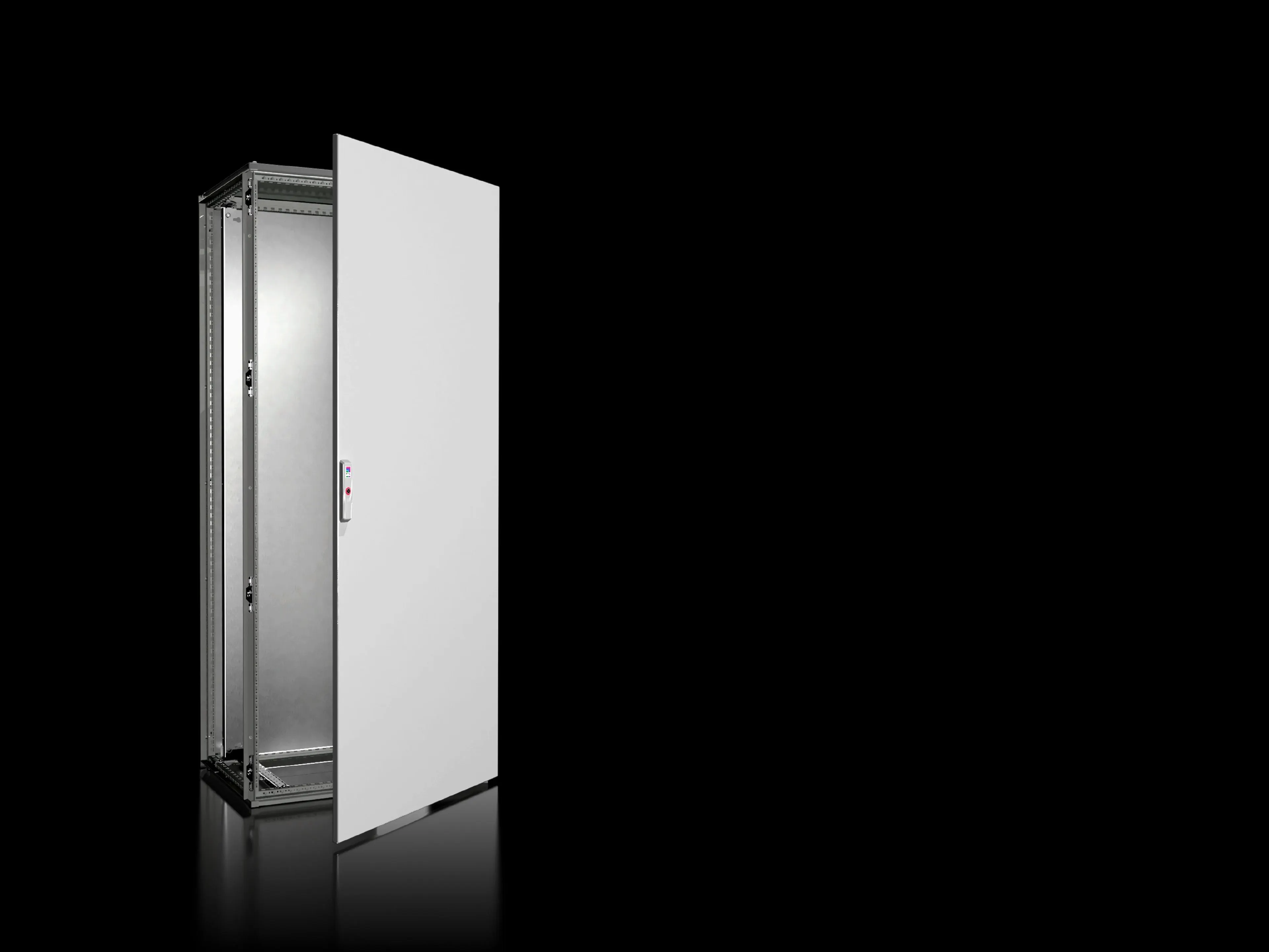

Rittal VX 8885.000 Enclosure - IP55 Protection
Part Number: 8885000
Manufacturer
Rittal
Part number
8885000
Alt Part Number
VX 8885.000
Quick Summary
Rittal VX 8885.000 Enclosure provides a robust cabinet frame for safe, organized control-panel installations in industrial environments. Engineers often struggle with interior mounting flexibility and retrofit compatibility when space is constrained. This VX Baying enclosure system delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 ratings to support safety and regulatory compliance. With a ready-to-install mounting plate, two punched rails, and a right-hand hinged door (swap to left), it reduces installation time, simplifies changeovers, and enhances long-term equipment longevity across factory automation projects.
Product Information
Extended Description
8885000 Rittal: VX Baying enclosure system, WHD: 800x1800x500 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8885.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
113 kg
PCF per pack (cradle-to-gate)
278.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813939
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x1800x500 mm, sheet steel, with mounting plate, single door at the front
Feature: Sheet steel construction with defined thickness on each component (frame 1.5 mm, door 2.0 mm, mounting plate 3.0 mm) ensures rugged durability in harsh environments. Business Impact: Enhances uptime and protects critical components from dust, splash, and mechanical impact, reducing maintenance costs and unscheduled downtime in automation applications. Application: Ideal for high-density control cabinets in manufacturing lines where reliability is non-negotiable and space is at a premium. Feature: VX 8885.000 dimensions (W 800 mm x H 1800 mm x D 500 mm) with mounting plate sized at 699 x 1696 mm and two punched rails 18 x 39 mm. Business Impact: Enables flexible interior layout and scalable equipment mounting for diverse control gear, improving commissioning efficiency and future upgrades. Application: Suitable for scalable PLCs, drives, and I/O modules in process and discrete automation. Feature: Front single door, right-hinged (swappable to left) plus roof, rear panel, gland plates, and mounting plate included. Business Impact: Simplifies installation logistics and service access, minimizes door orientation constraints, and supports quick reconfiguration during retrofits. Application: Controls and electrical infrastructure where routine access and modularity matter. Feature: IP55 protection, IK10 impact resistance, NEMA 1 / UL 50E Type 1 compatibility, and RAL 7035 powder-coated exterior. Business Impact: Ensures reliable ingress protection and impact resistance while delivering a durable finish that resists corrosion and wear. Application: Harsh factory floors and outdoor-adjacent installations requiring compliant enclosures. Feature: Weight per pack 113 kg with PCF 278.4 kg CO2 eq (Cat B) and one enclosure per pack. Business Impact: Clear packaging and sustainability messaging support logistics planning and environmental reporting for procurement teams. Application: Suitable for single- carton freight handling in warehouse or plant environments.
Get a Quick Quote for a Rittal 8885000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8885000?
Enquire Now
FAQs
The VX 8885.000 includes two punched rails 18x39 mm and a mounting plate sized 699x1696 mm, designed to accept standard DIN-rail components and accessories. The right-handed door can be swapped to left, enabling flexible interior layouts and simpler retrofits in evolving control cabinet configurations.
This enclosure uses sheet steel construction with varying thickness per part: frame 1.5 mm, roof 1.5 mm, door 2.0 mm, rear panel 1.5 mm, gland plates 1.5 mm, mounting plate 3.0 mm. It carries IP55 ingress protection and IK10 impact resistance, with NEMA 1 and UL 50E Type 1 compatibility for broad regulatory alignment.
Yes. It supports UL 50E Type 1 and NEMA 1 configurations and is designed for CE-related expectations through standard enclosure construction, surface finish, and material specs. The powder-coated exterior adds corrosion resistance, aiding ongoing compliance and long service life in automation projects.
Key installation benefits include a ready-to-use mounting plate and gland plates, right-hand hinged door (swap to left), and included rails. These features reduce on-site assembly time, simplify component mounting, and allow rapid reconfiguration when changing control strategies or upgrading equipment.
Weight per pack is 113 kg, with a PCF value of 278.4 kg CO2 eq (Category B). The enclosure uses sheet steel and zinc-plated gland components, balancing rugged durability with a sustainability footprint suitable for reporting in many procurement’ sustainability programs.
