Rittal VX 8886.000 Enclosure System - IP55
Part Number: 8886000
Manufacturer
Rittal
Part number
8886000
Alt Part Number
VX 8886.000
Quick Summary
Rittal VX 8886.000 is a rugged enclosure system designed to protect control panels and electrical gear in industrial environments. It addresses the common pain of slow installations and ingress risks by delivering a ready-to-build interior with a mounting plate, gland plates, and pre-punched rails. The cabinet is rated IP55 and IK10, with UL 50E Type 1 / NEMA 1 compliance to withstand dust, moisture, and impacts in harsh settings. Built for automation cabinets, machine builders, and panel shops, it speeds assembly and simplifies serviceability through standardized components and consistent fit across modular accessories. This translates to reduced commissioning time, lower field rework, and improved overall equipment reliability.
Product Information
Extended Description

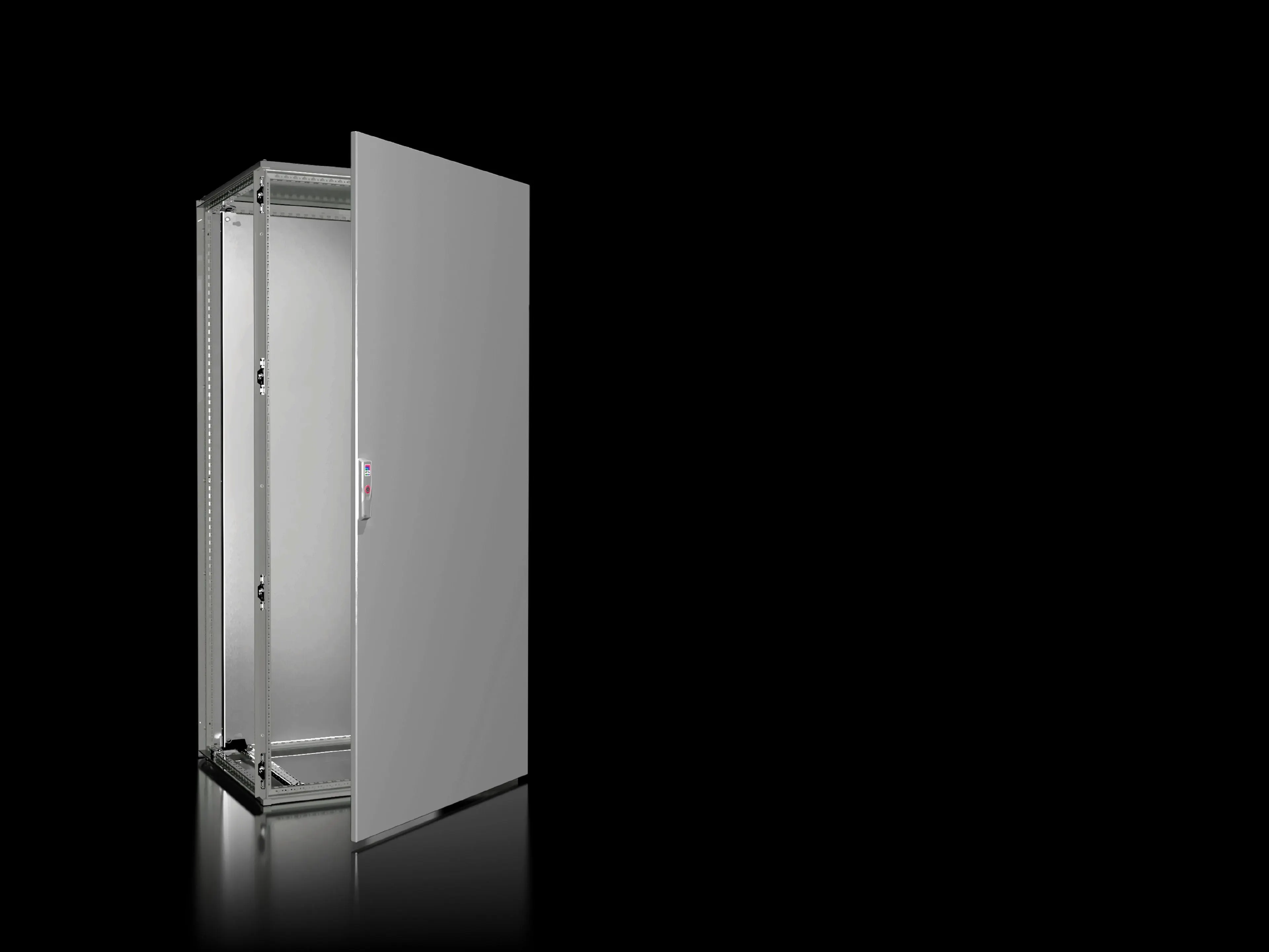

8886000 Rittal: VX Baying enclosure system, WHD: 800x1800x600 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8886.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 1,800 mm | Depth: 600 mm
Dimensions mounting plate (W x H)
699 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
116 kg
PCF per pack (cradle-to-gate)
285.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813946
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 800x1800x600 mm, sheet steel, with mounting plate, single door at the front
Feature: Rugged sheet steel construction with defined thickness for frame and panels. Business Impact: Delivers long service life in harsh environments, reducing maintenance and replacement costs. Application: Automation cabinets in manufacturing lines where dust, moisture, and vibration are concerns. Feature: IP55, IK10, UL 50E Type 1/NEMA 1 protection. Business Impact: Protects internal electronics from dust and water ingress and physical impacts, increasing uptime and reliability. Application: Industrial automation, packaging, and process control panels. Feature: Included mounting plate, glands, and two punched rails 18x39 mm. Business Impact: Speeds interior layout and cable management, shortening commissioning time and lowering installation risk. Application: System integrators building control cabinets for machines and conveyors. Feature: Door hinged on the right, swappable to left; textured powder coating on exterior. Business Impact: Installation flexibility and durable aesthetics enable easier retrofits and maintenance without mechanical changes. Application: Retrofit projects and upgrade campaigns in existing lines. Feature: Dimensions 800x1800x600 mm, weight 116 kg per pack; color RAL 7035; complete with roof, rear panel, and gland plates. Business Impact: Predictable shipping and handling; consistent fit with standard parts reduces procurement complexity. Application: Large control cabinets and distributed automation enclosures.
Get a Quick Quote for a Rittal 8886000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8886000?
Enquire Now
FAQs
VX 8886.000 ships with two punched rails (18x39 mm), a 699x1696 mm mounting plate, and a single front door hinged on the right that can be swapped to the left. Its 800x1800x600 mm footprint aligns with common panel designs, enabling rapid interior layout and simplified retrofits.
The enclosure offers IP55 protection and IK10 impact resistance, with UL 50E Type 1 and NEMA 1 compliance. These ratings support reliable operation in dusty, moist, and mechanically demanding environments typical of industrial automation.
Ideal for automation cabinets, machine builders, and panel shops, it supports secure housing for control electronics, drive controllers, and PLCs. The included interior hardware and durable finish help shorten commissioning times and improve serviceability in manufacturing and packaging lines.
Yes. The product includes zinc-plated gland plates and a dipcoat-primed exterior with powder-coated finish, plus a packaging weight of 116 kg per pack. It also reports PCF of 285.8 kg CO2 eq (Cat B), reflecting a cradle-to-gate lifecycle context for sustainability planning.
The supply includes the enclosure frame, door, roof plate, rear panel, gland plates, mounting plate, two punched rails, and a locking mechanism. The door is right-handed by default but swap-friendly, and the kit is designed for straightforward installation with standard mounting practices and accessories.
