Rittal TS 8950.050 isolator door cover - UL 508 A
Part Number: 8950050
Quick Summary
Rittal TS 8950.050 isolator door cover provides UL‑compliant safety locking for US enclosure suites. OEMs often struggle to source hardware that delivers robust protection while enabling fast, maintenance-friendly access. This US version carries IP 55 and NEMA 12 ratings, aligning with UL 508 A safety requirements for industrial control panels. By standardizing on the main door lock, cover plate, and assembly parts, manufacturers can simplify procurement, reduce installation time, and improve compliance across Allen-Bradley applications such as 1494 F-M1/P1/S1 and 140 U-K-FCX04. With its powder-coated finish in RAL 7035, the component also resists shop-floor wear and corrosion, reducing lifecycle costs.
Product Information
Extended Description

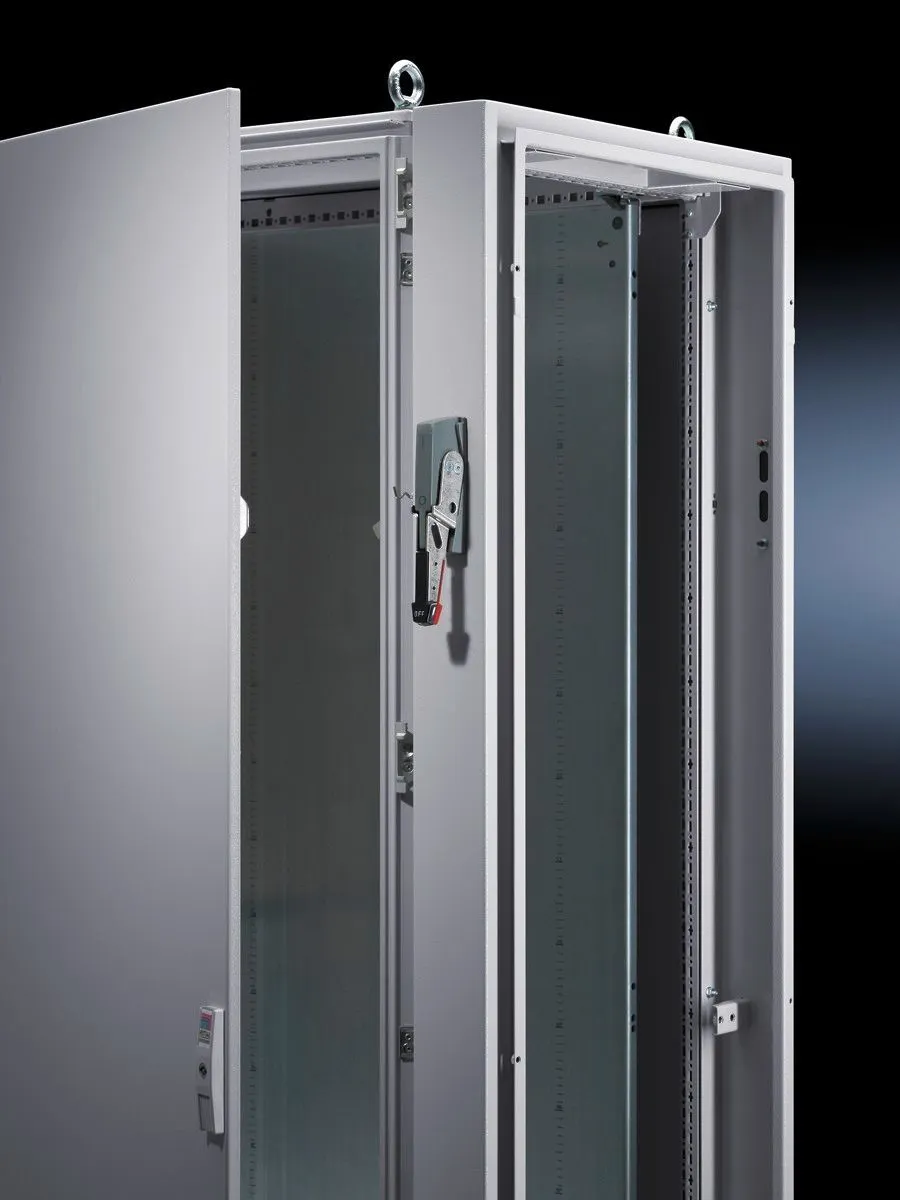

8950050 Rittal: TS TS isolator door cover (US version), WHD: 119.5x2000x500 mm
Article number
TS 8950.050
Product description
Including main door lock for safety locking of enclosures and bayed enclosure suites in accordance with US regulations, only in conjunction with actuator lever for master switches.
Benefits
In combination with operating mechanism, adjacent door latch, interconnecting rods meets the requirements of UL 508 A.
Applications
Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04
Material
Sheet steel
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Main door lock, cover plate and assembly parts.
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Note
The enclosure in front of the isolator door cover must be a single-door enclosure
Dimensions
Width: 119.5 mm | Height: 2,000 mm | Depth: 500 mm
Packs of
1 pc(s).
Weight/pack
24.7 kg
Customs tariff number
73269098
EAN
4028177693012
ETIM 9
EC000712
ECLASS 8.0
27180101
Product description
TS TS isolator door cover (US version), WHD: 119.5x2000x500 mm
Feature: UL 508 A safety locking integration with the main door lock, cover plate, and actuator lever provides a compliant, tamper-resistant interlock. Business impact: This integration minimizes the risk of accidental enclosure openings during maintenance, helping protect personnel and sensitive equipment while simplifying audit trails. Application: Designed for US‑market enclosures and bayed suites, it streamlines installation in standard dimensional footprints and reduces BOM complexity. Feature: IP 55 protection and NEMA 12 enclosure rating. Business impact: Enhanced reliability on factory floors, reducing service interruptions due to dust ingress or moisture. Application: Suitable for indoor industrial environments with moderate exposure to humidity; pairs with powder-coated sheet steel. Feature: Material and finish. Business impact: Sheet steel with a durable powder-coated finish delivers long service life and reduced corrosion in harsh environments. Application: Ideal for commercial/industrial facilities with routine handling. Feature: Size, weight, and fit. Business impact: WHD 119.5x2000x500 mm and a 24.7 kg pack mass enable straightforward integration with standard single-door enclosures. Application: Fits enclosures described in the notes and supports single-door configurations. Feature: Compatibility and content. Business impact: Allen-Bradley compatibility notes and included accessories shorten engineering cycles and reduce procurement risk. Application: Works with 1494 F-M1/P1/S1 and 140 U-K-FCX04, streamlining panel assembly. Feature: Supply includes and installation ease. Business impact: Main door lock, cover plate and assembly parts speed installation and minimize additional sourcing. Application: Ideal for OEMs and service teams seeking a complete safety locking solution.
Get a Quick Quote for a Rittal 8950050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8950050?
Enquire Now
FAQs
The TS 8950.050 is designed for single-door enclosures (as noted by the installation note). Ensure enclosure width is 119.5 mm, height 2000 mm, depth 500 mm, and that mounting points align with the included cover plate. Use with the main door lock and actuator lever for master switches, and verify IP 55/NEMA 12 ratings are suitable for your environment.
Yes. The product specifies applications with Allen-Bradley components, including 1494 F-M1/P1/S1 and 140 U-K-FCX04. Verify mounting interfaces and actuator compatibility in your enclosure design to ensure seamless integration with your master-switch assemblies.
The TS 8950.050 is UL 508 A compliant for safety locking in US enclosures. It also carries IP 55 protection and a NEMA 12 rating, with a powder-coated sheet steel construction suitable for industrial environments, providing rugged, compliant performance.
Dimensions are Width 119.5 mm, Height 2000 mm, Depth 500 mm. The pack weight is 24.7 kg, and each pack contains 1 piece. This sizing supports standard single-door enclosures and aligns with common US manufacturing footprints.
The supply includes the main door lock, cover plate and assembly parts. A key installation note specifies that the enclosure in front of the isolator door cover must be a single-door enclosure, ensuring correct fit and operation within UL 508 A-compliant systems.
