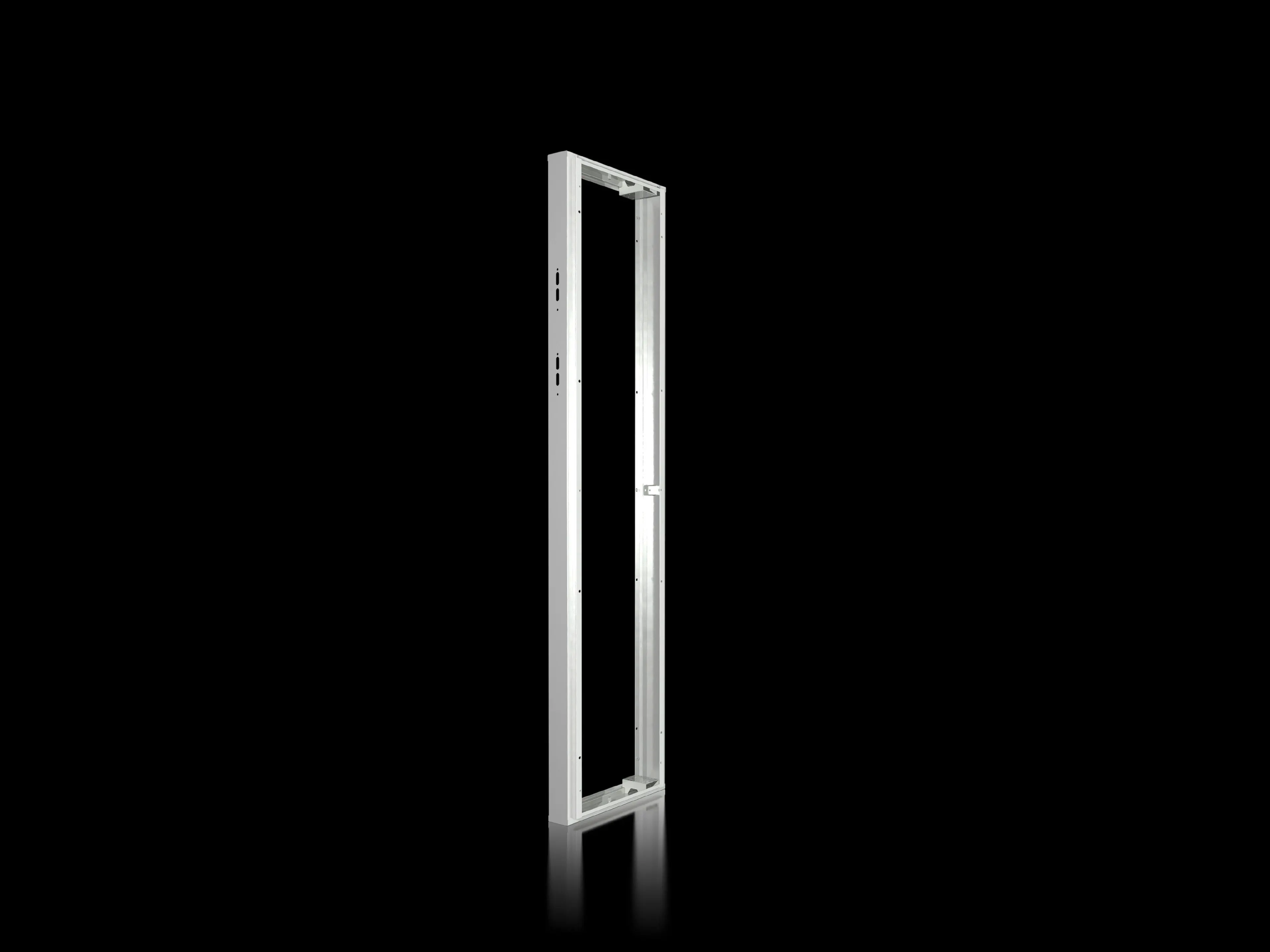

Rittal VX 8951.010 VX Isolator - UL 50E Type 1
Part Number: 8951010
Quick Summary
Rittal VX 8951.010 is an isolator door cover that enables UL 50E safety locking for enclosure doors. Facility teams often struggle to achieve consistent, regulator-compliant locking across bayed enclosures during onboarding and routine maintenance. The solution delivers UL 50E Type 1 compliance, IP55 protection when paired with VX series enclosures, and NEMA 12 compatibility, providing robust defense against dust and splash. Built for rugged industrial environments, it also supports a main door lock, cover plate, and assembly parts to streamline installation. The powder-coated finish in RAL 7035 enhances corrosion resistance and aesthetics, while the 103 mm by 2,000 mm by 600 mm footprint fits standard VX frames, delivering tangible time and cost savings in project rollouts.
Product Information
Extended Description
8951010 Rittal: VX Isolator door cover, WHdepth 103x2000x600 mm
Article number
VX 8951.010
Product description
Including main door latch for safety locking of enclosures and bayed enclosure suites in accordance with UL regulations. Tested in conjunction with an actuator lever for master switches from the following companies: Allen Bradley, Square D, General Electric, Eaton, Siemens.
Benefits
Meets the requirements of UL 508 A
Applications
Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04
Material
Sheet steel, 1.5 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Main door lock, cover plate and assembly parts.
Dimensions
Width:Â 103 mm | Height:Â 2,000 mm | Depth:Â 600 mm
Note
Cover may only be mounted on a single-door enclosure with tubular door frame
Type rating to UL 50E
Type 1
Protection category to IEC 60 529
IP 55 in conjunction with enclosures from the VX series
Protection category NEMA
NEMA 12 (in conjunction with enclosures from the VX series)
Packs of
1 pc(s).
Weight/pack
18.2 kg
Customs tariff number
73269098
EAN
4028177920941
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Isolator door cover, WHdepth 103x2000x600 mm
Feature: UL 50E Type 1 rated safety door cover with a main door latch. Business Impact: Ensures regulatory compliance and standardized interlock installations across multiple panels. Application: Suitable for bayed VX enclosures and master-switch configurations from major brands. The result is faster commissioning and reduced rework during panel builds. Feature: IP55 protection when used with VX series enclosures, along with NEMA 12 compatibility. Business Impact: Protects control circuits from dust and water ingress, extending equipment life and reducing downtime. Application: Harsh factory environments and outdoor-adjacent installations where splash or dust exposure is routine. Feature: 1.5 mm sheet steel with powder-coated finish in RAL 7035. Business Impact: Delivers durable, corrosion-resistant enclosure accessories with a professional aesthetic, lowering maintenance costs. Application: Industrial environments requiring long service life and consistent appearance. Feature: Precise dimensions and complete supply contents. Business Impact: Simplifies logistics and on-site installation with defined footprint (Width 103 mm, Height 2,000 mm, Depth 600 mm) and included parts (main door lock, cover plate, assembly parts). Application: Quick retrofit into existing VX frames with tubular door profiles. Feature: UL 508 A compatibility note and cross-brand actuator testing. Business Impact: Supports safe integration with master switches from Allen Bradley, Square D, GE, Eaton, Siemens, reducing integration risk. Application: Control panel builds requiring verified interlock compatibility.
Get a Quick Quote for a Rittal 8951010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8951010?
Enquire Now
FAQs
Install on a single-door enclosure with a tubular door frame as specified by Rittal. The package includes a main door lock, cover plate, and assembly parts, helping streamline mounting. The product footprint (103 mm wide, 2,000 mm high, 600 mm deep) fits standard VX frames, reducing field modifications and downtime.
The VX 8951.010 is designed as an isolator door cover with UL 50E Type 1 rating and UL 508 A compatibility for panel safety. It includes a main door latch for compliant locking and has been tested for compatibility with master switches from Allen Bradley, Square D, GE, Eaton, and Siemens, ensuring reliable interlock performance.
The specification is tailored for VX series enclosures, providing IP55 protection in conjunction with VX frames and NEMA 12 compatibility when used with VX. For other enclosure families, verify compatibility with the frame and latch geometry to avoid misfit or compromised protection.
The VX 8951.010 dimensions are Width 103 mm, Height 2,000 mm, Depth 600 mm, with a weight of 18.2 kg per pack. Each pack includes one isolator door cover, main door lock, cover plate, and assembly parts, enabling straightforward warehouse handling and on-site installation.
Typical use cases include large panel builds requiring UL 50E Type 1 safety with consistent interlock behavior, master switches from major automation brands, and environments where IP55/NEMA 12 protection is needed. The solution reduces commissioning time, improves safety compliance, and supports durable, corrosion-resistant installations in harsh manufacturing settings.
