Rittal VX 8951.030 Isolator Door Cover - UL 50E Type 1
Part Number: 8951030
Quick Summary
The Rittal VX 8951.030 isolator door cover provides UL-listed safety locking for enclosures and bayed suites. In busy facilities, installers contend with persistent compliance pressures and the cost of unplanned downtime. The product delivers UL 50E Type 1 protection, IP55 in conjunction with VX enclosure frames, and NEMA 12 compatibility, ensuring dependable performance in demanding environments. It’s designed for quick, tool-free mounting on single-door systems and works with actuator levers for master switches from Allen-Bradley, Square D, GE, Eaton, and Siemens. Beyond safety, this cover helps reduce maintenance costs and protect sensitive control gear, while maintaining aesthetic consistency with RAL 7035 finishes. The result is safer operation, faster install cycles, and measurable uptime improvements for industrial plants.
Product Information
Extended Description

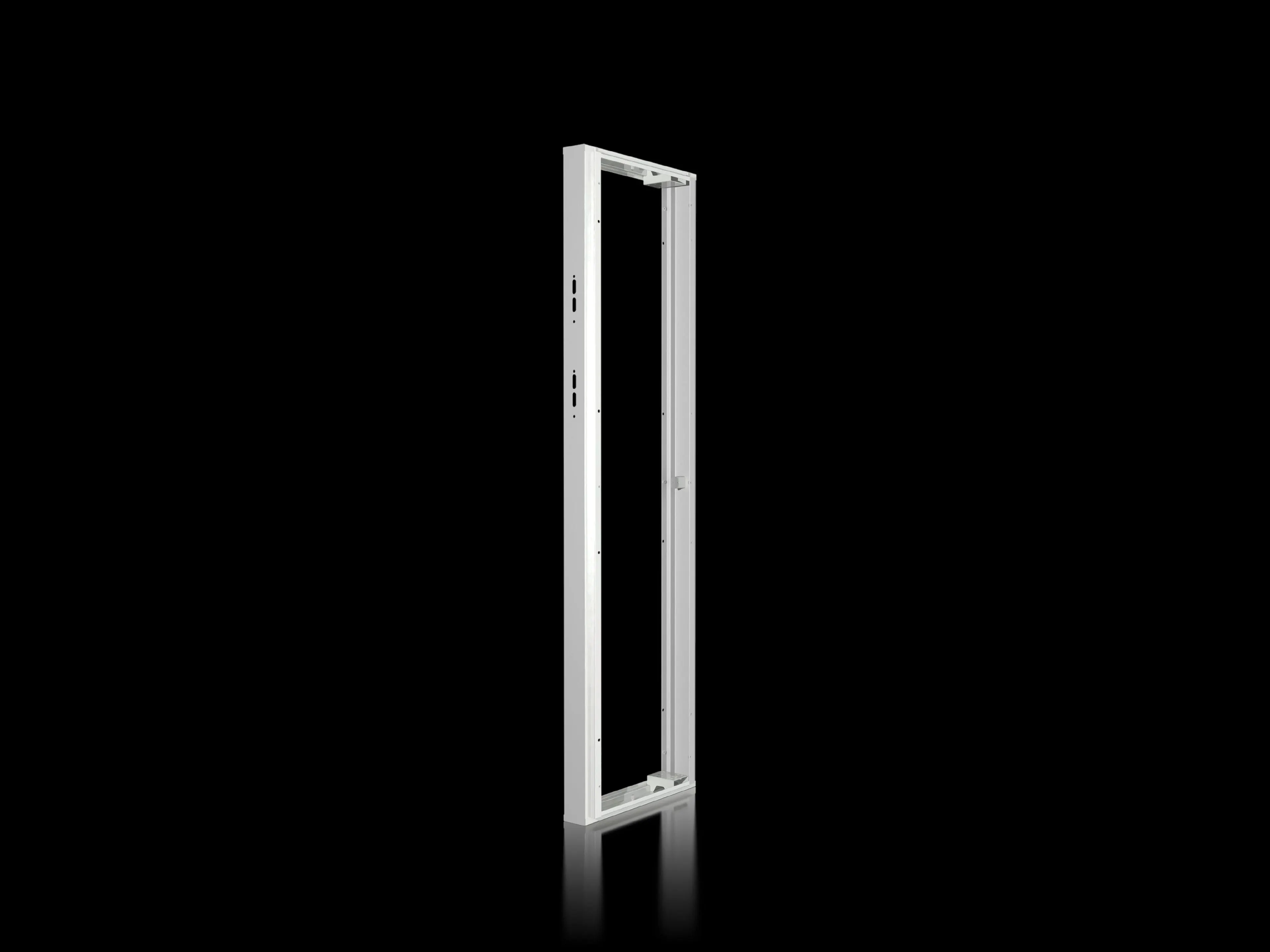

8951030 Rittal: VX Isolator door cover, WHD 103x1800x500 mm
Article number
VX 8951.030
Product description
Including main door latch for safety locking of enclosures and bayed enclosure suites in accordance with UL regulations. Tested in conjunction with an actuator lever for master switches from the following companies: Allen Bradley, Square D, General Electric, Eaton, Siemens.
Benefits
Meets the requirements of UL 508 A
Applications
Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04
Material
Sheet steel, 1.5 mm
Surface finish
Powder-coated
Colour
RAL 7035
Supply includes
Main door lock, cover plate and assembly parts.
Dimensions
Width:Â 103 mm | Height:Â 1,800 mm | Depth:Â 500 mm
Note
Cover may only be mounted on a single-door enclosure with tubular door frame
Type rating to UL 50E
Type 1
Protection category to IEC 60 529
IP 55 in conjunction with enclosures from the VX series
Protection category NEMA
NEMA 12 (in conjunction with enclosures from the VX series)
Packs of
1 pc(s).
Weight/pack
17 kg
Customs tariff number
73269098
EAN
4028177921047
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Isolator door cover, WHD 103x1800x500 mm
UL 50E Type 1 compliance reduces regulatory risk and ensures safe isolation of master switches in enclosure systems, enabling quick commissioning and consistent safety practices. This directly lowers the cost of non-compliance, minimizes rework, and accelerates project approval while aligning with common electrical code expectations in industrial environments. The IP55 protection (in conjunction with VX series enclosures) and NEMA 12 compatibility shield interior components from dust and moisture, extending service life and reducing maintenance intervals. The 1.5 mm sheet steel construction with a powder-coated finish in RAL 7035 delivers durable, corrosion-resistant panels that retain a uniform appearance across installations, even in high-traffic plant areas. Dimensions of 103 mm width, 1,800 mm height, and 500 mm depth ensure a precise, space-conscious fit for bayed enclosures. Weighing 17 kg per pack, the unit supports straightforward handling and safer installation. Compatibility with Allen-Bradley, Square D, GE, Eaton, and Siemens actuator levers simplifies integration with existing master-switch assemblies. The supply includes a main door lock, cover plate, and assembly parts, reducing field sourcing. Note: cover may only be mounted on a single-door enclosure with tubular door frame, helping to prevent misinstallation and warranty issues. These design choices collectively shorten installation time, improve safety margins, and support robust uptime metrics in production lines.
Get a Quick Quote for a Rittal 8951030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8951030?
Enquire Now
FAQs
To install the VX 8951.030, ensure you are mounting on a single-door enclosure with a tubular door frame. The kit includes the main door lock, cover plate, and assembly parts. Follow standard safety procedures, align with the 103 mm width and 1,800 mm height specifications, and secure the cover to the frame using the supplied hardware. Compatibility with common master-switch actuators speeds commissioning and reduces field errors.
Yes. The door cover has been tested for compatibility with master switches from major manufacturers, including Allen-Bradley, Square D, GE, Eaton, and Siemens. Applications listed include Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04, ensuring reliable integration with popular automation ecosystems and reducing integration risk during panel assembly.
The VX 8951.030 meets UL 50E Type 1 for enclosure safety, provides IP55 protection when used with VX series enclosures, and supports NEMA 12 configurations. It is designed to integrate with UL-compliant panels and offers robust protection in dusty or damp industrial environments, helping ensure ongoing regulatory compliance and equipment protection.
The door cover uses 1.5 mm sheet steel with a durable powder-coated finish in RAL 7035. This combination delivers high impact resistance and corrosion protection while maintaining a consistent, easy-to-clean appearance across heavy-usage areas. The cosmetic finish also helps keep enclosure interiors visually organized and compliant with standard industrial color schemes.
By simplifying safety-lock installation, reducing field errors, and enhancing protective ratings (UL 50E Type 1, IP55, NEMA 12), the VX 8951.030 lowers commissioning time and maintenance downtime. Its durable construction minimizes replacement needs, and compatibility with common actuator levers streamlines integration with existing master-switch configurations, contributing to improved uptime and lower total cost of ownership.
