Rittal VX 8952.030 Isolator Door Cover - UL 508 A
Part Number: 8952030
Quick Summary
Rittal VX 8952.030 Isolator Door Cover protects enclosures with UL 508 A safety locking for master switches. In demanding control environments, inconsistent locking performance and noncompliance can delay commissioning and raise risk. The unit provides IP55 protection and NEMA 12 compatibility, plus UL 50E Type 1 rating for safe, codes-compliant operation. With stainless steel construction and complete mounting hardware, it reduces installation time and ensures durable, scalable protection for VX enclosures. Designed to integrate with Allen-Bradley, Square D, GE, Eaton, and Siemens master switch setups, it supports a wide range of panel configurations, simplifying procurement and long-term maintenance for engineering teams.
Product Information
Extended Description

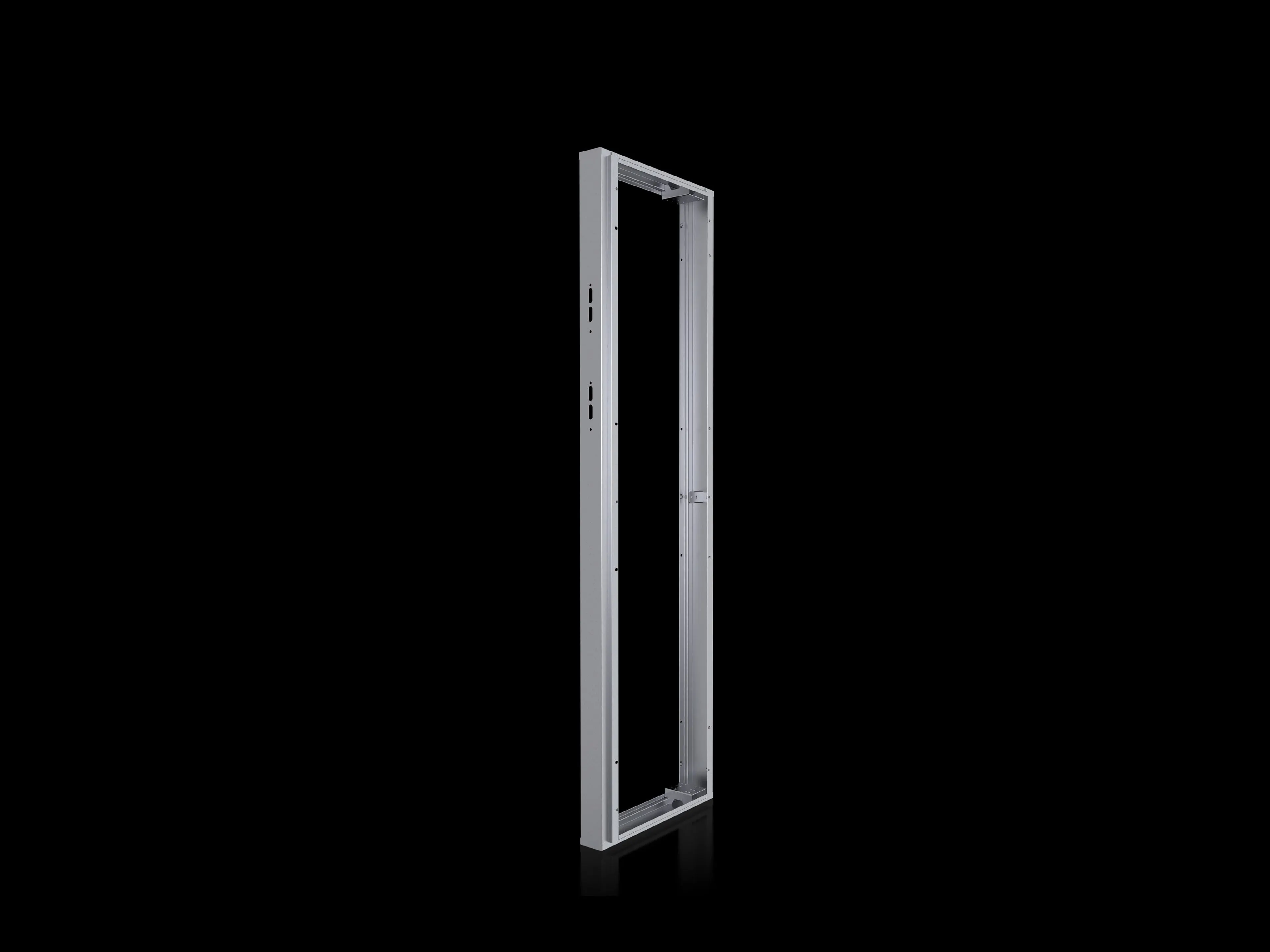

8952030 Rittal: VX isolator door cover, stainless steel, WHD 103x1800x500 mm
Article number
VX 8952.030
Product description
Including main door latch for safety locking of enclosures and bayed enclosure suites in accordance with UL regulations. Tested in conjunction with an actuator lever for master switches from the following companies: Allen Bradley, Square D, General Electric, Eaton, Siemens.
Benefits
Meets the requirements of UL 508 A
Applications
Allen Bradley: 1494 F-M1/P1/S1 and 140 U-K-FCX04
Material
Stainless steel 1.4301 (AISI 304), 1.5 mm
Supply includes
Main door lock, cover plate and assembly parts.
Dimensions
Width: 103 mm | Height: 1,800 mm | Depth: 500 mm
Note
Cover may only be mounted on a single-door enclosure with tubular door frame
Type rating to UL 50E
Type 1
Protection category to IEC 60 529
IP 55 in conjunction with enclosures from the VX series
Protection category NEMA
NEMA 12 (in conjunction with enclosures from the VX series)
Packs of
1 pc(s).
Weight/pack
17 kg
Customs tariff number
94039910
EAN
4028177944725
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX isolator door cover, stainless steel, WHD 103x1800x500 mm
Feature: Stainless steel 1.4301 (AISI 304) 1.5 mm provides robust corrosion resistance in harsh environments. Business Impact: Extends service life and reduces replacement costs in factory floors and outdoor installations. Application: Best suited for VX series enclosure accessories in demanding manufacturing settings. Feature: Dimensions of 103 mm width, 1800 mm height, 500 mm depth offer a precise fit with VX single-door frames. Business Impact: Accelerates installation, minimizes field adjustments, and supports standardized panel layouts. Application: Ideal for modular control cabinets and bayed enclosure suites. Feature: Includes main door lock, cover plate and assembly parts. Business Impact: Lowers BOM complexity and speeds on-site assembly, reducing installation labor. Application: Quick upgrade path for existing VX enclosures requiring UL-compliant safety locking. Feature: Compliance with UL 50E Type 1, IP55 (IEC 60529) and NEMA 12 protection. Business Impact: Ensures regulatory compliance, dust and splash protection, and safer operation. Application: Suitable for industrial control panels in dusty or damp environments. Feature: Tested in conjunction with master switches from Allen Bradley, Square D, General Electric, Eaton, Siemens. Business Impact: Proven interoperability reduces integration risk and commissioning time. Application: Supports diverse control architectures and supplier ecosystems. Feature: Installation note indicates mounting on single-door enclosures with tubular door frames. Business Impact: Prevents improper mounting, reducing warranty and service calls. Application: Guides correct installation within VX series families.
Get a Quick Quote for a Rittal 8952030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8952030?
Enquire Now
FAQs
The VX 8952.030 ships with a main door lock, cover plate and assembly parts designed for single-door VX enclosures with tubular door frames. The 103 mm by 1800 mm by 500 mm footprint integrates directly with VX frames, simplifying mounting and reducing field modification time. Follow the included hardware and note the single-door requirement to ensure proper alignment and UL compliance.
This door cover configuration supports UL 50E Type 1 and UL 508 A safety requirements, with IP55 protection per IEC 60529 and NEMA 12 compatibility when used with VX series enclosures. These ratings help ensure enclosure integrity against dust, splash, and routine dust/water exposure in industrial environments.
Yes. The design is tested for compatibility with master switches from Allen-Bradley, Square D, GE, Eaton, and Siemens, including configurations like 1494 F-M1/P1/S1 and 140 U-K-FCX04. This interoperability minimizes integration risk and supports diverse control architectures in mixed-brand facilities.
The door cover is made from stainless steel 1.4301 (AISI 304) with a thickness of 1.5 mm. It measures 103 mm in width, 1,800 mm in height, and 500 mm in depth, providing a precise fit for VX single-door frames and ensuring structural durability in demanding environments.
Installing this cover improves operator safety through UL-certified locking, reduces downtime by streamlining installation and maintenance, and ensures long-term compliance with industry standards. Its compatibility with VX enclosures and major master-switch ecosystems also simplifies procurement and supports scalable, future-proof control panels.
