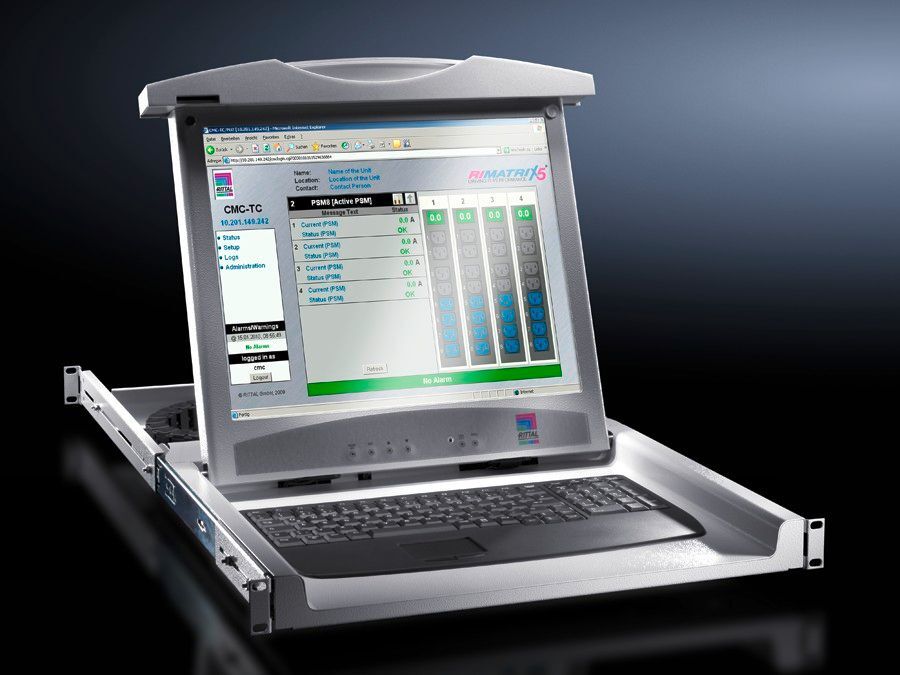

Rittal 9055410 Monitor/Keyboard Unit - 17-inch TFT Display
Part Number: 9055410
Manufacturer
Rittal
Part number
9055410
Category
Alt Part Number
DK 9055.410
Quick Summary
Rittal 9055410 monitor/keyboard unit is a compact 1U rack-mounted HMI solution for industrial control cabinets. In tight automation spaces, engineers struggle with accessibility, cable routing, and maintenance downtime. It aligns with ETIM 9 EC001428 and ECLASS 8.0 19200201 to ensure procurement consistency, while supporting multilingual operation. With a 17-inch display, German/English keyboard layouts, and broad connectivity, it speeds commissioning and reduces wiring complexity, delivering measurable business value.
Product Information
Extended Description
9055410 Rittal: DK Monitor/keyboard unit, WHD: 482.6 mm (19")x1 Ux680 mm, 100-240 V, 1~, 50/60 Hz, german, RAL 9005
Article number
DK 9055.410
Product description
The unit is housed in a pull-out drawer. The monitor can be flipped up and the drawer latches into the end position. This means that the unit only requires 1 U in the 482.6 mm (19") rack.
Benefits
Analog and digital video input
Colour
RAL 9005
Supply includes
Monitor/keyboard unit, 1 U | VGA cable | DVI cable | USB cable | Earthing-pin mains cable | with 17" TFT display and VGA/DVI connection | 2 PS/2 cables | Keyboard | with integral touchpad
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Max. power consumption with closed monitor unit
1 W
Max. power consumption in operation
32 W
Interfaces
VGA (D-Sub HD 15-pole)
Connector (type)
IEC 320 connector C14
Layout
German
Note on Model No.
Extended delivery times.
Dimensions
Width: 482.6 mm | Depth: 680 mm
Operating temperature range
5 °C...45 °C
Installation dimensions
Installation depth (min.): 680 mm | Installation depth (max.): 850 mm
Display features
Diagonal: 432 mm (17") | Format: 4 : 3 | Contrast ratio: Contrast ratio approx. 1000:1 | Display brightness: 350 cd/m² | Resolution of display: 1280 x 1024 pixels | Number of colours: 16,700,000
Packs of
1 pc(s).
Weight/pack
18.8 kg
Customs tariff number
85286200
EAN
4028177638396
ETIM 9
EC001428
ECLASS 8.0
19200201
Product description
DK Monitor/keyboard unit, WHD: 482.6 mm (19")x1 Ux680 mm, 100-240 V, 1~, 50/60 Hz, german, RAL 9005
The 1U rack-mountable chassis saves valuable enclosure space while delivering a complete HMI in a single unit, reducing cabinet depth and simplifying installation. This directly lowers hardware costs and accelerates project timelines as you deploy with standard VESA-compatible mounting and familiar 19" rack infrastructure. The integrated 17-inch TFT display provides a clear 1280x1024 resolution, 350 cd/m² brightness, and a 1000:1 contrast ratio, improving operator throughput and reducing eye strain in long shifts. A German/English keyboard option with an integrated touchpad supports multilingual operations and ergonomic input, boosting operator accuracy and reducing input errors. Connectivity includes VGA, DVI, USB, and PS/2 interfaces, plus a C14 power connector, enabling straightforward integration with existing control networks and peripherals. The unit’s wide operating voltage (100–240 V) and 5–45 °C range support robust factory environments, while the 680–850 mm installation depth accommodates a variety of cabinet layouts. Low idle power (1 W) and up to 32 W in operation contribute to lower running costs and cooler cabinet temperatures, improving overall system efficiency. Designed for rugged industrial use, its color (RAL 9005) and durable construction facilitate easy identification and reliable service in busy production lines, with ETIM/ECLASS classifications ensuring standardized procurement and replacement tracking. Installation and maintenance are further simplified by the included cables and the compact, single-unit design that minimizes cable runs and reduces field wiring complexity.
Get a Quick Quote for a Rittal 9055410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9055410?
Enquire Now
FAQs
The unit fits a standard 19'' cabinet and occupies 1U of height with a footprint of 482.6 mm width and 680 mm depth. Installation depth can be adjusted between 680 and 850 mm to accommodate varied cabinet configurations, enabling straightforward retrofits and scalable rack layouts.
It operates on 100–240 V, 1~, 50/60 Hz, with a maximum power consumption of 32 W in operation and about 1 W in sleep/idle. The 17-inch TFT display provides 1280x1024 resolution, 350 cd/m² brightness, and a 1000:1 contrast ratio, supporting 16.7 million colors for clear operator visibility.
Yes. The supply includes a monitor/keyboard unit with an English or German keyboard layout and an integral touchpad, designed to support multilingual operation in global manufacturing environments and ease operator training.
The DK 9055.410 provides VGA (D-Sub 15), DVI, USB, and PS/2 interfaces, plus an IEC 320 C14 power connector. It ships with cables for VGA, DVI, USB, PS/2, and an earthing-pin mains lead, along with the monitor/keyboard unit, enabling plug-and-play integration into existing control systems.
Low idle power, compact 1U form factor, and integrated components reduce wiring and cabinet space, lowering installation and energy costs. The rugged, standardized design and common ETIM/ECLASS classifications simplify procurement and spares management, delivering faster maintenance cycles and improved system uptime in automated manufacturing lines.
