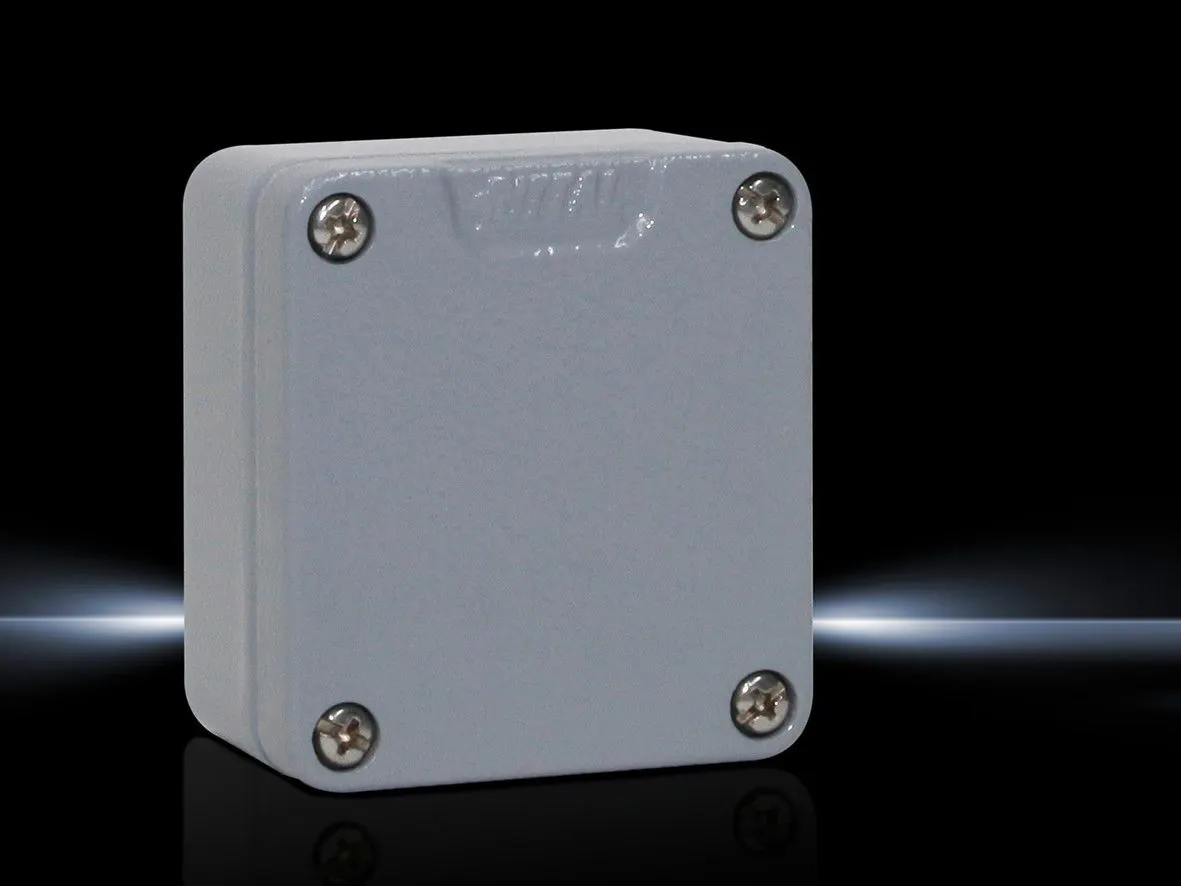

Rittal GA 9101.210 Cast aluminium enclosure - IP66
Part Number: 9101210
Manufacturer
Rittal
Part number
9101210
Alt Part Number
GA 9101.210
Quick Summary
Rittal GA 9101.210 cast aluminium enclosure protects sensitive electronics in compact control panels and harsh environments. Engineers often struggle with ingress, corrosion, and space constraints when upgrading legacy cabinets. This enclosure delivers IP66 protection, NEMA 4 suitability, and IK08 impact resistance, all in a rugged aluminium body. With a textured finish in RAL 7001 and a cover-included kit, installation is streamlined and maintenance becomes simpler. From a procurement perspective, its 58x64x34 mm WHD footprint and included accessories reduce mounting time and spare-part variety, delivering lower total cost of ownership and faster deployment of control solutions.
Product Information
Extended Description
9101210 Rittal: GA Cast aluminium enclosure, WHD: 58x64x34 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9101.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width:Â 58 mm | Height:Â 64 mm | Depth:Â 36 mm
Basic material
Cast aluminium
Packs of
5 pc(s).
Weight/pack
0.825 kg
Customs tariff number
84879090
EAN
4028177145337
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 58x64x34 mm, Cast aluminum, without mounting plate, with cover
Feature → Business Impact → Application GA 9101.210 uses a cast aluminium enclosure with textured paint and RAL 7001 colour for durable outdoor-ready protection. This combination reduces corrosion risk in harsh environments and extends product life, delivering lower maintenance costs for outdoor control cabinets and industrial automation panels. Application: outdoor weatherproof housings for field devices in automated processes. Feature → Compatibility → Installation advantages includes supply that covers enclosure with cover, captive screws, rails mounting screws, and PE conductor connection screw. Benefit: faster assembly, fewer loose components, and improved mounting reliability for DIN-rail based interiors. Application: panel builders seeking faster time-to-value on new equipment installations. Feature → Protection → IP 66 and NEMA 4 ratings with IK08 impact resistance give robust ingress protection and mechanical resilience. Benefit: compliance with harsh-environment standards and reduced risk of downtime in dusty or wash-down areas. Application: HVAC controls, water treatment, and process automation zones. Feature → Dimensions and form factor provide WHD of 58x64x34 mm, ensuring a compact footprint. Benefit: enables dense control layouts and space optimization in compact control cabinets. Application: small-form-factor controller enclosures and instrumentation housings. Feature → Supply includes: enclosure with cover, cover screws, captive screws, rails screws, and PE conductor connection screw. Benefit: minimizes accessory planning, improves install-time predictability, and reduces field service calls. Application: turnkey enclosure solutions for panel assembly teams. Feature → Material and finish: cast aluminium with CR cellular rubber seal and textured paint. Benefit: long-term corrosion resistance, reliable sealing, and consistent aesthetics in industrial environments. Application: control cabinet housings exposed to dust, moisture, and temperature swings. Feature → Certifications and standards: NEMA 4, IP 66, IK08, ETIM EC000261, ECLASS 27180101. Benefit: seamless integration into compliant automation projects and easy cross-reference in procurement catalogs. Application: regulated industries requiring traceable part data and standard classifications.
Get a Quick Quote for a Rittal 9101210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9101210?
Enquire Now
FAQs
GA 9101.210 is supplied with a cover and a dedicated PE conductor connection screw, plus mounting screws for rails. Installers should verify enclosure orientation and ensure the PE connection is securely bonded to prevent stray currents. The compact WHD footprint (58x64x34 mm) supports space-constrained panels, and the included screws simplify rail mounting, reducing field-time and errors.
Key performance specs include IP 66 ingress protection and NEMA 4 enclosure rating, IK08 impact resistance, and a textured cast aluminium body with CR cellular rubber seal. Dimensions are Width 58 mm, Height 64 mm, and Depth 36 mm. The material choice provides corrosion resistance, while the seal and cover assembly support reliable environmental protection in demanding environments.
Yes. The GA 9101.210 is designed for harsh environments with IP66 and NEMA 4 ratings, plus IK08 impact protection, making it suitable for outdoor applications and wash-down areas. Its rugged cast aluminium construction and rubber seal deliver durable protection against dust, moisture, and mechanical shocks in industrial settings.
The enclosure carries NEMA 4 and IEC IP66 protection, IK08 impact protection, and is classified under ETIM EC000261 and ECLASS 27180101. These certifications support reliable procurement and integration into regulated automation projects, with standard product data facilitating cataloging and supplier comparisons.
The enclosure delivers measurable ROI through reduced maintenance costs due to corrosion resistance, faster installation thanks to included hardware, and minimized spare parts since essential components are bundled. Its compact footprint enables denser panel layouts, potentially lowering enclosure footprint costs and enabling quicker project delivery without compromising protection.
