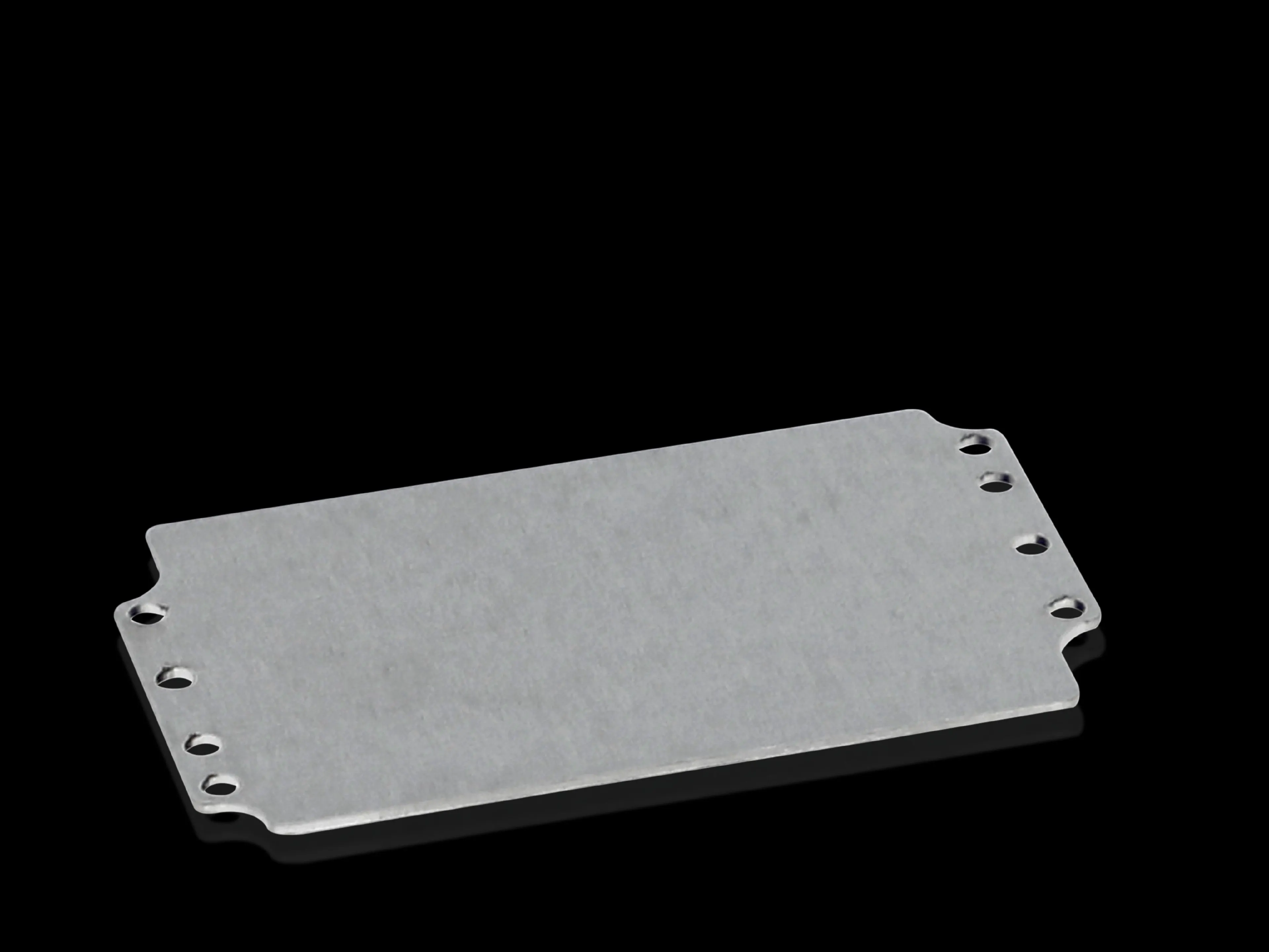

Rittal GA 9105.700 Mounting Plate - GA 125x80 Fit
Part Number: 9105700
Manufacturer
Rittal
Part number
9105700
Alt Part Number
GA 9105.700
Quick Summary
Rittal GA 9105.700 mounting plate enables universal interior installation with mounting holes for GA enclosures, delivering flexible accessory mounting in compact spaces. Engineers often face alignment challenges that slow assembly and jeopardize reliability when interior components are not securely positioned. This plate uses sheet steel with a zinc-plated finish, and data references ETIM EC000213, ECLASS 27409216, plus a cradle-to-gate PCF of 3.3 kg CO2 eq (Cat B) to support procurement and sustainability goals. For procurement efficiency and installation convenience, it fits GA enclosures with width 125 mm and height 80 mm, and ships in packs of ten, streamlining stocking and repeatable installations. Overall, it’s a reliable interior mounting solution for GA enclosure accessories and general enclosure optimization.
Product Information
Extended Description
9105700 Rittal: GA Mounting plate, WH: 114x69 mm
Article number
GA 9105.700
Product description
For universal interior installation, with mounting holes.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions mounting plate (W x H)
114 mm x 69 mm
To fit
Enclosure type: GA | Width: = 125 mm | Height: = 80 mm
Packs of
10 pc(s).
Weight/pack
0.87 kg
PCF per pack (cradle-to-gate)
3.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177154261
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
GA Mounting plate, WH: 114x69 mm
Feature: Universal interior mounting holes enable flexible accessory placement and precise alignment inside GA enclosures. Business Impact: faster assembly, fewer rework cycles, and repeatable device positioning across multiple builds, improving overall install quality. Application: ideal for GA footprint 125 mm by 80 mm when mounting terminals, relays, or terminal blocks. Feature: Durable sheet steel with zinc-plated finish provides corrosion resistance and long service life in harsh industrial environments. Business Impact: reduces maintenance stops and extends enclosure integrity, lowering lifecycle costs. Application: suitable for demanding factory floors and outdoor-rated installations where environmental exposure is a concern. Feature: Precisely sized mounting plate (114x69 mm) ensures a secure fit within GA enclosures designed for 125x80 mm interiors. Business Impact: simplifies planning, reduces misalignment risk, and speeds up reconfiguration tasks. Application: supports quick rework and scalable cabinet layouts. Feature: Pack of 10 mounting plates and 0.87 kg weight per pack optimize logistics and stocking. Business Impact: lowers per-unit cost, improves inventory management, and enables just-in-time procurement. Application: suitable for maintenance teams and distributors stocking common enclosure accessories. Feature: Cradle-to-gate PCF of 3.3 kg CO2 eq (Cat B) reflects a measured environmental footprint. Business Impact: supports sustainability reporting and corporate targets while maintaining performance. Application: helps buyers meet green procurement requirements without compromising functionality.
Get a Quick Quote for a Rittal 9105700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9105700?
Enquire Now
FAQs
To install GA 9105.700, align the plate with the interior mounting holes of the GA enclosure, secure using standard hardware through the pre-defined holes, and verify alignment before mounting devices. The plate measures 114x69 mm and fits GA enclosures with a 125x80 mm footprint, enabling quick, repeatable interior configurations.
The mounting plate is made from sheet steel with a zinc-plated finish, providing corrosion resistance and robust mechanical strength. This combination reduces maintenance needs, preserves enclosure integrity, and supports long service life in demanding settings while remaining compatible with common mounting hardware.
Yes. The GA 9105.700 is designed for universal interior installation in GA enclosures and precisely fits GA footprints of 125 mm width by 80 mm height. Its 114x69 mm plate area aligns with standard interior mounting patterns, enabling secure, repeatable device placement inside the enclosure.
The product data references ETIM 9 EC000213 and ECLASS 8.0 code 27409216, supporting procurement classification. It also notes sustainability metrics such as PCF 3.3 kg CO2 eq (Category B). There is no explicit CE or IP rating listed in the provided data, so verify project requirements if those certifications are mandatory.
The plate ships in packs of 10 and weighs 0.87 kg per pack, simplifying stocking and logistics for maintenance teams. It carries a cradle-to-gate PCF of 3.3 kg CO2 eq (Category B), enabling greener procurement decisions without compromising fit or performance in GA enclosure interiors.
