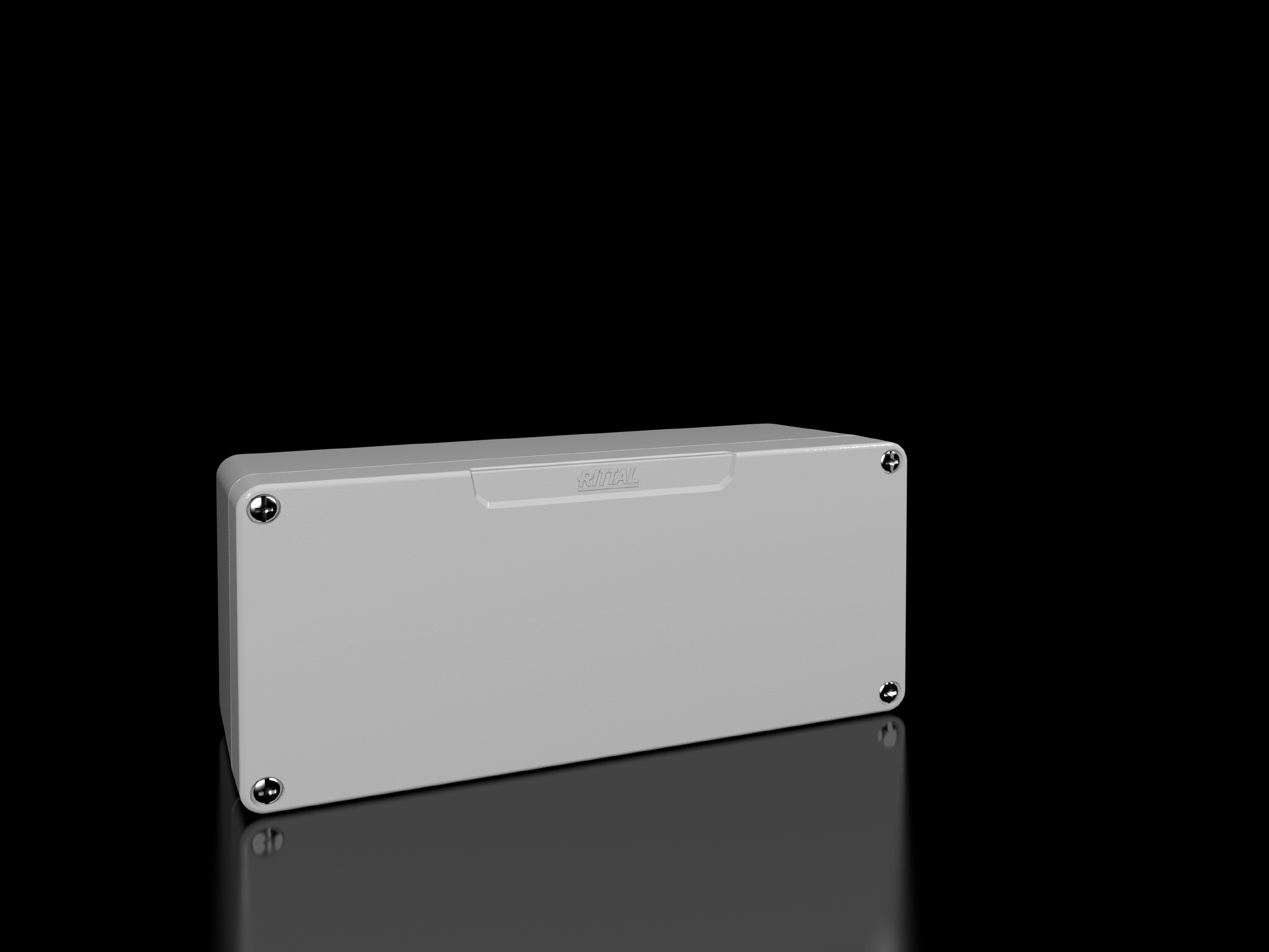

Rittal GA 9106.210 Cast Aluminium Enclosure - IP66
Part Number: 9106210
Manufacturer
Rittal
Part number
9106210
Alt Part Number
GA 9106.210
Quick Summary
Rittal GA 9106.210 is a spray-finished cast aluminium enclosure designed for rugged industrial control applications. It protects sensitive electronics while delivering a compact footprint for tight panels and constrained installations. Engineers often struggle with ingress protection, corrosion, and mounting flexibility in harsh environments, which this enclosure addresses with IP66, NEMA 4, and IK08 protection. The unit’s WHD of 175x80x57 mm and textured RAL 7001 finish support durable, maintenance-friendly deployment. Supplied with a cover, captive screws, and a PE conductor connection, it also aligns with ETIM EC000261 and ECLASS 27180101 standards, ensuring quick procurement and easy rail compatibility. GA 9106.210 translates to faster, reliable installations and lower lifecycle costs.
Product Information
Extended Description
9106210 Rittal: GA Cast aluminium enclosure, WHD: 175x80x57 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9106.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width:Â 175 mm | Height:Â 80 mm | Depth:Â 58 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
0.56 kg
Customs tariff number
84879090
EAN
4028177145382
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 175x80x57 mm, Cast aluminum, without mounting plate, with cover
Feature: Cast aluminium enclosure with textured paint and a CR cellular rubber cord seal. Business Impact: This combination provides robust corrosion resistance and reliable ingress protection for electronics in challenging environments. Application: Ideal for automation controllers and PLCs in industrial plants, conveyors, and process lines. Feature: IP66 protection and NEMA 4 rating with IK08 impact resistance. Business Impact: This dual rating ensures reliable operation in rain, washdown, and dusty settings while withstanding accidental contact. Application: Great for outdoor enclosures, washdown areas, and assembling in harsh factories. Feature: Dimensions 175x80x58 mm and 0.56 kg weight per pack; supply includes enclosure with cover, captive screws, rails screws, and a PE grounding screw. Business Impact: Compact size reduces enclosure footprint and simplifies logistics and installation in tight panels. Application: Fits standard control cabinets and supports rail-based components. Feature: Mounting and grounding provisions including screws for PE conductor and cover screws captive. Business Impact: Speeds up installation, reduces hardware loss, and ensures safe grounding in compliance with electrical codes. Application: Useful when retrofitting legacy panels or standard automation enclosures. Feature: Color RAL 7001 and textured finish; packaging includes 1 piece per pack. Business Impact: A consistent appearance improves traceability and reduces maintenance cost through easier cleaning and identification. Application: Industrial environments where corrosion resistance and aesthetics matter.
Get a Quick Quote for a Rittal 9106210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9106210?
Enquire Now
FAQs
GA 9106.210 ships with a cover and captive cover screws, plus screws for attaching support rails and a PE grounding screw. It is supplied without a mounting plate, so you can add your own rail system to match existing panels. This setup accelerates retrofits and keeps wiring neat by enabling standard rail compatibility and quick mounting.
GA 9106.210 uses a cast aluminium enclosure and a cast aluminium cover with an all-round CR rubber seal, providing robust corrosion resistance. It delivers IP66 protection and NEMA 4 enclosure rating, plus IK08 impact resistance, ensuring reliability in dusty, wet, and industrial environments, including washdown zones.
Yes. With IP66 and NEMA 4 protection, a textured finish in RAL 7001, and the durable cast aluminium construction, GA 9106.210 is well suited for outdoor or washdown areas where moisture, dust, and debris are concerns. It also withstands routine cleaning and hose-down procedures without compromising internal electronics.
This enclosure complies with NEMA 4 and IEC IP66 protection ratings, IK08 impact resistance, and references ETIM EC000261 and ECLASS 27180101. The EAN 4028177145382 and customs tariff 84879090 support procurement and import compliance, ensuring alignment with common B2B supplier requirements.
Using GA 9106.210 reduces maintenance and downtime through durable ingress protection and long service life. Quick installation is supported by included hardware and standard rail compatibility, lowering labor costs and speeding commissioning in new builds or retrofits. Coupled with predictable procurement and compatibility, it helps minimize total cost of ownership in harsh environments.
