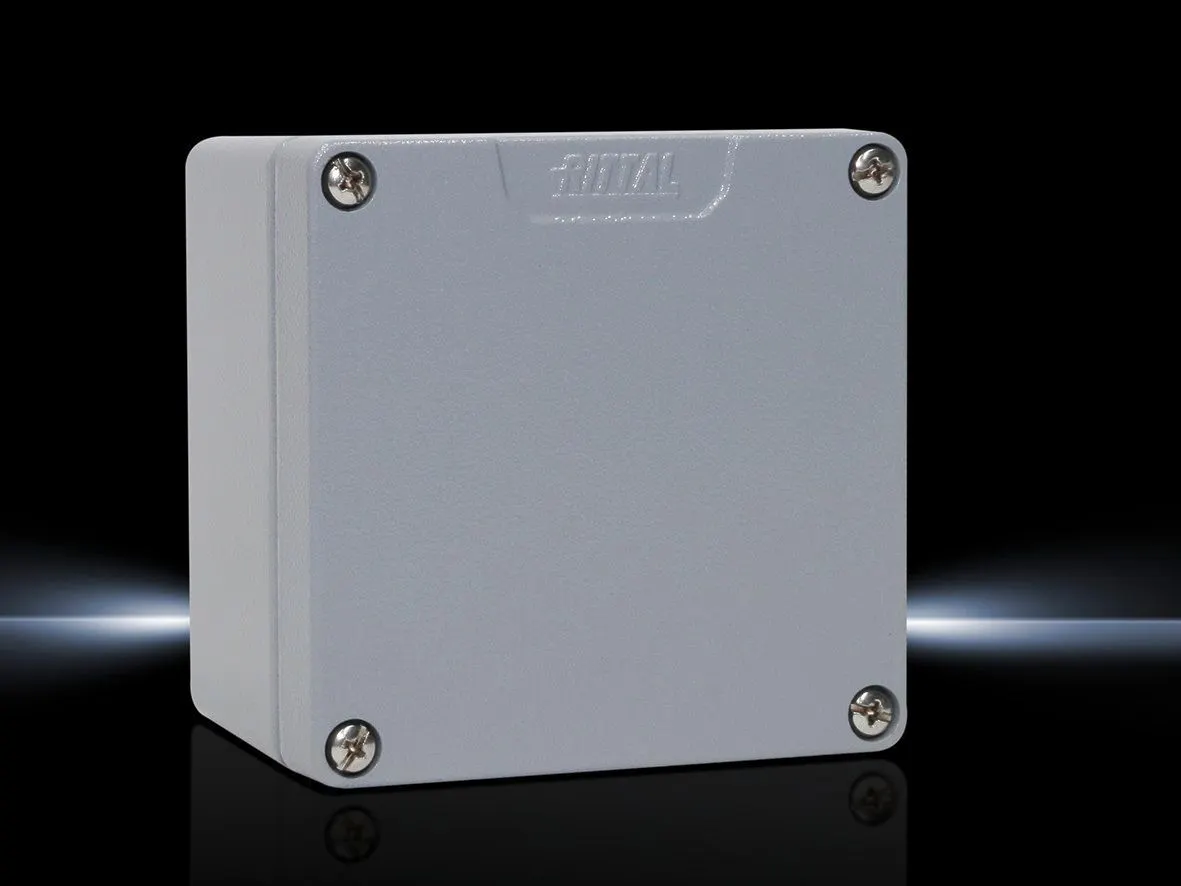

Rittal GA 9108.210 Enclosure - IP66 NEMA4 IK08 CastAluminium
Part Number: 9108210
Manufacturer
Rittal
Part number
9108210
Alt Part Number
GA 9108.210
Quick Summary
Rittal GA 9108.210 Enclosure protects sensitive electronics in compact electrical cabinets. Engineers often face ingress, corrosion, and mounting constraints when deploying control gear in harsh environments. This spray-finished cast aluminium enclosure delivers IP66 sealing, NEMA 4 protection, and IK08 impact resistance, keeping internal components safe. With a 122x120x80 mm WHD footprint and textured RAL 7001 finish, it fits tight panel spaces while providing reliable weather and dust protection. Supply includes cover screws, captive fixings, and hardware for attaching support rails and a PE connection, simplifying installation. Designed for rugged automation panels, GA 9108.210 supports faster commissioning, reduced maintenance, and longer service life.
Product Information
Extended Description
9108210 Rittal: GA Cast aluminium enclosure, WHD: 122x120x80 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9108.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 122 mm | Height: 120 mm | Depth: 82 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
1.1 kg
Customs tariff number
84879090
EAN
4028177145405
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 122x120x80 mm, Cast aluminum, without mounting plate, with cover
Feature: Cast aluminium enclosure with an all-round CR cellular rubber seal provides strong corrosion resistance and a reliable moisture barrier. Business impact: This reduces maintenance cycles, minimizes field failures, and lowers total cost of ownership in outdoor and wash-down environments. Application: Ideal for compact control panels, automation cabinets, and field-mounted electronics in manufacturing plants. Feature: IP66 protection with NEMA 4 rating ensures robust ingress protection against dust and water. Business impact: Enables regulatory compliance and uptime in challenging environments, reducing unplanned repairs. Application: Enclosures for outdoor controls, food industry equipment, and outdoor machines subject to cleaning cycles. Feature: IK08 impact resistance and textured paint enhance exterior durability. Business impact: Heavily reduces cosmetic and structural wear in busy facilities; extends service life with minimal repainting. Application: Machine guards, workshop enclosures, and rugged process lines. Feature: Supplied with cover screws captive, screws for attaching support rails, and a PE conductor connection. Business impact: Speeds installation, improves grounding reliability, and simplifies service access. Application: Retrofit projects and new builds requiring quick assembly and compliant earthing. Feature: WHD 122x120x80 mm dimensions and cast aluminium construction deliver compact yet sturdy housing. Business impact: Maximizes panel density, supports standard mounting options, and ensures compatibility with common accessories. Application: Small control panels, signal interfaces, and compact drive electronics inside industrial cabinets.
Get a Quick Quote for a Rittal 9108210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9108210?
Enquire Now
FAQs
The GA 9108.210 ships with captive cover screws and screws for attaching support rails, enabling both fixed mounting and DIN-rail style installation where space allows. The 122x120x80 mm footprint supports compact layouts, and standard mounting rails integrate with common automation cabinets. For service access, the cover is removable using the supplied fasteners, reducing downtime.
GA 9108.210 offers IP66 protection and NEMA 4 listing, providing seal integrity against dust and water ingress. It also features IK08 impact resistance for mechanical protection. These ratings support reliable operation in harsh environments, including outdoor installations and wash-down areas, while maintaining enclosure integrity and component safety.
Yes. The enclosure’s IP66 and NEMA 4 ratings, combined with corrosion-resistant cast aluminium construction, make it well suited for outdoor control panels and exposed equipment. The textured paint finish helps resist wear, while the robust seal keeps internal electronics protected during variable weather conditions and routine wash-down cycles.
The enclosure has WHD dimensions of 122x120x80 mm and a weight of approximately 1.1 kg per pack. It is made from cast aluminium with a textured finish in RAL 7001. Supplied components include the enclosure with cover and captive screws, plus hardware for rails attachment and PE grounding connections for safe installations.
GA 9108.210 provides long-term cost savings through corrosion resistance, durable sealing, and low-maintenance exterior. Its quick-install hardware reduces commissioning time, while reliable IP66/NEMA 4 protection minimizes downtime from ingress-related faults. The combination of rugged build and compact footprint supports higher panel density and lower total cost of ownership over the product life cycle.
