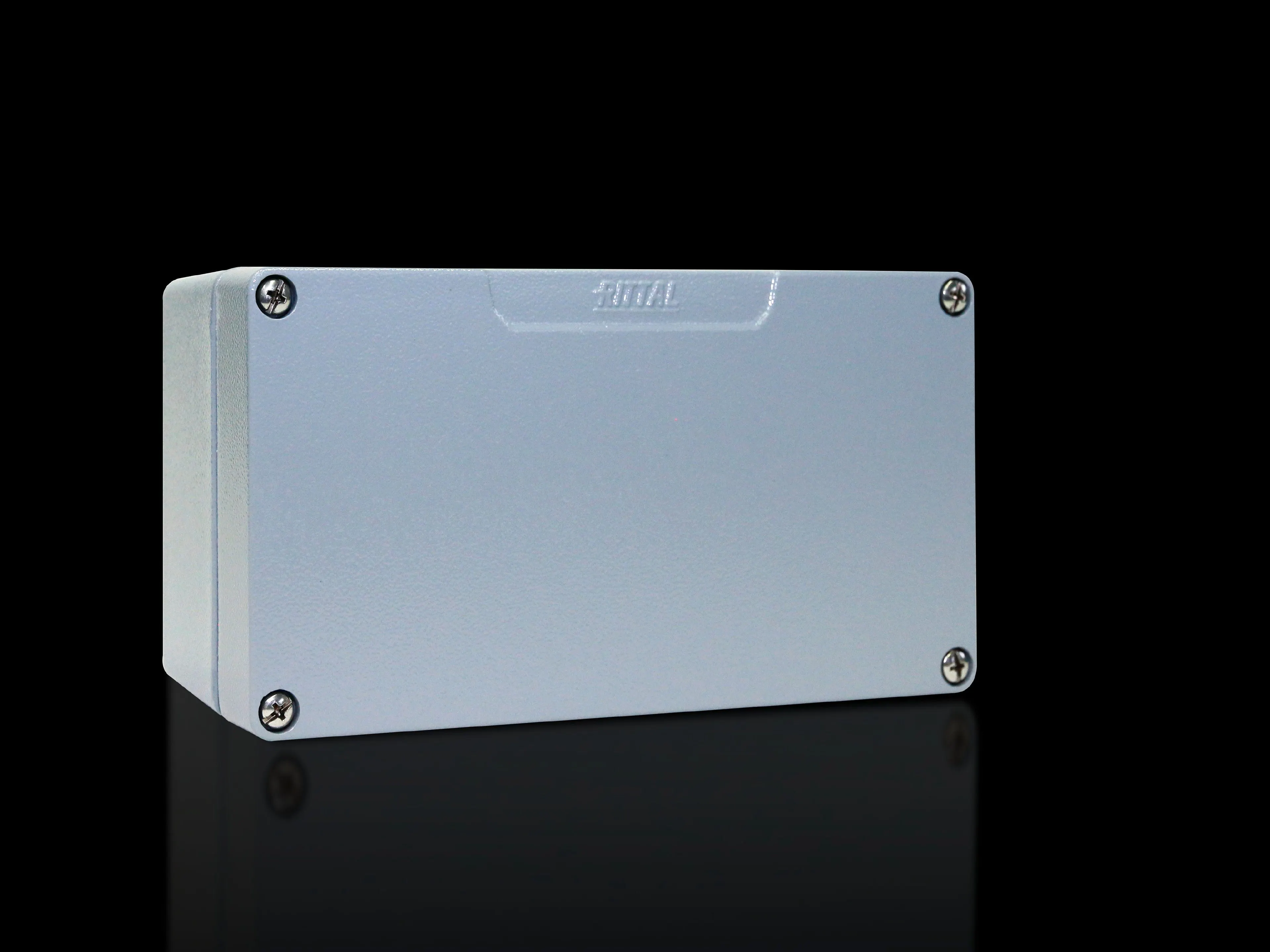

Rittal GA 9110.210 Enclosure, IP66 Protection
Part Number: 9110210
Manufacturer
Rittal
Part number
9110210
Alt Part Number
GA 9110.210
Quick Summary
Rittal GA 9110.210 Enclosure provides rugged, corrosion-resistant protection for electrical components in outdoor and industrial control environments. Many enclosures compromise sealing, mounting flexibility, or installation time, leading to costly downtime. This model delivers IP66 protection, NEMA 4 compatibility, and IK08 shock resistance, ensuring reliability in harsh environments. Its cast aluminium construction and textured finish simplify mounting and long-term maintenance, while the included cover and hardware speed installation. For engineers and procurement teams, GA 9110.210 combines rugged performance with predictable lead times, standardized mounting provisions, and compliance data that streamline tendering, budgeting, and installation planning.
Product Information
Extended Description
9110210 Rittal: GA Cast aluminium enclosure, WHD: 220x120x91 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9110.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 220 mm | Height: 120 mm | Depth: 93 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
1.75 kg
Customs tariff number
84879090
EAN
4028177145412
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 220x120x91 mm, Cast aluminum, without mounting plate, with cover
Feature → Cast aluminium enclosure with IP66 protection, NEMA 4 compatibility, and IK08 impact resistance. Business Impact → Delivers robust ingress protection and high mechanical resilience, reducing downtime and component failures in exposed environments. Application → Suitable for outdoor control panels, weather-exposed machinery, and process housings requiring durable enclosure solutions. Feature → Dimensions and weight: WHD 220x120x91 mm, weight 1.75 kg per pack (1 pc), includes cover and rail screws. Business Impact → Facilitates precise space planning, quicker assembly, and easier logistics with predictable packaging. Application → Ideal for compact PLC housings and control panels where space is at a premium. Feature → Seal and finish: CR cellular rubber cord seal around the cover; textured paint finish in RAL 7001. Business Impact → Superior ingress protection and wear resistance, extending service life in harsh conditions. Application → Environments with dust, moisture, and temperature variation, including outdoor plants and wash-down areas. Feature → Supplied accessories: cover screws, captive screws, screws for attaching support rails, and PE conductor connection screw. Business Impact → Reduces BOM search time and installation risk, enabling faster field deployment. Application → Panel builders and integrators who need a ready-to-install enclosure with essential mounting hardware. Feature → Material and color: Cast aluminium body with textured paint in RAL 7001. Business Impact → Consistent appearance, UV and weather resistance, and compliance with plant color standards. Application → Industrial installations where aesthetics and durability matter, including retrofit projects and OEM housings.
Get a Quick Quote for a Rittal 9110210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9110210?
Enquire Now
FAQs
GA 9110.210 is supplied with cover screws, captive screws, and screws for attaching support rails, plus a PE conductor connection screw, eliminating the need to source hardware separately. Its compact WHD 220x120x91 mm footprint fits common DIN-rail layouts and panel enclosures, while the option to install without a mounting plate simplifies retrofits for existing frames. For best results, combine with compatible DIN rails and ensure proper gasket seating for IP66 integrity.
The enclosure delivers IP66 ingress protection, NEMA 4 compatibility, and IK08 impact resistance, backed by a textured cast aluminium body and CR cellular rubber seal around the cover. This combination provides reliable weather and dust resistance, protection against shocks, and a long service life in wash-down and dusty industrial environments, reducing maintenance cycles and extending component life.
Yes. The GA 9110.210 enclosure is designed for outdoor and harsh indoor settings, offering IP66/NEMA 4 protection and IK08 shock resistance. Its rugged cast aluminium construction, along with included hardware for quick mounting, makes it a strong choice for PLCs, drives, and control electronics exposed to temperature fluctuations, moisture, and mechanical stress.
GA 9110.210 features IP66 protection, NEMA 4 compatibility, and IK08 impact resistance, with a textured paint finish in RAL 7001. It comes with an enclosure and cover, cover screws, captive screws, rail-attaching screws, and a PE conductor screw. ETIM and ECLASS identifiers are included for procurement systems, and the product is supplied with a valid EAN (4028177145412).
Choosing GA 9110.210 can lower total cost of ownership through reduced maintenance, longer service life, and faster installation thanks to included hardware. The rugged IP66/NEMA 4 rating protects critical electronics in challenging environments, minimizing downtime. Its predictable packaging and standard mounting provisions also simplify procurement, budgeting, and installation planning for OEMs and integrators.
