Rittal GA 9111.210 Enclosure - IP66 Cast Aluminium NEMA 4
Part Number: 9111210
Manufacturer
Rittal
Part number
9111210
Alt Part Number
GA 9111.210
Quick Summary

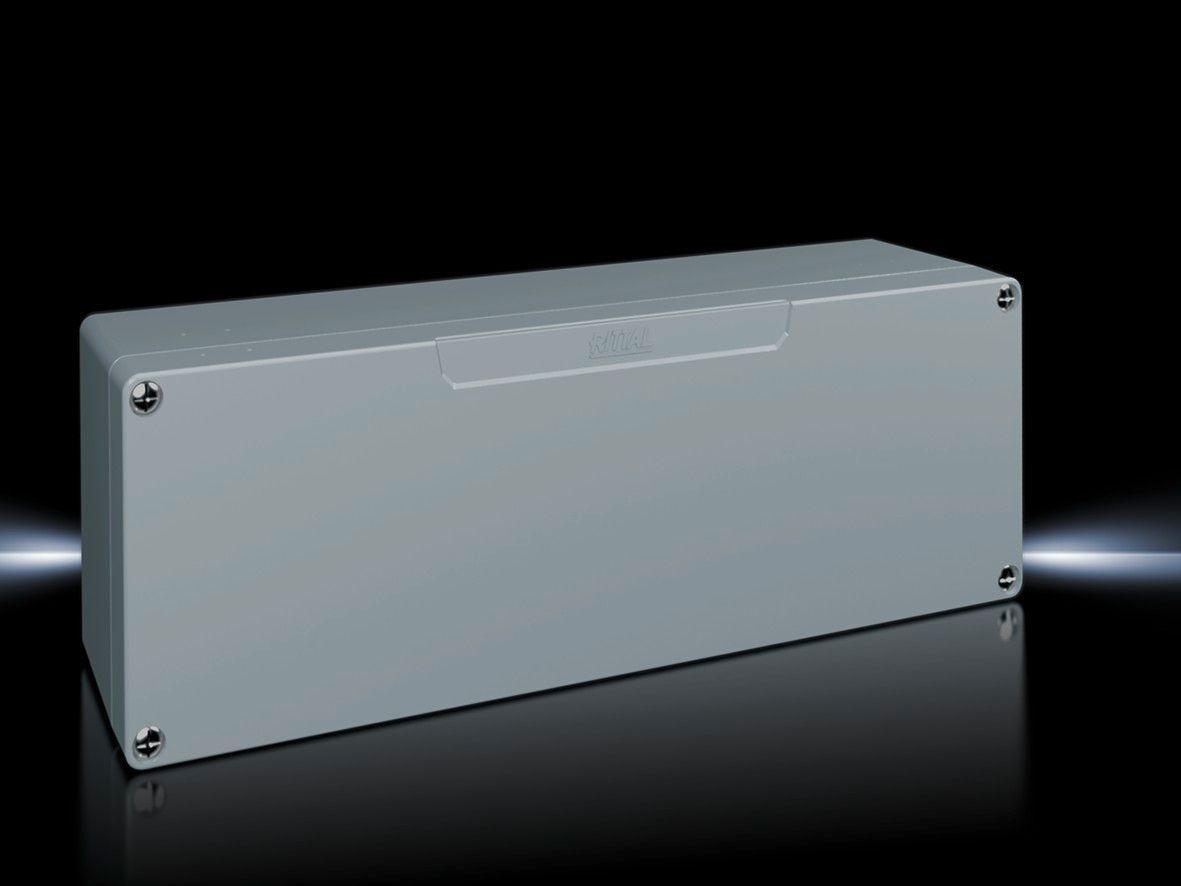

Rittal GA 9111.210 Enclosure is a robust housing for control panels in harsh industrial environments. Engineers often grapple with space constraints, demanding IP ratings, and corrosion risk that delay installations. Featuring IP66 protection, NEMA 4 compatibility, and IK08 impact resistance, it supports CE compliance across European assemblies. Its cast aluminium construction reduces weight without sacrificing strength, streamlining installation in enclosures & electrical infrastructure projects and enabling long-term cost savings. The enclosure ships with a detachable cover, captive screws, and mounting rails, simplifying field and panel assembly, while its WHD design matches compact control cabinet standards. This makes it a reliable, future-proof solution for industries like automation, packaging, and energy management.
Product Information
Extended Description
9111210 Rittal: GA Cast aluminium enclosure, WHD: 360x120x82 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9111.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width:Â 360 mm | Height:Â 120 mm | Depth:Â 84 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
2.36 kg
Customs tariff number
84879090
EAN
4028177145429
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 360x120x82 mm, Cast aluminum, without mounting plate, with cover
Feature: Cast aluminium construction provides high strength-to-weight ratio and corrosion resistance → Business Impact: Reduces overall enclosure weight while increasing durability, lowering handling risk and installation time → Application: Outdoor or damp plant environments where robust protection is essential. Feature: IP66 and NEMA 4 protection with IK08 impact resistance → Business Impact: Delivers reliable ingress protection and mechanical resilience in harsh factories, outdoor sites, and exposure to dust or water jets → Application: Industrial automation panels, outdoor control cabinets, and utility equipment. Feature: Textured paint finish in RAL 7001 for long-term aesthetics and corrosion resistance → Business Impact: Maintains appearance and protection in corrosive atmospheres with reduced maintenance costs → Application: Food, chemical, and manufacturing environments with color-coding requirements. Feature: WHD 360x120x82 mm dimensions with no mounting plate and included cover → Business Impact: Compact footprint supports space-constrained installations while ensuring ready-to-use setup straight from the box → Application: Small control cabinets and compact automation enclosures. Feature: Inclusive hardware set (cover screws, captive screws, mounting rail screws, PE conductor screw) → Business Impact: Accelerates installation and ensures safe grounding, reducing install time and field adjustments → Application: Standard panel builds and retrofit projects where quick deployment is critical. Feature: Textured surface and 1-piece packaging with 2.36 kg per pack → Business Impact: Easy handling and predictable transport logistics, improving site productivity → Application: On-site deliveries to OEMs and integrators working in time-sensitive projects. Feature: Comprehensive compatibility with European standards (CE) and IEC/NEMA guidelines → Business Impact: Simplifies compliance processes and audit readiness, reducing risk of non-conformance → Application: Compliance-driven projects in automation, energy management, and packaging lines.
Get a Quick Quote for a Rittal 9111210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9111210?
Enquire Now
FAQs
GA 9111.210 ships without a mounting plate but includes cover screws, captive screws, screws for attaching support rails, and a PE conductor connection screw. This setup allows quick installation with compatible mounting rails while giving installers the flexibility to adapt to existing panel designs and rail configurations.
Yes. The enclosure is IP66 protected and NEMA 4 rated, with IK08 impact resistance, textured paint, and cast aluminium construction, making it suitable for outdoor and damp industrial environments where dust, water jets, and physical impacts are concerns.
GA 9111.210 has WHD dimensions of 360 mm width, 120 mm height, and 84 mm depth. The standard weight is 2.36 kg per pack, and the enclosure comes with a cover and necessary hardware for installation.
The package includes the GA 9111.210 enclosure with cover, captive screws, screws for attaching support rails, and a screw for the PE conductor. These components streamline mounting, grounding, and panel assembly without requiring additional hardware.
GA 9111.210 meets IP66 protection, NEMA 4 rating, IK08 impact resistance, CE compliance, and IEC 60 529 standards. It also conforms to ETIM EC000261 and ECLASS 27180101, supporting reliable regulatory and industry-standard applications.
