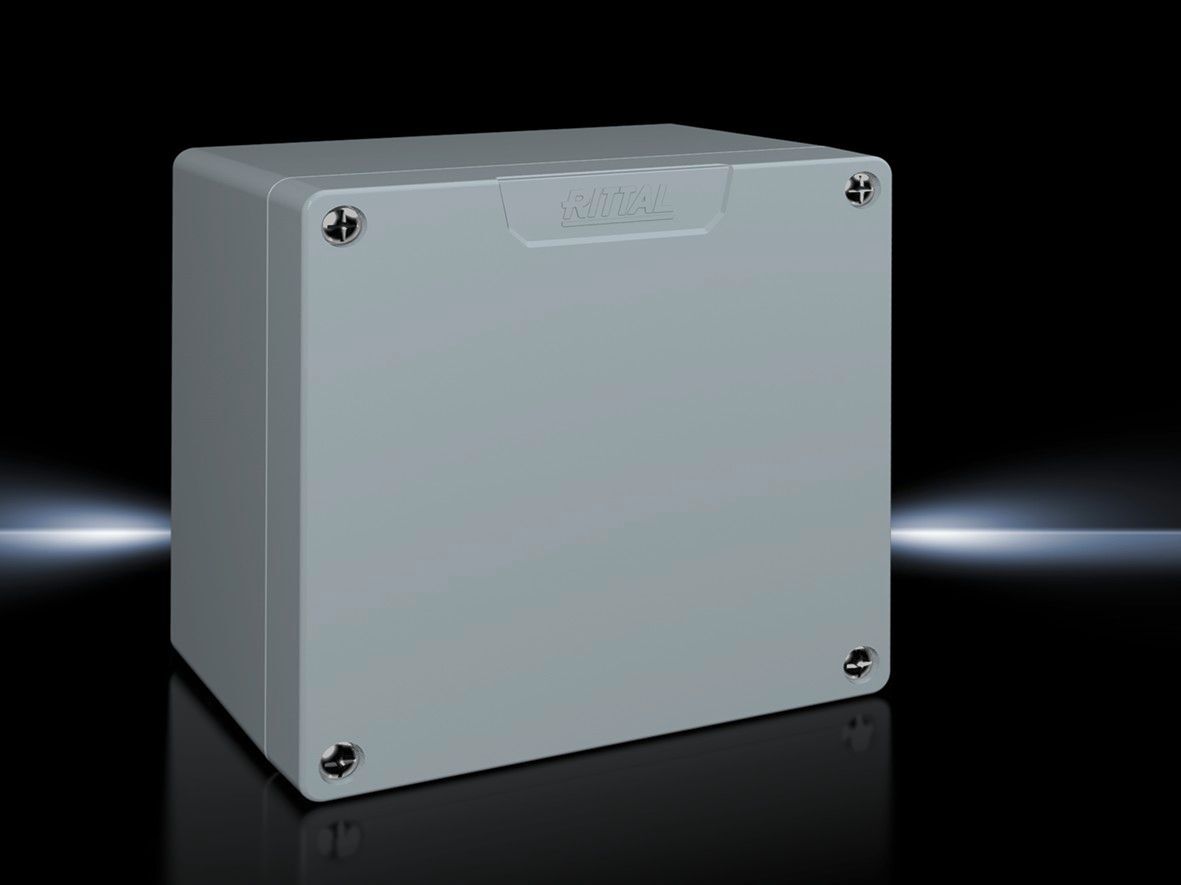

Rittal GA 9112.210 Enclosure - IP66 rating
Part Number: 9112210
Manufacturer
Rittal
Part number
9112210
Alt Part Number
GA 9112.210
Quick Summary
Rittal GA 9112.210 Enclosure protects control electronics in harsh environments. This cast aluminium enclosure is ideal for rugged automation panels where ingress protection and mechanical durability matter. Contractors and engineers often wrestle with dust, water ingress, and mounting constraints in confined spaces; this enclosure directly addresses those pain points with robust sealing and compact geometry. It delivers IP66 protection, NEMA 4 compatibility, and IK08 impact resistance, backed by durable textured paint in RAL 7001 for long-term corrosion resistance. By combining a rugged body with easy installation features, it supports reliable automation deployments, improved uptime, and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
9112210 Rittal: GA Cast aluminium enclosure, WHD: 160x160x91 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9112.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 160 mm | Height: 160 mm | Depth: 93 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
1.79 kg
Customs tariff number
84879090
EAN
4028177145436
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 160x160x91 mm, Cast aluminum, without mounting plate, with cover
Feature: Cast aluminium body provides superior corrosion resistance and mechanical strength in demanding environments. Business Impact: Longer service life reduces replacement cycles and maintenance costs. Application: Ideal for outdoor control panels and wastewater or food-and-beverage processing environments where harsh cleaning regimes are common. Long-tail keywords: cast aluminium enclosure, corrosion-resistant enclosure, rugged automation panels. Feature: IP66 and NEMA 4 protection with an all-round CR rubber seal and cover screws. Business Impact: Delivers dependable ingress protection against dust and water, minimizing unplanned downtime. Application: Suitable for dusty plants and washdown zones in manufacturing lines. Long-tail keywords: IP66 enclosure, NEMA 4 protection, rugged ingress protection. Feature: Supplied with cover screws (captivated), screws for support rails, and a PE conductor connection screw. Business Impact: Accelerates installation and ensures reliable grounding, reducing field commissioning time by minutes per cabinet. Application: Quick-turn deployments in multi-cabinet automation racks. Long-tail keywords: installation hardware, support rails, grounding screw. Feature: Compact WHD 160x160x91 mm (depth 93 mm) and a weight of 1.79 kg per pack. Business Impact: Space-efficient footprint enables denser panel layouts and easier logistics. Application: Retrofit projects in space-constrained control rooms or crowded industrial plants. Long-tail keywords: compact enclosure, space-saving cabinet, small form factor. Feature: Textured paint finish in RAL 7001. Business Impact: Visual durability and UV resistance with easy-to-clean surfaces, lowering maintenance overhead. Application: Indoor and outdoor installations where appearance and longevity matter. Long-tail keywords: textured finish, RAL 7001 enclosure, durable coating. Feature: IP66, NEMA 4, and IK08 protection provide certification-backed reliability. Business Impact: Supports compliance with industrial standards and reduces risk of equipment damage. Application: Critical machine controls in automation and process industries. Long-tail keywords: IK08 impact rating, industry standards, compliant enclosure.
Get a Quick Quote for a Rittal 9112210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9112210?
Enquire Now
FAQs
GA 9112.210 ships with cover screws, captive screws, and screws for attaching support rails, plus a PE conductor connection screw. It has a compact 160x160 mm footprint and a depth of 93 mm, making it suitable for tight panel interiors. Ensure proper grounding and use the supplied hardware for a secure, vibration-resistant installation.
The enclosure provides IP66 ingress protection and NEMA 4 compatibility, along with IK08 impact resistance. The sealing system uses CR cellular rubber, and a textured paint finish adds durability. These ratings support reliable operation in dusty, wet, and high-vibration industrial environments.
Yes. With IP66 protection and corrosion-resistant cast aluminium, the GA 9112.210 is designed for outdoor and wash-down environments. For outdoor use, ensure that the installation maintains proper drainage and that the enclosure is mounted in a way that avoids direct water impingement on seals during heavy storms.
The enclosure has a width and height of 160 mm and a depth of 93 mm, with WHD 160x160x91 mm. It weighs 1.79 kg per pack and is supplied as a single unit. This compact size supports space-constrained panel designs and simple handling.
A cast aluminium body provides long-term durability with minimal maintenance, while the included mounting hardware accelerates field installation. The enclosure’s compact size enables denser panel layouts, reducing enclosure footprint and logistics costs. Together, these traits deliver lower total cost of ownership in high-volume deployments.
