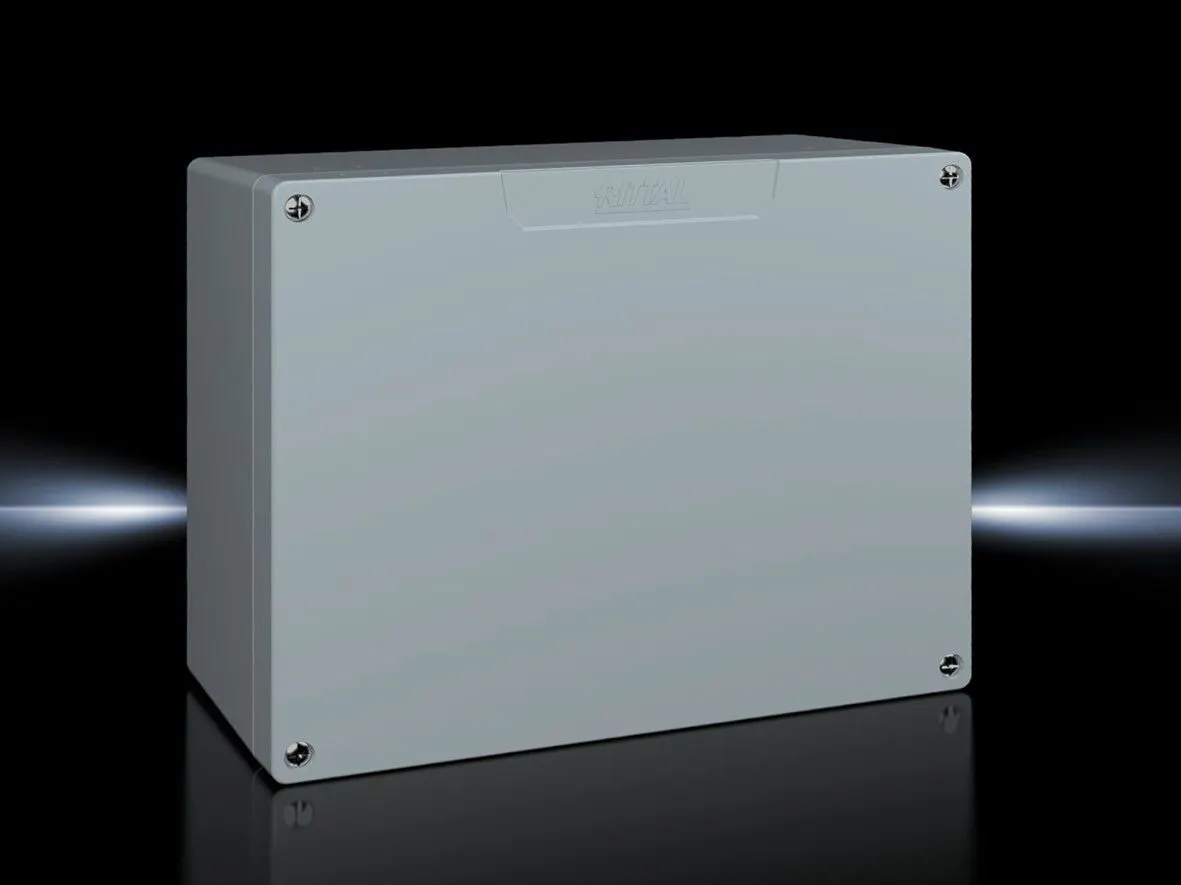

Rittal GA 9117.210 Enclosure - IP66, IK08, Cast Aluminium
Part Number: 9117210
Manufacturer
Rittal
Part number
9117210
Alt Part Number
GA 9117.210
Quick Summary
Rittal GA 9117.210 is a spray-finished cast aluminium enclosure for electrical control cabinets and rugged industrial installations. Engineers often face moisture ingress, corrosion, and sealing challenges in harsh environments, which can drive up maintenance costs and downtime. This enclosure delivers IP66 protection, NEMA 4 suitability, and IK08 impact resistance to withstand demanding conditions while maintaining a clean appearance with textured paint in RAL 7001. By combining robust protection with practical installation features, it supports reliable automation cabinet performance, faster procurement, and lower total cost of ownership in both indoor and outdoor applications.
Product Information
Extended Description
9117210 Rittal: GA Cast aluminium enclosure, WHD: 280x232x111 mm, Cast aluminum, without mounting plate, with cover
Article number
GA 9117.210
Material
Enclosure: Cast aluminium | Cover: Cast aluminium, all-round CR cellular rubber cord seal
Surface finish
Textured paint
Colour
RAL 7001
Supply includes
Enclosure with cover | Cover screws, captive | Screws for attaching support rails | Screw for connection of the PE conductor
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 280 mm | Height: 232 mm | Depth: 113 mm
Basic material
Cast aluminium
Packs of
1 pc(s).
Weight/pack
3.64 kg
Customs tariff number
84879090
EAN
4028177145474
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
GA Cast aluminium enclosure, WHD: 280x232x111 mm, Cast aluminum, without mounting plate, with cover
Feature: Cast aluminium construction provides inherent corrosion resistance and a strong, lightweight enclosure. Benefit: Reduces maintenance needs and protects sensitive electronics in hostile environments while preserving ease of handling during installation. Application: Suitable for outdoor climate control, industrial automation panels, and harsh factory floors. Feature: IP66 and NEMA 4 protection with IK08 impact resistance. Benefit: Ensures reliable weatherproofing and ingress protection even in wash-down areas or dusty industrial sites, lowering risk of field failures. Application: Outdoor enclosures, near conveyors, or in chemical processing environments.Feature: Textured paint finish in RAL 7001. Benefit: Superior UV and weathering resistance with a durable, easy-to-clean surface; improves long-term visibility and consistency in panel aesthetics. Application: Control panels subject to frequent inspection and routine maintenance.Feature: Supplied with cover, captive screws, rails attachment screws, and PE conductor screw. Benefit: Streamlines installation, reduces part counts, and accelerates compliant wiring and grounding connections. Application: New installs and retrofit projects where installation time and reliability matter.Feature: Dimensions WHD 280x232x111 mm with 280 mm width and 232 mm height. Benefit: Predictable footprint fits standard enclosure bays and DIN rail layouts, simplifying enclosure design and system integration. Application: Compact control cabinets and compact automation housings in machine rooms and on production lines.Feature: Pack weight 3.64 kg and ready-to-assemble with included hardware. Benefit: Easier handling for installers and minimal site logistics, contributing to lower labor costs. Application: Field deployments where weight and shipping efficiency are important.
Get a Quick Quote for a Rittal 9117210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9117210?
Enquire Now
FAQs
GA 9117.210 ships with screws for attaching support rails and a PE conductor screw, simplifying DIN rail mounting and grounding. The enclosure is designed to accommodate standard rail layouts, and mounting plates are not included, allowing installers to tailor internal arrangements to specific control gear while keeping the external footprint compact.
The GA 9117.210 features IP66 protection and NEMA 4 ratings, providing robust ingress protection against dust and water. The enclosure and cover are made from cast aluminium with an all-round CR cellular rubber cord seal, and IK08 impact resistance, ensuring durability in demanding environments.
Yes. With IP66 and NEMA 4 protection, a textured paint finish, and corrosion-resistant cast aluminium, it is well-suited for outdoor applications, wash-down areas, and industrial settings where weather resistance and reliability are critical.
Installation is streamlined by including cover screws, captive screws, rail-attaching screws, and a PE conductor screw. The textured finish in RAL 7001 simplifies maintenance and cleaning, while the sealed design reduces ingress-related maintenance needs over the enclosure’s life cycle.
The enclosure ships in a 1-piece pack with a weight of 3.64 kg, making handling straightforward on crowded shop floors and during on-site deliveries. Its compact WHD 280x232x111 mm footprint supports efficient space use in control cabinets and machine panels.
