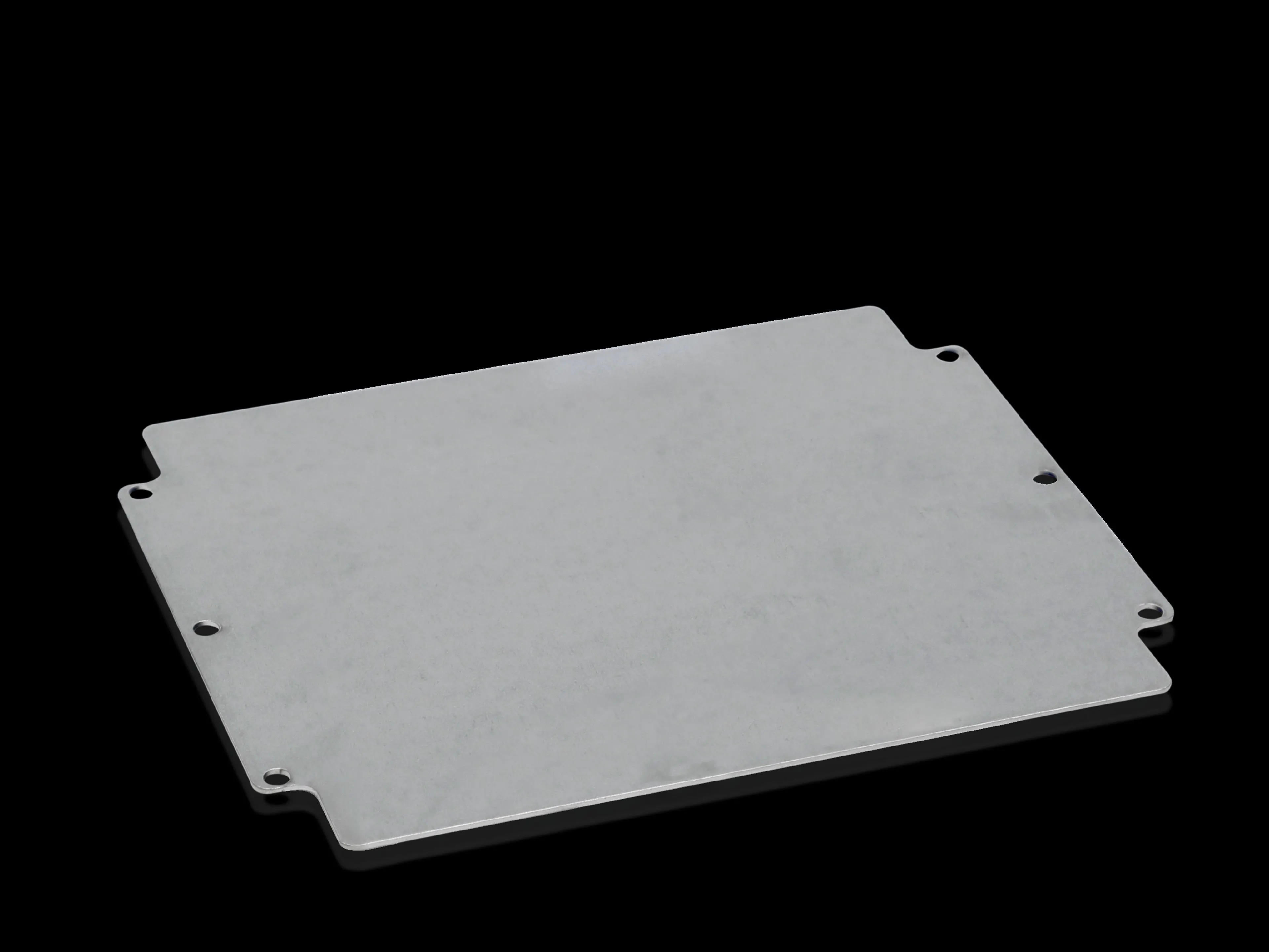

Rittal GA 9117.700 Mounting Plate - 264x214, Zinc-plated
Part Number: 9117700
Manufacturer
Rittal
Part number
9117700
Alt Part Number
GA 9117.700
Quick Summary
GA 9117.700 Mounting Plate enables universal interior installation inside GA enclosures for secure mounting. Engineers often grapple with misalignment and inflexible interior layouts when adding components. Notable standards references include ETIM 9 EC000213 and ECLASS 8.0 27409216, with PCF category B reflecting the environmental footprint. This mounting plate combines durable sheet steel with a zinc-plated finish to resist corrosion and extend service life. For procurement teams, the standardized dimensions and packaging of 1 pc per pack simplify stocking while maintaining system flexibility and installation efficiency across multiple facilities.
Product Information
Extended Description
9117700 Rittal: GA Mounting plate, WH: 264x214 mm
Article number
GA 9117.700
Product description
For universal interior installation, with mounting holes.
Material
Sheet steel
Surface finish
Zinc-plated
Dimensions mounting plate (W x H)
264 mm x 214 mm
To fit
Enclosure type:Â GA | Width:Â = 280 mm | Height:Â = 232 mm
Packs of
1 pc(s).
Weight/pack
0.88 kg
PCF per pack (cradle-to-gate)
3.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177154377
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
GA Mounting plate, WH: 264x214 mm
Durable sheet steel with a zinc-plated finish provides robust corrosion resistance for interior mounting, extending component life and lowering replacement cycles. This combination translates to lower maintenance costs and fewer service interruptions in GA enclosure installations. It is ideal for interior mounting inside GA enclosures where mounting holes exist, enabling long lasting layouts with minimal rework.\n\nPrecise dimensions and a universal interior fit standardize mounting space and simplify component placement, cutting installation time by eliminating guesswork during assembly. Use this plate to achieve clean, repeatable installations in GA type enclosures with mounting holes.\n\nLightweight packaging and single pack convenience reduce shipping costs and warehouse footprint while keeping inventory simple. With a weight of 0.88 kg per pack and one piece per pack, procurement teams benefit from predictable replenishment for enclosure projects.\n\nThe mounting plate carries PCF data of 3.4 kg CO2 eq per pack (Cat B), supporting sustainability reporting and greener decision making in the build phase of panel assemblies.\n\nClear compatibility metadata aligned with ETIM 9 EC000213 and ECLASS 8.0 27409216 helps procurement and engineering teams accurately classify and source the correct interior mounting accessory for GA enclosures.
Get a Quick Quote for a Rittal 9117700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9117700?
Enquire Now
FAQs
Begin by confirming the GA enclosure type is compatible and that interior mounting holes align with the plate holes. Align the plate, secure with appropriate screws or fasteners, and verify clearance for any connected components. The 264x214 mm plate provides a universal target for reliable, repeatable mounting in GA interiors.
The mounting plate measures 264x214 mm and is designed for GA type enclosures with a width of about 280 mm and height around 232 mm. It is sold as a single piece per pack and weighs 0.88 kg, enabling straightforward stocking and handling during interior installation projects.
Yes. The GA 9117.700 is classified under ETIM 9 EC000213 and ECLASS 8.0 27409216, which ensures accurate cataloging and compatibility with enterprise procurement systems. The sheet steel construction is zinc plated for durability in indoor environments.
The product has a cradle-to-gate PCF of 3.4 kg CO2 eq (Category B). This information supports sustainability reporting and greener decision making across assembly lines, with a one piece per pack packaging approach that minimizes waste.
Common challenges include misalignment, lack of standard mounting surfaces, and complex interior layouts. The GA 9117.700 provides a standardized 264x214 mm mounting surface with mounting holes, minimizing rework, speeding commissioning, and enabling cleaner interior layouts for reliable long term operation.
