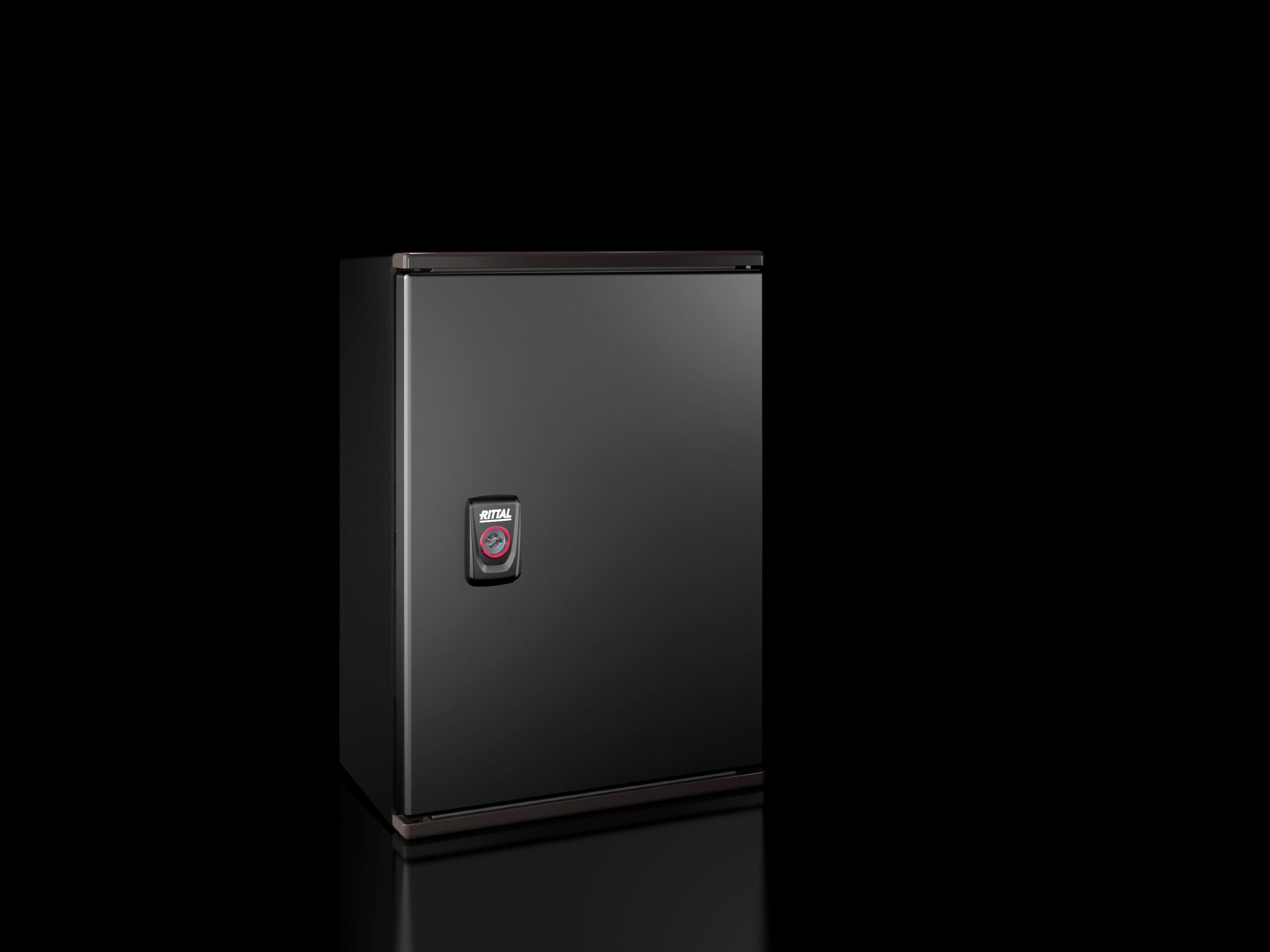

Rittal 9202100 Ex enclosure - IP65, ATEX/IECEx Certified
Part Number: 9202100
Quick Summary
Rittal 9202100 Ex enclosure offers hazardous-area protection for electrical and automation components in a compact, 250x350x150 mm footprint. This enclosure is designed to reduce downtime and risk by providing certified explosion protection and robust ingress protection in challenging environments. It carries IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U certification, along with IP65 sealing and NEMA Type 1 compatibility, ensuring safe operation across a range of industrial locations. By combining rugged materials with a mounting plate and a hinged door, it supports compliant installs while simplifying panel integration. For engineers and procurement teams, the enclosure delivers predictable performance, long service life, and lower total cost of ownership through validated protection and straightforward installation. This aligns with industry needs for reliable, compliant equipment in hazardous settings and optimized project timelines.
Product Information
Extended Description
9202100 Rittal: AX Ex enclosure, WHD: 250x350x150 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9202.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 250 mm | Height: 350 mm | Depth: 150 mm
Dimensions mounting plate (W x H)
155 mm x 275 mm
Material thickness of mounting plate
2.5 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 1
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
4.94 kg
PCF per pack (cradle-to-gate)
23.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952065
ETIM 7.0
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 250x350x150 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Feature → Business Impact → Application: Fibre-glass-reinforced unsaturated polyester construction provides chemical resistance and UV stability, extending enclosure life in harsh environments and reducing maintenance costs for petrochemical, mining, and water treatment facilities. Application: Hazardous-area control cabinets benefit from rugged protection without compromising signal integrity; IP65 sealing ensures reliable operation in dusty or wet plants. Feature → Business Impact → Application: Integrated mounting plate (155x275 mm, 2.5 mm thick) enables quick, secure drivetrain and component mounting, shortening installation time and improving retrofit efficiency in conveyor systems and packaging lines. Application: Automotive and food processing lines requiring reliable panel mounting in confined spaces. Feature → Business Impact → Application: Hinged door with a single lock simplifies access control and maintenance cycles, lowering labor time during routine checks and emergency servicing. Application: Control panels in limited-access zones and offshore facilities. Feature → Business Impact → Application: Ex enclosure certification (IEC Ex, ATEX) mitigates regulatory risk and supports compliance audits, enabling rapid project approvals in regulated environments. Application: Electrical enclosures for hazardous-area equipment across chemical plants and refineries. Feature → Business Impact → Application: NEMA Type 1 compatibility plus IK09 impact resistance enhances shock and mechanical protection for downtown installations, improving uptime and equipment protection in manufacturing floors.
Get a Quick Quote for a Rittal 9202100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9202100?
Enquire Now
FAQs
Plan for a 250x350x150 mm footprint with a mounting plate measuring 155x275 mm, 2.5 mm plate thickness, and a hinged door secured by a single lock. Ensure proper sealing with the bonded silicone seal and electrical clearance to meet IP65 and Ex certifications. Use appropriate wall or panel mounting hardware compatible with zinc-plated steel mounting plate.
It carries IEC Ex PTB certification and ATEX certification, confirming explosion protection suitability. The enclosure achieves IP65 ingress protection and IK09 impact resistance, allowing reliable service in dusty, wet, or shock-prone areas while maintaining safe operation of electrical components.
Yes. The enclosure includes a mounting plate (155x275 mm) with 2.5 mm thickness, designed to accept standard DIN rail or component mounting surveys. The internal space supports typical automation modules, with robust protection against environmental factors and a factory-supplied door and enclosure hardware for quick integration.
It provides IEC Ex and ATEX certifications (PTB 10.0011U and PTB 03 ATEX 1011U), IP65 protection per IEC 60529, NEMA Type 1 compatibility, and IK09 impact resistance. These certifications simplify regulatory approvals and ensure safe, compliant operation in hazardous-area installations.
Weight per pack is 4.94 kg with PCF 23.2 kg CO2 eq (Cat B) cradle-to-gate, indicating a moderate environmental footprint. Longevity and certification reduce maintenance and replacement cycles, lowering lifecycle costs. The robust construction also minimizes downtime and unscheduled service in hazardous environments.
