Rittal 9203100 AX Ex Enclosure - IP65 & ATEX/IECEx
Part Number: 9203100
Quick Summary
Rittal AX Ex enclosure protects electrical and automation components in hazardous areas with a rugged, explosion-protected housing. Industrial teams often struggle to find enclosures that deliver compliant sealing, chemical resistance, and easy installation in harsh environments. These Ex enclosures carry IECEx PTB 10.0011U and ATEX PTB 03, plus IP65 and IK09 ratings, ensuring global safety and durability. The combination of fibreglass-reinforced polyester, a hinged door, and a mounting plate supports fast commissioning, long service life, and safer maintenance, while conforming to essential standards. This makes them ideal for automation cabinets, switchgear housings, and field-mounted control systems in demanding facilities.
Product Information
Extended Description

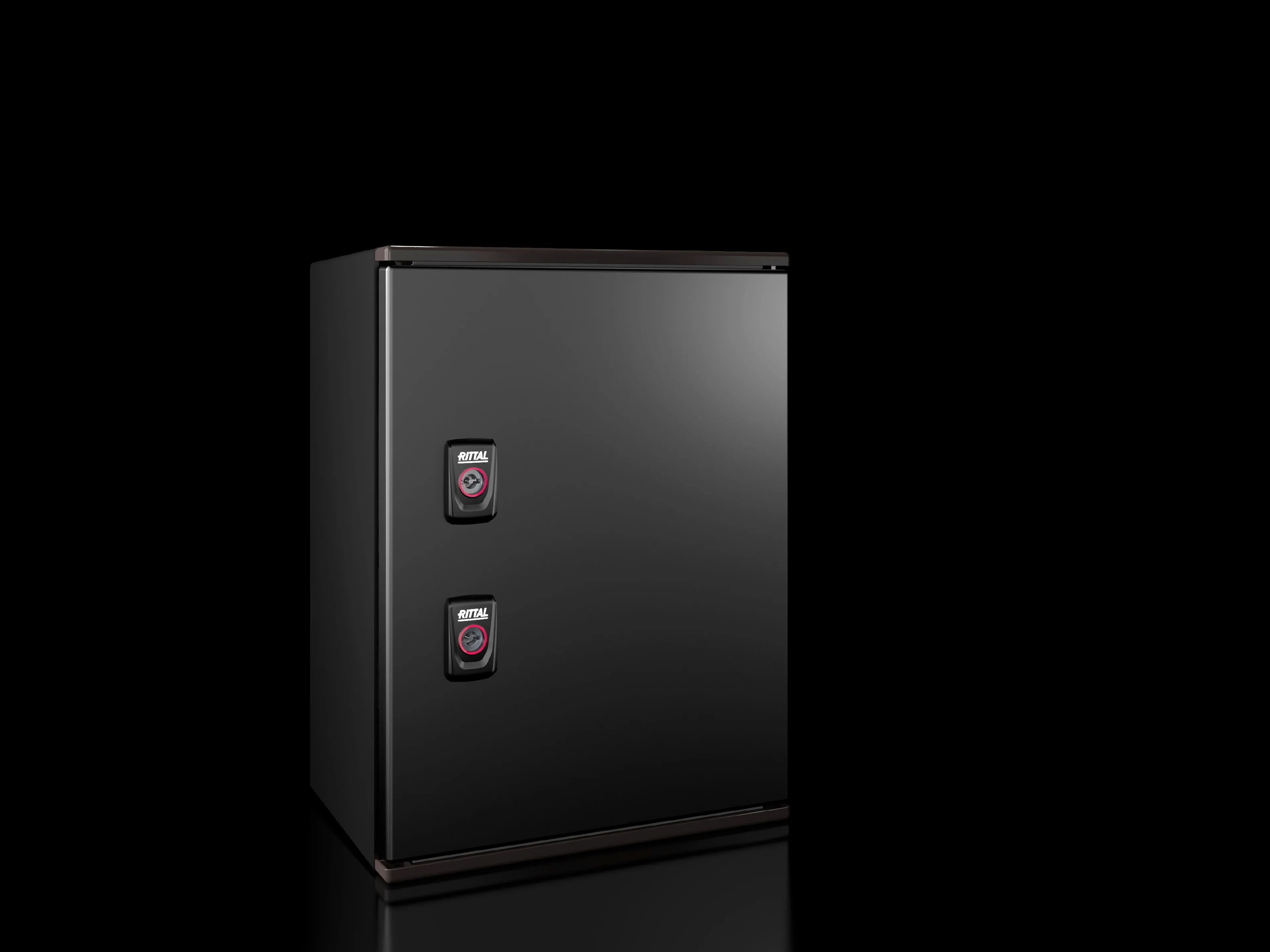

9203100 Rittal: AX Ex enclosure, WHD: 300x400x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9203.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 300 mm | Height: 400 mm | Depth: 200 mm
Dimensions mounting plate (W x H)
205 mm x 325 mm
Material thickness of mounting plate
2.5 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 2
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
7.26 kg
PCF per pack (cradle-to-gate)
34.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952072
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 300x400x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
The AX Ex enclosure is designed as a rugged, explosion-protected housing for hazardous areas, delivering reliable protection while simplifying regulatory compliance. Material selection, featuring fibreglass-reinforced unsaturated polyester, provides chemical resistance and light weight, reducing total cost of ownership and easing on-site handling. Its IP65 sealing and bonded silicone door seal prevent dust and water ingress, lowering the risk of equipment failure in harsh environments. A dedicated mounting plate (205 mm x 325 mm, 2.5 mm thick) enables straightforward internal component layout and panel mounting, accelerating installation and service access. The two-lock configuration enhances security for critical controls and minimizes tampering risks. Certifications including IECEx PTB 10.0011U and ATEX PTB 03 ensure global compliance for hazardous-area applications, supporting cross-border projects. The enclosure ships with door and mounting plate as standard, reducing part counts and shortening lead times for panel builders.
Get a Quick Quote for a Rittal 9203100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9203100?
Enquire Now
FAQs
The AX Ex enclosure carries IECEx PTB 10.0011U and ATEX PTB 03 certifications, confirming explosion protection for hazardous areas. It also features IP65 sealing and IK09 impact resistance, ensuring robust compliance across global safety schemes and demanding environments.
The enclosure dimensions are Width 300 mm, Height 400 mm, Depth 200 mm. It includes a mounting plate measuring 205 mm x 325 mm with a plate thickness of 2.5 mm, facilitating standard internal layouts and panel mounting.
Yes. The AX Ex enclosure provides IP65 ingress protection and is certified for hazardous areas with ATEX and IECEx approvals, making it appropriate for ATEX zones and other hazardous environments demanding rigorous enclosure standards.
Install by positioning the enclosure against the mounting surface, align the 205x325 mm mounting plate, and secure with appropriate fasteners. Use the hinged door with its two locks for access, and apply the bonded silicone seal to maintain IP65 integrity during commissioning and maintenance.
Ideal for chemical processing, oil and gas facilities, water treatment, and industrial automation in hazardous zones, the enclosure protects electrical components while supporting compliant installation, safe maintenance, and reliable operation under demanding conditions.
