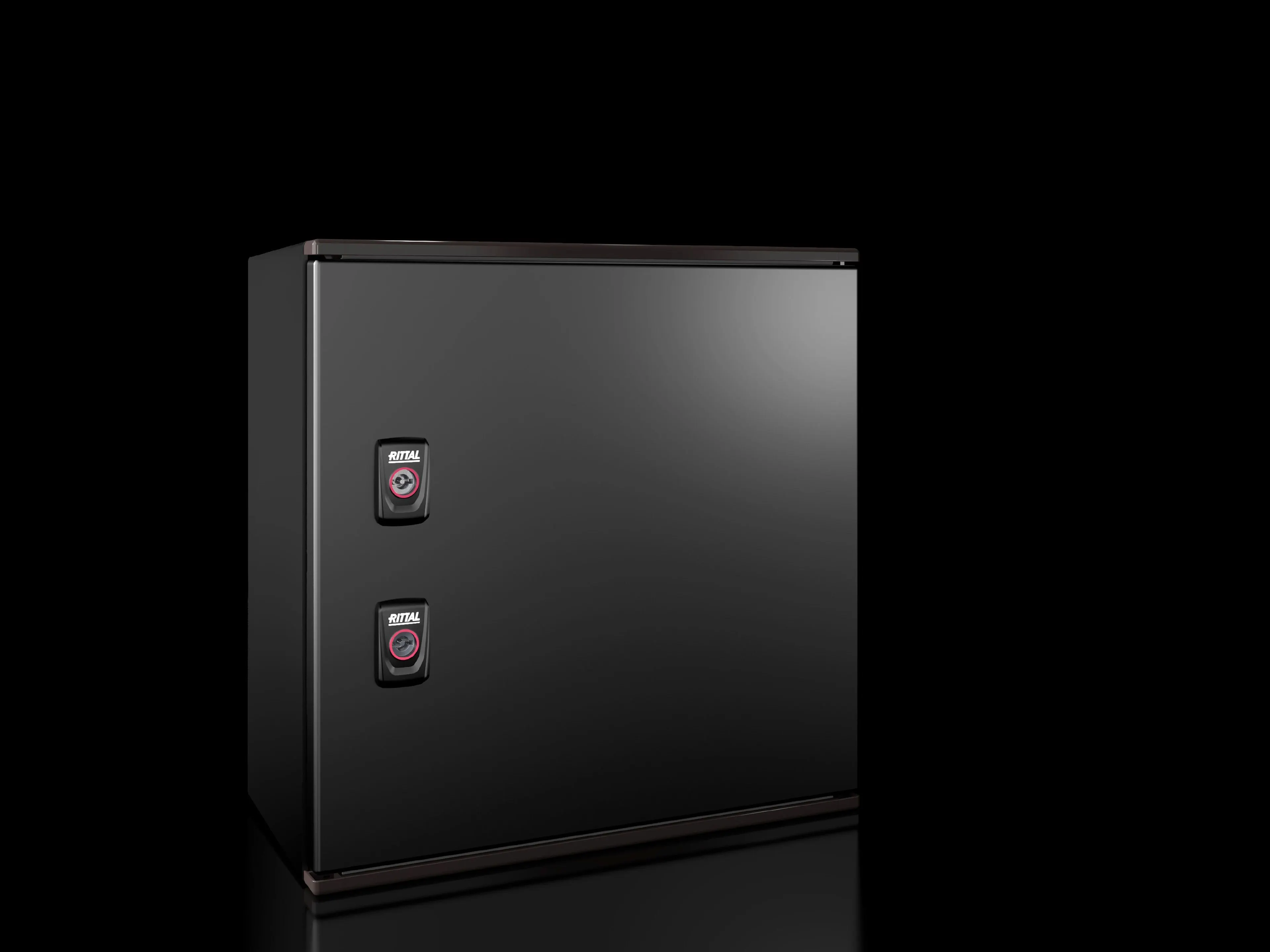

Rittal AX 9204.100 Ex Enclosure - IP65 & Ex Certification
Part Number: 9204100
Quick Summary
Rittal AX 9204.100 Ex enclosure is designed to safely house electrical gear in hazardous areas. Engineers often face mounting, protection, and maintenance challenges in demanding environments where a robust, compliant enclosure is essential. This solution carries IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U certifications, plus IP65 protection, IK09 impact resistance, and NEMA Type 1 suitability, giving you regulatory confidence across global sites. By combining a fibreglass-reinforced unsaturated polyester body with a 305x325 mm mounting plate and powder-coated steel mounting hardware, it supports reliable, scalable installations while reducing downtime and service costs. The result is safer, easier integration of control systems in hazardous areas.
Product Information
Extended Description
9204100 Rittal: AX Ex enclosure, WHD: 400x400x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9204.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 400 mm | Height: 400 mm | Depth: 200 mm
Dimensions mounting plate (W x H)
305 mm x 325 mm
Material thickness of mounting plate
2.5 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 2
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
8.9 kg
PCF per pack (cradle-to-gate)
42.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952089
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 400x400x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Ex enclosure design uses fibreglass-reinforced unsaturated polyester with surface resistance and a bonded all-round silicone seal, delivering chemical resistance and environmental protection that extend service life and reduce maintenance cycles. This directly improves uptime in harsh facilities and simplifies compliance auditing, especially in chemical plants and offshore environments. The enclosure weighs 8.9 kg and ships with a mounting plate, enabling quick installation and lowering on-site labor costs while freeing up floor space for other equipment. Its IP65 rating, IK09 impact resistance, and NEMA Type 1 suitability provide robust ingress protection and secure enclosure integrity, meeting strict industry standards and helping avoid costly retrofit projects. The 400x400x200 mm WHD and mounting plate 305x325 mm facilitate flexible internal layouts for a range of drives, controllers, and sensors.
Get a Quick Quote for a Rittal 9204100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9204100?
Enquire Now
FAQs
The AX 9204.100 ships with a dedicated mounting plate measuring 305x325 mm and a mounting hardware set. The plate is 2.5 mm thick and designed to support a wide range of electrical components, enabling straightforward layout customization and quick field installation in demanding environments.
AX 9204.100 is certified with IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U, confirming compliance for explosion-protected enclosures. It also carries IP65 protection, IK09 impact resistance, and NEMA Type 1 suitability, supporting safe operation in hazardous zones and diverse global markets.
Yes. The enclosure carries IP65 ingress protection, indicating dust-tight and water-resistant performance suitable for outdoor or damp environments. The fibreglass-reinforced polyester body enhances chemical and environmental resistance, making it well-suited for harsh industrial settings where ingress protection is essential.
The enclosure provides WHD 400x400x200 mm of external space and includes a mounting plate sized 305x325 mm with a 2.5 mm plate thickness. This setup supports flexible internal layouts for drives, controllers, and sensors while maintaining a compact form factor for tight installations.
The enclosure weighs 8.9 kg, with a cradle-to-gate PCF of 42.2 kg CO2 eq (Category B). This reflects a transparent sustainability footprint based on product weight and manufacturing data, helping buyers compare total cost of ownership and environmental impact across competing solutions.
