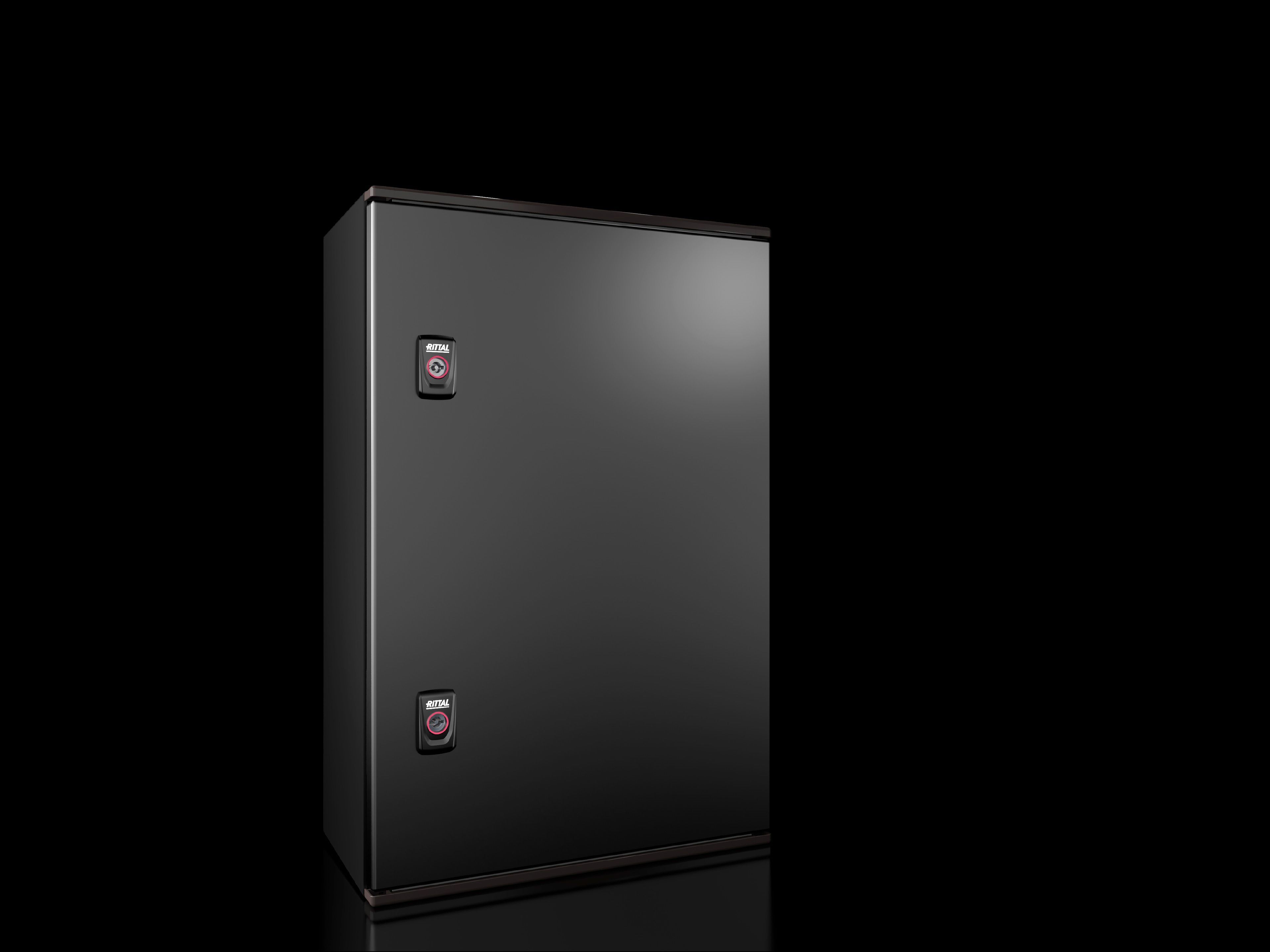

Rittal AX 9205.100 Ex Enclosure - IP65 & EX/ATEX
Part Number: 9205100
Quick Summary
AX Ex enclosure 9205.100 provides a rugged explosion-protected housing for electrical equipment in demanding environments. In hazardous areas, engineers often struggle to find enclosures that meet regulatory requirements without compromising serviceability. This model carries IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U, plus IP65 protection and NEMA Type 1, delivering safety and versatility across zones. The combination of fibreglass-reinforced unsaturated polyester and a sturdy mounting plate supports fast, reliable installations, helping minimize downtime while supporting scalable automation projects in process, robotics, and energy applications.
Product Information
Extended Description
9205100 Rittal: AX Ex enclosure, WHD: 400x600x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9205.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 400 mm | Height: 600 mm | Depth: 200 mm
Dimensions mounting plate (W x H)
305 mm x 525 mm
Material thickness of mounting plate
3 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 2
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
12.7 kg
PCF per pack (cradle-to-gate)
56 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952096
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 400x600x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Feature: Fibre-glass-reinforced unsaturated polyester shell with bonded silicone seal ensures high chemical and environmental resistance. Business Impact: Elevates enclosure longevity in corrosive or dusty environments, reducing maintenance costs and outage risk. Application: Ideal for hazardous-area control cabinets in chemical plants and offshore facilities. Feature: Dimensions WHD 400x600x200 mm with a mounting plate sized 305x525 mm and a 3 mm mounting plate. Business Impact: Facilitates easy integration with standard panel cutouts and existing support rails, accelerating installation. Application: Fits common 400x600 panels and panel housings in factory automation. Feature: IP65 protection, IK09 impact resistance, and dual-lock security. Business Impact: Delivers reliable ingress protection and tamper resistance, supporting long service intervals and operator safety. Application: Critical in outdoor or wash-down environments in manufacturing and water treatment. Feature: Supplied as Enclosure, Door, and Mounting Plate. Business Impact: Streamlines procurement and reduces assembly time, lowering total cost of ownership. Application: Works with Rittal mounting frameworks for fast, compliant cabinet builds. Feature: Certifications IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U with NEMA Type 1 compatibility. Business Impact: Verifies regulatory compliance for hazardous areas, enabling broader installation across global sites. Application: Essential for industrial plants and energy sectors requiring hazardous-area protection. Feature: Weight per pack 12.7 kg and PCF 56 kg CO2 eq (Cat B). Business Impact: Supports life-cycle assessment and sustainability reporting while aiding transport planning. Application: Suitable for projects with CO2 accounting and logistics constraints.
Get a Quick Quote for a Rittal 9205100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9205100?
Enquire Now
FAQs
Begin with planning the panel cutout to match the 400x600x200 mm WHD and confirm mounting plate compatibility (305x525 mm). Use the 3 mm mounting plate, attach the enclosure with the provided mounting hardware, then seal the hinged door with the bonded silicone gasket to maintain IP65 integrity. The two locks enable secure access while preserving serviceability.
Yes. The enclosure carries IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U certifications, confirms compliance for hazardous locations, and supports safe electrical installation. Its IP65 rating and NEMA Type 1 compatibility further enhance suitability for mixed environments, including outdoor or wash-down zones.
The shell is fibre-glass-reinforced unsaturated polyester with a surface resistance under 10^9 Ω, and the door is similarly reinforced with silicone bonding. The mounting plate is sheet steel, zinc-plated for durability. Protection features include IP65, IK09 impact resistance, two locks, and a bonded seal to prevent dust and water ingress.
Plan for quick mounting with the included mounting plate and standard 305x525 mm mounting footprint, minimizing bespoke fabrication. The high-quality gasket and dual-lock design reduce ingress risk and tampering. Choose the AX 9205.100 for easier service access in automation cabinets, process control boxes, and hazardous-area panels, supporting faster maintenance cycles.
Each pack weighs 12.7 kg, with a cradle-to-gate PCF of 56 kg CO2 eq (Category B). This information supports sustainability reporting and logistics planning for regional deployments while giving engineers a clear sense of overall environmental impact during procurement.
