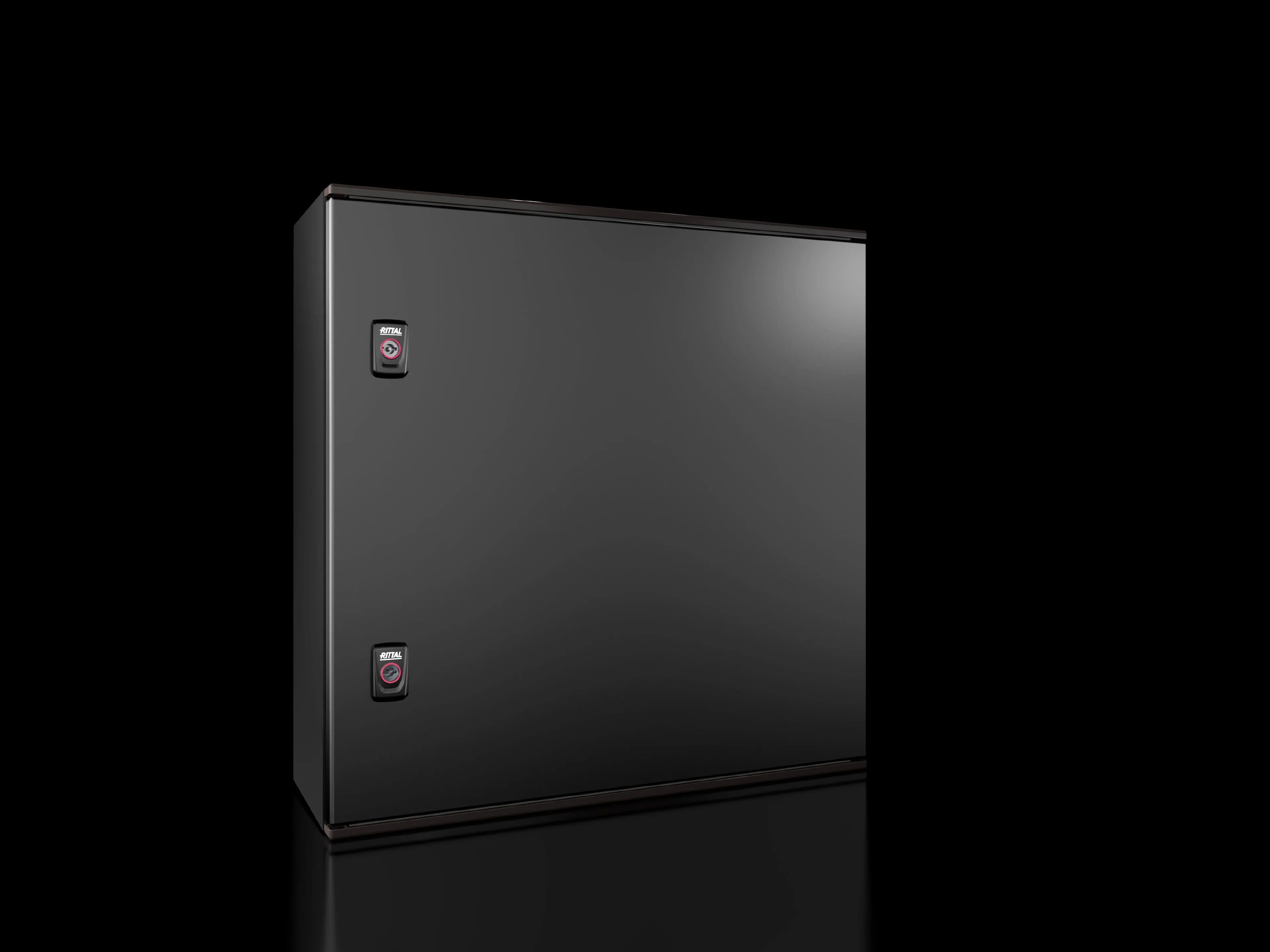

Rittal 9206100 Ex Enclosure - IP65, ATEX Certified
Part Number: 9206100
Quick Summary
Rittal 9206100 Ex enclosure provides rugged, explosion-protected housing for electrical components in harsh industrial environments. The enclosure mitigates downtime caused by dust ingress, moisture, and chemical exposure by delivering robust ingress protection and secure access. Certified to IEC EX PTB 10.0011U and PTB 03 ATEX 1011U, with IP65 protection and IK09 impact resistance, it meets critical safety standards. With a mounting plate included and a sturdy fibreglass-reinforced polyester body, it streamlines installation and ensures reliable operation in hazardous zones, supporting compliant, scalable electrical installations.
Product Information
Extended Description
9206100 Rittal: AX Ex enclosure, WHD: 600x600x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9206.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 600 mm | Height: 600 mm | Depth: 200 mm
Dimensions mounting plate (W x H)
505 mm x 525 mm
Material thickness of mounting plate
3 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 2
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
17.7 kg
PCF per pack (cradle-to-gate)
76.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952102
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 600x600x200 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Explosion protection and sealing meet IEC EX PTB 10.0011U and ATEX 1011U, reducing the risk of ignition sources and unplanned downtime in hazardous areas, making it ideal for chemical plants and oil/gas facilities. The result is safer commissioning and ongoing operation, with a straightforward path to regulatory compliance and safer maintenance in explosion-hazard zones. The fibreglass-reinforced polyester construction offers excellent chemical resistance and non-conductive properties, improving electrical insulation and long-term enclosure integrity even in corrosive environments, which translates to fewer enclosure-related failures and lower maintenance costs. IP65 and IK09 ratings guarantee dust-tight protection and impact resistance, delivering reliable performance in demanding manufacturing floors and outdoor installations, minimizing replacement cycles and service calls. The included mounting plate (505x525 mm; 3 mm thick) simplifies retrofits and new installations, reducing on-site engineering time and enabling quick, repeatable assembly across multiple panels. At 17.7 kg per pack, the enclosure is manageable to handle during installation, while the PCF of 76.8 kg CO2 eq (Category B) supports sustainability reporting and lifecycle considerations for procurement teams. All told, the AX Ex enclosure pairs robust protection with practical installation advantages, aligning with standard electrical cabinet practices and helping teams meet safety, quality, and environmental objectives.
Get a Quick Quote for a Rittal 9206100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9206100?
Enquire Now
FAQs
Begin by verifying the mounting plate pattern (505x525 mm) and preparing the 3 mm mounting plate. Use appropriate mounting hardware to secure the enclosure to a rigid frame or wall, align the door and hinge pins, and then attach the enclosure door. With a weight of 17.7 kg per pack, use two technicians or a lifting device for safe handling during installation. The result is a stable, compliant housing ready for internal components.
Yes. The AX 9206.100 is certified to IEC EX PTB 10.0011U and PTB 03 ATEX 1011U, confirming explosion protection for hazardous zones. It also offers IP65 ingress protection and IK09 impact resistance, making it suitable for demanding industrial applications where safe enclosure of electrical equipment is critical.
The body is made of fibreglass-reinforced unsaturated polyester, providing chemical resistance and electrical insulation. The door shares the same material, and the mounting plate is sheet steel with zinc plating. These materials deliver durable protection against chemicals and moisture, while the surface resistance remains below 10^9 ohms, supporting safe operation in challenging environments.
The package includes the enclosure, hinged door, and mounting plate. The outer dimensions are Width 600 mm, Height 600 mm, Depth 200 mm. The mounting plate itself measures 505 mm by 525 mm, with a mounting plate thickness of 3 mm, enabling straightforward integration with standard panel layouts.
In addition to explosion protection and environmental sealing, the enclosure has a PCF of 76.8 kg CO2 eq (Cat B), reflecting its lifecycle carbon footprint. Its compliance with IEC EX and ATEX certifications supports regulatory adherence in hazardous environments, while its robust build minimizes maintenance and replacement, contributing to lower total cost of ownership over time.
