Rittal AX 9209.100 Ex enclosure - IP65, ATEX/PTB Certified
Part Number: 9209100
Quick Summary
The AX 9209.100 Ex enclosure is designed to protect electrical gear in hazardous environments. It addresses common pain points such as dust ingress, corrosion, and non-compliance by delivering a rugged, purpose-built housing with a hinged door for easy access. This enclosure carries crucial certifications to support safe operation in regulated settings, including IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U, along with IP65 protection and IK09 impact resistance. For system integrators and OEMs, the combination of strong enclosure hardware and a mounting plate delivers tangible business value through faster installation, improved maintenance predictability, and long-term compliance in industrial applications.
Product Information
Extended Description

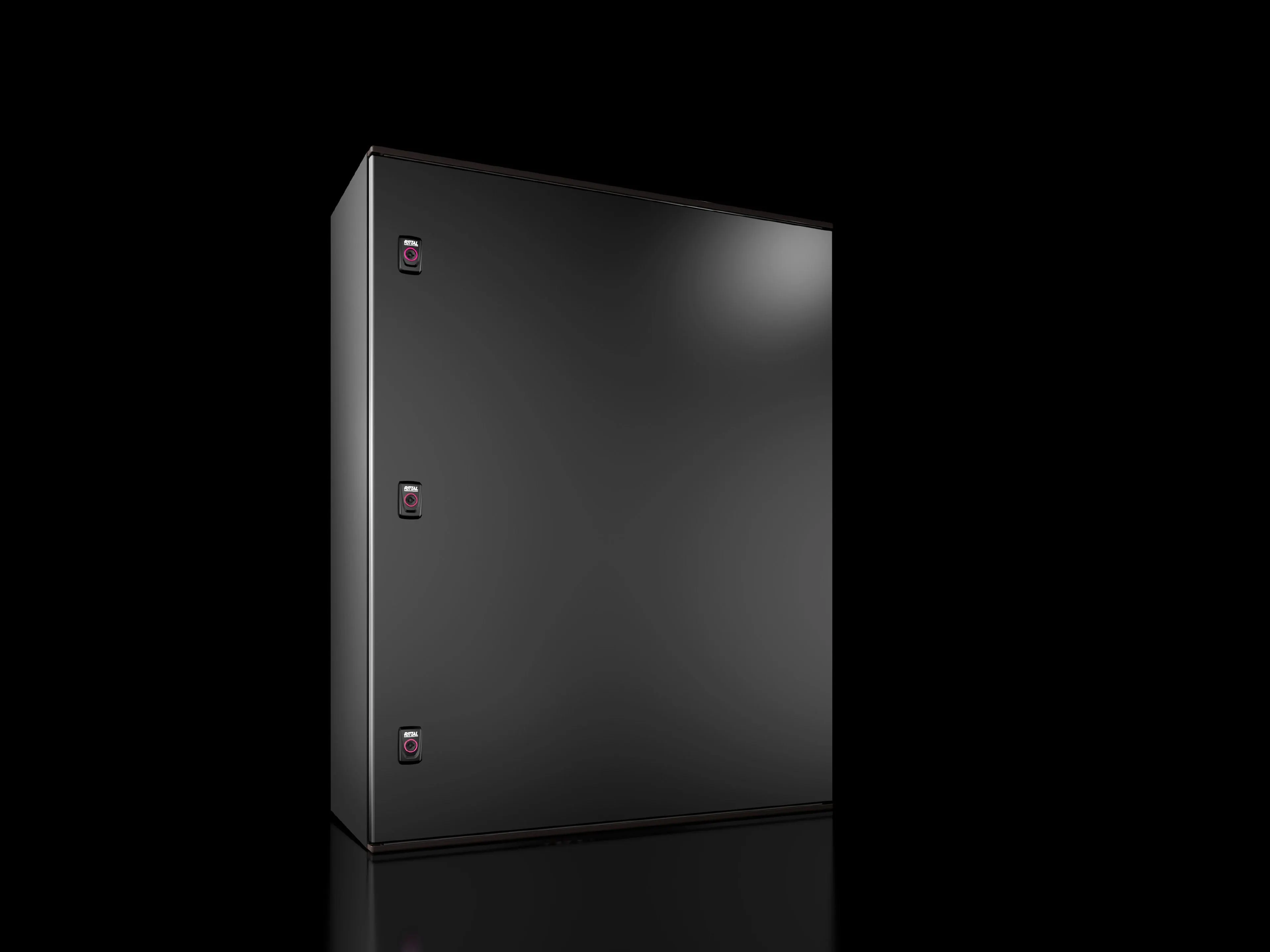

9209100 Rittal: AX Ex enclosure, WHD: 800x1000x300 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Article number
AX 9209.100
Design
Ex enclosures
Material
Fibre-glass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω | Door: Fibreglass-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, bonded all-round silicone seal | Mounting plate: Sheet steel, zinc-plated
Colour
RAL 9011
Supply includes
Enclosure | Door | Mounting plate
Dimensions
Width: 800 mm | Height: 1,000 mm | Depth: 300 mm
Dimensions mounting plate (W x H)
705 mm x 925 mm
Material thickness of mounting plate
3 mm
Certificate IEC EX PTB 10.0011U
Yes
Certificate PTB 03 ATEX 1011U
Yes
Lock
Number of locks: 3
IP protection category to IEC 60 529
IP 65
Protection category NEMA
Type 1
IK Code
IK09
Packs of
1 pc(s).
Weight/pack
39.5 kg
PCF per pack (cradle-to-gate)
170.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94037000
EAN
4028177952133
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
AX Ex enclosure, WHD: 800x1000x300 mm, fibreglass-reinforced unsaturated polyester, with mounting plate, empty enclosure with hinged door
Feature: Fibreglass-reinforced unsaturated polyester construction. Business Impact: Delivers chemical resistance and corrosion resistance in harsh environments while keeping weight manageable versus metal enclosures. Application: Chemical plants, outdoor cabinets, and offshore installations. Feature: Hinged door with three locking points. Business Impact: Enhances security and serviceability, reducing maintenance downtime and untimely access restrictions. Application: Control panels and field hardware in regulatory spaces. Feature: IP65 protection and IK09 resilience. Business Impact: Ensures ingress protection against dust and mechanical impact, supporting uptime in production lines and outdoor deployments. Application: Enclosures near conveyors, wash-down areas, and outdoor equipment. Feature: Supplied with mounting plate (705 x 925 mm; 3 mm thick). Business Impact: Simplifies installation and supports rigid internal mounting with compatible component layouts, saving hardware and labor. Application: Electrical assemblies needing precise panel mounting within the 800 x 1000 x 300 mm footprint. Feature: Material and surface specifications. Business Impact: Surface resistance < 10^9 Ω on the enclosure and door improves static management for sensitive electronics, reducing risk of contamination. Application: Control cabinets handling low- to mid-voltage gear in clean-room-adjacent spaces. Feature: Certifications and standards alignment. Business Impact: Validates compliance for hazardous-area installations, supporting audits and safety programs. Application: ATEX/IEC Ex environments, NEMA Type 1 compatibility, and reliability requirements in regulated sectors.
