Rittal 9302000 Ex Enclosure - IP66, Ex-certified
Part Number: 9302000
Quick Summary

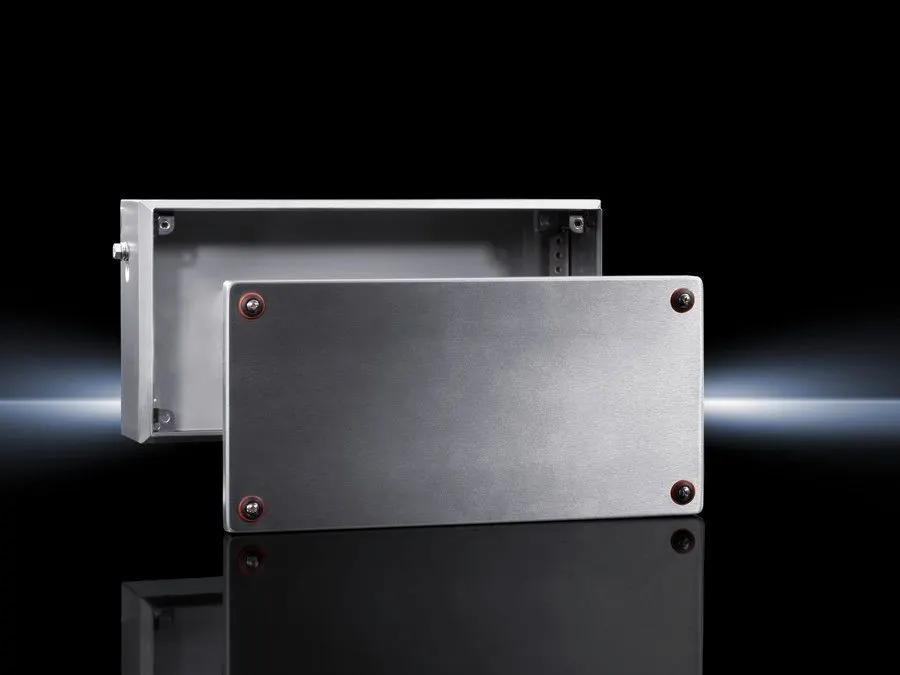

Rittal 9302000 Ex Enclosure is a rugged stainless steel housing for electrical and control gear in hazardous areas. Wiring access, sealing, and compliance can slow installations; this enclosure simplifies mounting and protects critical assets. Certified IEC Ex PTB 09.0033U and PTB 03 ATEX 1013U, plus IP66 sealing, support global hazardous-zone compliance. Its dimensions 300x150x80 mm fit standard remote I/O and PLC stacks, reducing cabinet footprint while maximizing accessibility. With a stainless steel 1.4301 build and a robust screw-fastened cover, it delivers durable control panel housing that speeds installation and reduces maintenance.
Product Information
Extended Description
9302000 Rittal: KEL Ex enclosure, WHD: 300x150x80 mm, Stainless steel 1.4301, without mounting plate, Empty enclosure with screw-fastened cover
Article number
KEL 9302.000
Design
Ex enclosures
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply includes
Enclosure | Cover
Dimensions
Width: 300 mm | Height: 150 mm | Depth: 80 mm
Certificate IEC EX PTB 09.0033U
Yes
Certificate PTB 03 ATEX 1013U
Yes
Basic material
Stainless steel 1.4301 (AISI 304)
IP protection category to IEC 60 529
IP 66
Packs of
1 pc(s).
Weight/pack
1.8 kg
Customs tariff number
94032080
EAN
4028177138568
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
KEL Ex enclosure, WHD: 300x150x80 mm, Stainless steel 1.4301, without mounting plate, Empty enclosure with screw-fastened cover
Feature: Stainless steel enclosure with 1.4301 grade material and a screw-fastened cover. Business Impact: Delivers corrosion resistance and secure access, reducing maintenance intervals. Application: suitable for chemical plants and offshore facilities where harsh cleanliness and residue are common. Feature: IP66 sealing with a foamed-in silicone gasket. Business Impact: Provides reliable ingress protection against dust and water, lowering the risk of field failures. Application: ideal for dusty or wet environments in process automation and outdoor installations. Feature: Ex and ATEX / IECEx certifications (IEC EX PTB 09.0033U; PTB 03 ATEX 1013U). Business Impact: Ensures regulatory compliance and safer operations, simplifying audits and approvals. Application: mandatory in hazardous zones across chemical, oil & gas, and heavy industry. Feature: Compact WHD 300x150x80 mm footprint. Business Impact: Fits tight control cabinet spaces while maximizing internal mounting flexibility. Application: supports standard remote I/O and PLC configurations in limited enclosures. Feature: Supplied as Enclosure plus Cover; weight 1.8 kg per pack. Business Impact: Easier on-site handling and faster installation, reducing labor costs. Application: scalable installations where multiple housings are deployed across facilities.
Get a Quick Quote for a Rittal 9302000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9302000?
Enquire Now
FAQs
The 9302000 Ex Enclosure ships as an enclosure with a compatible cover and is designed to work with standard mounting plates. Its dimensions (300x150x80 mm) fit common control panel footprints, and the screw-fastened cover allows secure assembly. For enhanced rigidity, pairing with Rittal mounting plates and accessories simplifies installation and ensures compliant earthing connections in hazardous zones.
Key dimensions are Width 300 mm, Height 150 mm, Depth 80 mm, with a weight of 1.8 kg per pack. The enclosure features an IP66 seal and a screw-fastened cover, with a brushed surface finish. Built from stainless steel 1.4301 (AISI 304), it provides long-term corrosion resistance in challenging environments.
Yes. The enclosure carries IEC EX PTB 09.0033U and PTB 03 ATEX 1013U certifications, confirming compliance for hazardous-area installations. This, combined with IP66 protection, supports safe operation in explosive atmospheres and helps meet regulatory and industry standards during audits and procurement.
Indeed. The IP66 rating ensures protection against dust ingress and powerful water jets, making it suitable for outdoor and dusty settings. Additionally, the stainless steel 1.4301 material offers excellent corrosion resistance, contributing to reliable performance in harsh environments such as factories, chemical plants, and offshore facilities.
Plan for a secure setup using the screw-fastened cover and silicone seal to maintain the IP66 barrier. The kit includes the enclosure and cover, with a weight of 1.8 kg per pack, enabling manageable handling on-site. Consider using compatible mounting plates, grounding accessories, and standard gaskets to meet enclosure integrity requirements in hazardous zones.
