Rittal 9306000 Ex enclosure - IP66 & IEC Ex PTB 09.0033U
Part Number: 9306000
Quick Summary
Rittal 9306000 Ex enclosure is a stainless steel housing that protects electrical gear in hazardous environments. Engineers often struggle with balancing compact footprints, certified safety, and reliable ingress protection in tough plants. This Ex enclosure meets IEC Ex PTB 09.0033U and PTB 03 ATEX 1013U, plus IP66, while stainless steel 1.4301 delivers corrosion resistance. Its compact 300x300x120 mm footprint and screw-fastened cover simplify installation and maintenance, delivering faster uptime and safer operations. Beyond compliance, it supports cost-effective ruggedization for control panels in chemical, oil & gas, and manufacturing settings. Secondary keywords like Ex enclosure, stainless steel enclosure, and IP66-rated housing appear naturally in context, reinforcing product relevance. The design also supports quick field wiring and mounting flexibility, reducing installation time for automation projects.
Product Information
Extended Description

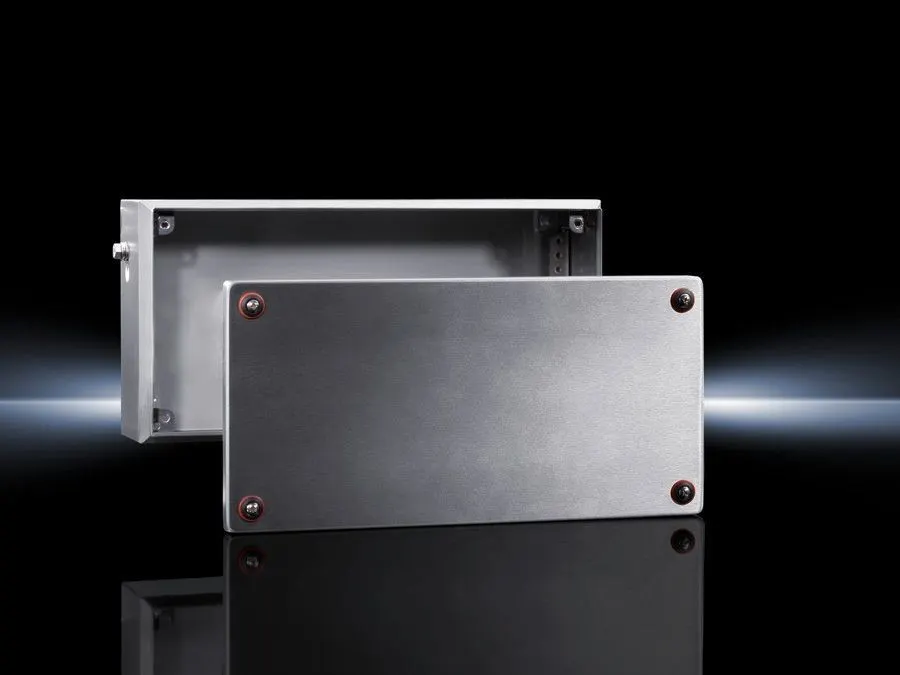

9306000 Rittal: KEL Ex enclosure, WHD: 300x300x120 mm, Stainless steel 1.4301, without mounting plate, Empty enclosure with screw-fastened cover
Article number
KEL 9306.000
Design
Ex enclosures
Material
Enclosure: Stainless steel 1.4301 (AISI 304) | Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Surface finish
Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply includes
Enclosure | Cover
Dimensions
Width: 300 mm | Height: 300 mm | Depth: 120 mm
Certificate IEC EX PTB 09.0033U
Yes
Certificate PTB 03 ATEX 1013U
Yes
Basic material
Stainless steel 1.4301 (AISI 304)
IP protection category to IEC 60 529
IP 66
Packs of
1 pc(s).
Weight/pack
3.9 kg
Customs tariff number
94032080
EAN
4028177138643
ETIM 9
EC002503
ECLASS 8.0
27180502
Product description
KEL Ex enclosure, WHD: 300x300x120 mm, Stainless steel 1.4301, without mounting plate, Empty enclosure with screw-fastened cover
Feature: Corrosion-resistant construction. Impact: The 1.4301 stainless steel body delivers excellent resistance to chemicals, humidity, and corrosion, extending the enclosure’s service life in demanding environments. Application: Suited for chemical plants, oil and gas facilities, and heavy industrial automation where enclosure integrity matters. Feature: IP66 sealing with a silicone gasket. Impact: Robust sealing protects internal electronics from dust, water jets, and wash-down processes, reducing unscheduled downtime. Application: Outdoor installations or production floors requiring reliable ingress protection. Feature: IEC Ex PTB 09.0033U and PTB 03 ATEX 1013U certifications. Impact: Enables compliance with hazardous-area codes, simplifying regulatory approvals and safer device commissioning. Application: Zones where explosion protection is mandated. Feature: Compact WHD 300x300x120 mm footprint. Impact: Fits into tight control cabinets, freeing space for controllers and power distribution. Application: Small to mid-size automation cabinets in harsh environments. Feature: Screw-fastened cover and supply includes enclosure and cover. Impact: Ready-to-use out of the box with secure sealing; without mounting plate simplifies replacement and upgrades. Application: Field service and rapid component swaps. Feature: Weight of 3.9 kg per pack, single-pack shipping. Impact: Easier handling, reduced freight costs, and straightforward on-site installation. Application: Assembly lines and relocated equipment where weight is a consideration.
Get a Quick Quote for a Rittal 9306000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9306000?
Enquire Now
FAQs
The 9306000 Ex enclosure features a compact 300x300x120 mm footprint with a screw-fastened cover for secure sealing. It ships with the enclosure and cover only, allowing straightforward mounting in tight spaces without a separate mounting plate. This reduces installation time and enables plug-and-play integration with standard DIN rails and panel layouts.
This enclosure is IEC Ex PTB 09.0033U and PTB 03 ATEX 1013U certified, confirming suitability for explosion-protected environments. It is IP66-rated, providing robust protection against dust and high-pressure water jets. Constructed from stainless steel 1.4301 (AISI 304), it also offers corrosion resistance for harsh industrial plants.
Yes. The unit is certified with IEC Ex PTB 09.0033U and ATEX PTB 03 1013U, aligning with explosion-protection requirements in both IECEx- and ATEX-regulated regions. Its IP66 rating adds ingress protection for wash-down environments commonly found in chemical and process industries.
The enclosure measures 300 mm (width) x 300 mm (height) x 120 mm (depth) and is made from stainless steel 1.4301 (AISI 304) with a brushed finish and a silicone-sealed cover. It ships as a single pack and weighs 3.9 kg, with supply including the enclosure and the cover only.
The 9306000 Ex enclosure protects critical electrical components from dust, moisture, and chemical exposure, reducing maintenance downtime and extending service life. With certified explosion protection and a compact footprint, it improves safety compliance, optimizes cabinet space, and lowers total cost of ownership for automation projects in hazardous facilities.
