Rittal SV 9320.030 Busbar Connector - Bayed Connection
Part Number: 9320030
Manufacturer
Rittal
Part number
9320030
Category
Alt Part Number
SV 9320.030
Quick Summary
Rittal SV 9320.030 Busbar Connector enables bayed busbar connections inside enclosures without drilling. Installing busbars in tight panels often leads to misalignment, drill errors, and longer downtimes, which impact project timelines and maintenance windows. The datasheet references ETIM EC000713 and ECLASS 27400606 for classification, while PCF data (Cat B) informs environmental considerations; however, explicit CE, SIL, or IP certifications are not listed in the provided data and should be validated with the supplier. Designed to deliver robust electrical contact and reliable mechanical performance, this connector supports fast, repeatable installations and reduces lifecycle costs. Compatible with standard enclosure systems, it helps streamline procurement and on-site assembly for control panels and power distributions.
Product Information
Extended Description

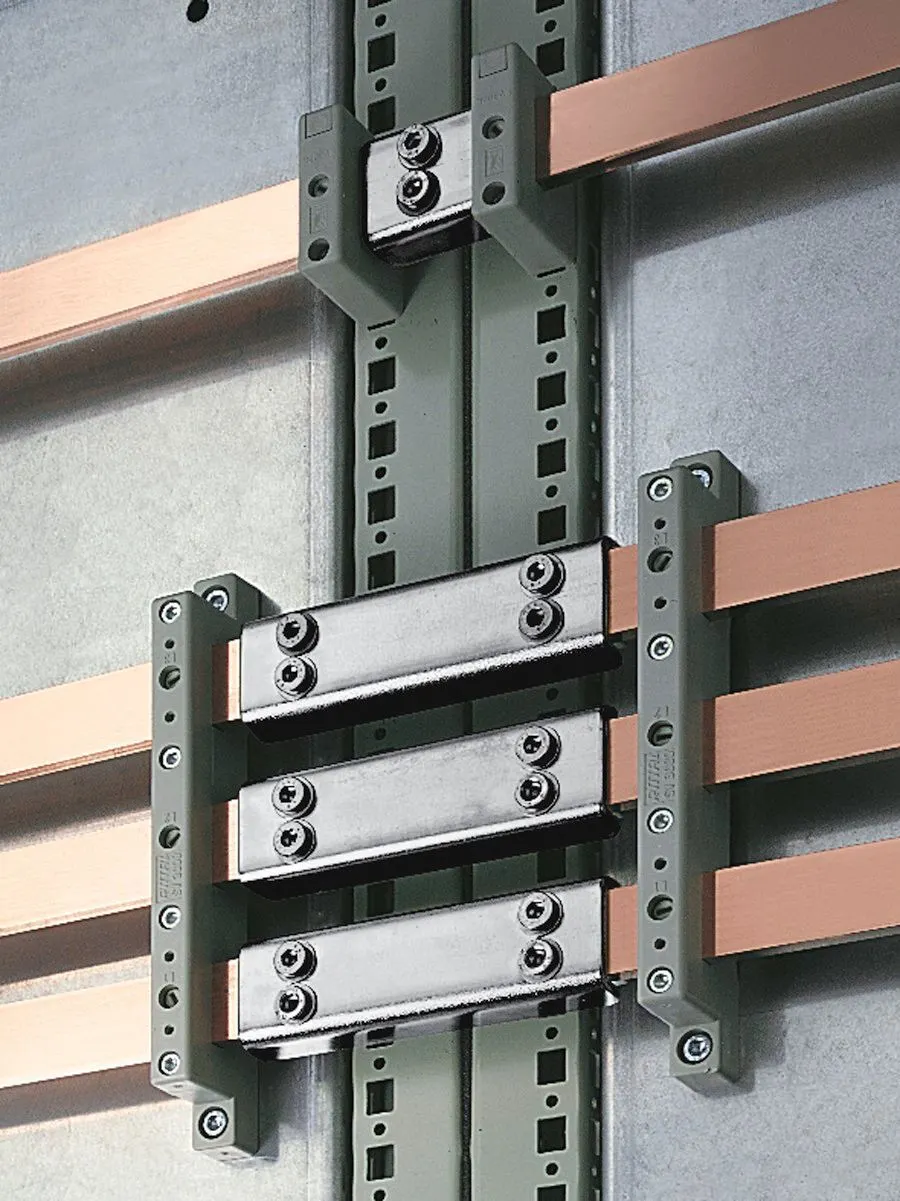

9320030 Rittal: SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection
Article number
SV 9320.030
Product description
For connecting rectangular busbars, no drilling required.
Material
Top piece: Sheet steel, zinc-plated, passivated | Contact plate: E-Cu, silver-plated
Connection type
Baying connection from enclosure to enclosure
To fit busbars
20 x 5 - 30 x 10 mm
Packs of
3 pc(s).
Weight/pack
2.082 kg
Copper weight (kg per piece)
0.35
PCF per pack (cradle-to-gate)
7.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177149830
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Busbar connector, for E-Cu 20x5-30x10 mm, bayed connection
Feature → bayed connection from enclosure to enclosure; Business Impact → enables rapid, drill-free assembly with consistent electrical paths; Application → ideal for multi-enclosure busbar networks. The 20x5–30x10 mm busbar fit provides broad compatibility with common rectangular copper bars, reducing part diversity and simplifying spares. Feature → top piece is sheet steel, zinc-plated and passivated; contact plate is E-Cu, silver-plated; Business Impact → improves corrosion resistance and lowers contact resistance for durable, low-loss connections; Application → suitable for demanding industrial environments. Feature → copper weight per piece is 0.35 kg; packs contain 3 pieces with a total weight of 2.082 kg per pack; Business Impact → simplifies handling and stock control while supporting precise thermal performance assessments; Application → useful for project planning and shipping efficiency. Feature → PCF per pack is 7.9 kg CO2 eq (Cat B); Note on PCF category indicates cradle-to-gate impact is approximately weight-based; Business Impact → supports sustainability reporting and procurement diligence; Application → aligns with environmental goals and compliance verification. Feature → customs tariff 85369010 and EAN 4028177149830; ETIM EC000713; ECLASS 27400606; Business Impact → ensures traceability, standardized procurement data, and smoother ERP integration; Application → facilitates product selection and compliance checks.
Get a Quick Quote for a Rittal 9320030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9320030?
Enquire Now
FAQs
SV 9320.030 is designed for bayed connections between enclosure busbars and accepts E-Cu busbars sized 20x5 to 30x10 mm. It enables drill-free installation and is compatible with standard enclosure systems, reducing modification work and downtime. For best results, confirm enclosure compatibility with Rittal documentation and verify mounting options during early project planning.
The connector supports rectangular copper busbars sized 20x5 mm up to 30x10 mm. Each pack contains 3 pieces, with a total weight of 2.082 kg per pack, making on-site handling and replenishment straightforward for medium-scale panel installations.
The provided data focuses on mechanical and material specifications, with copper weight per piece listed as 0.35 kg and a silver-plated contact. A current rating is not specified in the dataset; refer to the Rittal datasheet or contact engineering support to obtain current-handling limits, contact resistance, and cooling considerations for your specific application.
Bayed connection eliminates drilling and punch operations, enabling faster alignment between adjacent enclosures and busbars. This reduces panel modification risk, minimizes tool wear, and shortens commissioning schedules. Practically, installers can achieve repeatable contact paths with fewer error-prone steps, improving overall project throughput and reliability.
The pack has a PCF value of 7.9 kg CO2 eq (Cat B), indicating cradle-to-gate environmental impact linked to product weight. The unit ships in packs of three and carries EAN 4028177149830 and customs tariff 85369010, while ETIM EC000713 and ECLASS 27400606 provide standardized classification for ERP and procurement processes.
