Rittal 9320060 SV Expansion Connector - E-Cu
Part Number: 9320060
Manufacturer
Rittal
Part number
9320060
Category
Alt Part Number
SV 9320.060
Quick Summary
SV expansion connector is used for thermal and mechanical compensation when connecting PLS busbars between enclosures. Without expansion, temperature changes can cause misalignment and stress, risking downtime. This product aligns with ETIM 9 EC000713 and ECLASS 8.0 27400606 for standardized cataloging and interoperability. The copper expansion connector is designed for PLS 800 busbars, delivering reliable, low-resistance contacts across enclosure-to-enclosure runs and maintaining electrical performance under cycling temperatures. It supports modular deployments in factory and data center enclosures, enabling predictable installation and easier spare-part planning. By specifying a single SV 9320.060 part number, procurement teams can simplify BOMs and improve stock control while reducing field errors during assembly. This makes it a practical choice for reliability-focused power management projects.
Product Information
Extended Description

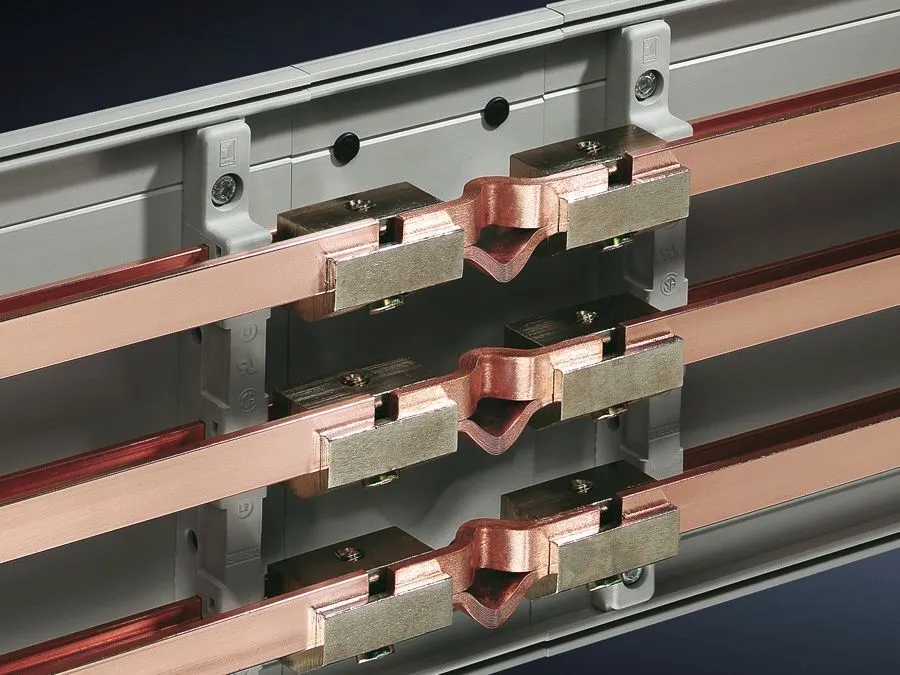

9320060 Rittal: SV Expansion connector E-Cu, PLS 800
Article number
SV 9320.060
Product description
For thermal and mechanical compensation when connecting PLS special busbars from enclosure to enclosure.
Material
E-Cu
Assembly instruction
Two busbar connectors are needed to fit one expansion connector.
Note
At a temperature increase of 30 K, there is an expansion in the length of the busbars by approximately 0.5 mm/m. For this reason, it is advisable to use an expanding connection for thermal compensation in busbar systems with busbar sections > 3600 mm.
To fit busbars
PLS 800
Packs of
3 pc(s).
Weight/pack
0.55 kg
Copper weight (kg per piece)
0.13
Customs tariff number
85369010
EAN
4028177162365
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Expansion connector E-Cu, PLS 800
Feature: Copper E-Cu construction provides high conductivity and durable contacts across temperature cycles. Business impact: Reduces contact resistance and wear, improving system reliability in enclosure-to-enclosure runs. Application: PLS 800 busbar connections in modular power distribution. Feature: Assembly instruction states two busbar connectors are needed per expansion connector. Business impact: Clear guidance minimizes field errors and installation time, boosting project efficiency. Application: On-site deployment in standardized enclosures. Feature: Temperature expansion note indicates ~0.5 mm/m expansion at 30 K, guiding design for long runs. Business impact: Prevents misalignment and stress, reducing downtime in large busbar assemblies. Application: Systems with sections longer than 3600 mm. Feature: Packs of 3 and weight per pack 0.55 kg enable efficient stocking. Business impact: Simplified BOM planning and inventory management for maintenance cycles. Application: Warehouse and field procurement. Feature: Copper weight per piece 0.13 kg confirms compact yet robust contact area. Business impact: Optimized weight for modular installations and transport. Application: Enclosure-based power distribution projects. Feature: To fit busbars specification PLS 800 ensures compatibility across standard enclosure configurations. Business impact: Fast, reliable integration with existing Rittal components. Application: Retrofit and expansion projects in data centers and industrial facilities. Feature: Product description SV Expansion connector E-Cu, PLS 800 communicates clear use-case and material choice. Business impact: Improves procurement clarity and reduces configuration errors. Application: BOM validation and supplier alignment.
Get a Quick Quote for a Rittal 9320060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9320060?
Enquire Now
FAQs
To install the SV 9320.060, position the expansion connector between two PLS 800 busbars and use two busbar connectors per expansion connector as specified. Ensure proper alignment to maintain a low-resistance contact; confirm enclosure-to-enclosure continuity and verify that the copper faces are clean and free of oxidation before final mating.
Key specs include material: E-Cu, article number SV 9320.060, packs of 3, weight per pack 0.55 kg, copper weight per piece 0.13 kg, and compatibility with PLS 800 busbars. The product is described as SV Expansion connector E-Cu, PLS 800 for thermal and mechanical compensation.
Yes, for long busbar sections it is advisable to use an expanding connection to compensate thermal growth. At a 30 K temperature rise, busbar length can expand by roughly 0.5 mm per meter, making the SV expansion connector a practical choice for maintaining alignment and electrical performance across multi-enclosure installations.
The SV expansion connector is associated with ETIM 9 EC000713 and ECLASS 8.0 27400606 classifications, which support accurate cataloging and interoperability in procurement systems. While explicit certifications like CE or IP are not listed in the provided data, these classifications assist in consistent part identification across suppliers.
The connector reduces downtime by maintaining mechanical and electrical alignment during thermal cycling, simplifies BOM and spare parts management with a single part number, and enables faster field installations. These factors translate to lower maintenance costs and improved uptime in modular enclosure power systems.
