Rittal 9320070 SV Expansion Connector - E-Cu for PLS 1600
Part Number: 9320070
Manufacturer
Rittal
Part number
9320070
Category
Alt Part Number
SV 9320.070
Quick Summary
Rittal SV Expansion Connector is designed to provide thermal and mechanical compensation when linking PLS 1600 busbars between enclosures. This solves the common challenge of busbar misalignment and connection stress caused by temperature changes in modular cabinet layouts. The product aligns with ETIM 9 EC000713 and ECLASS 8.0 27400606 classifications, supporting interoperable data and streamlined procurement, while the included safety instructions aid compliant installation. By combining robust copper construction with thoughtful packaging and installation guidance, it delivers tangible business value—reliable electrical distribution, reduced maintenance, and scalable enclosure-to-enclosure busbar deployments for industrial automation environments.
Product Information
Extended Description
9320070 Rittal: SV Expansion connector E-Cu, PLS 1600
Article number
SV 9320.070
Product description

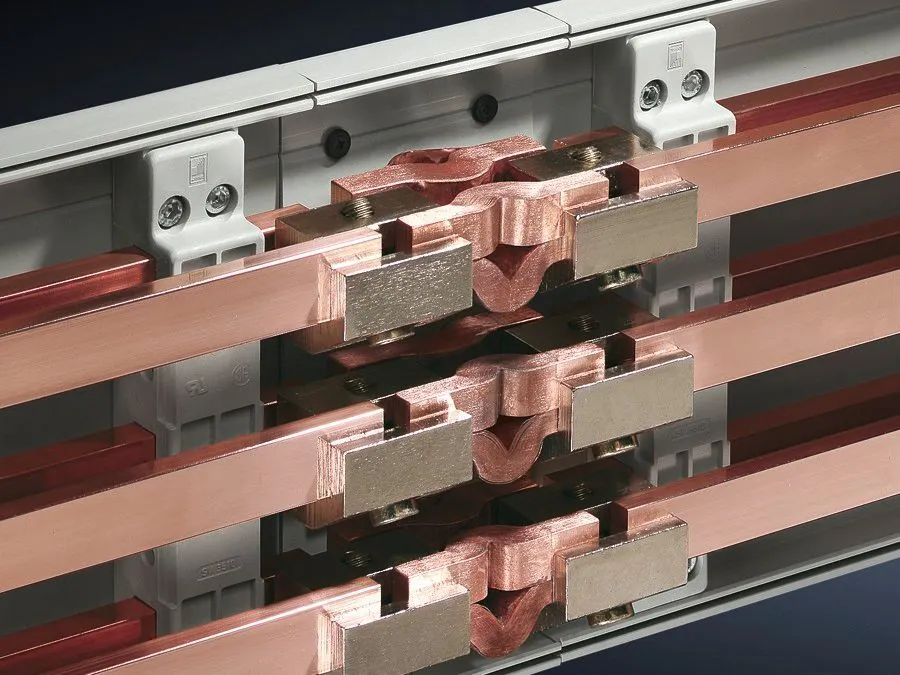

For thermal and mechanical compensation when connecting PLS special busbars from enclosure to enclosure.
Material
E-Cu
Assembly instruction
Two busbar connectors are needed to fit one expansion connector.
Note
At a temperature increase of 30 K, there is an expansion in the length of the busbars by approximately 0.5 mm/m. For this reason, it is advisable to use an expanding connection for thermal compensation in busbar systems with busbar sections > 3600 mm.
To fit busbars
PLS 1600
Packs of
3 pc(s).
Weight/pack
1.9 kg
Copper weight (kg per piece)
0.6
Customs tariff number
85369010
EAN
4028177162372
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Expansion connector E-Cu, PLS 1600
Feature → Business Impact → Application: E-Cu expansion connector delivers high electrical conductivity and durability, reducing contact resistance and wear over time, which translates to improved reliability in critical power paths. This supports longer service intervals and lower maintenance costs in PLS 1600 installations across data centers and manufacturing lines. Feature → Business Impact → Application: Thermal expansion compensation mitigates misalignment as temperature rises. With a typical 30 K increase causing ~0.5 mm/m growth in busbars, this connector maintains alignment and electrical integrity on longer runs, enabling safer, faster commissioning of modular enclosures. Feature → Business Impact → Application: Compatibility and ease of installation with PLS 1600 busbars, and the assembly rule that two busbar connectors are required per expansion connector, simplify field installs and reduce commissioning time. Feature → Business Impact → Application: Packaged in sets of three with a 1.9 kg per-pack weight and 0.6 kg copper per piece, the solution supports predictable logistics, inventory planning, and cost control for project rollouts. Feature → Business Impact → Application: Engineering-grade data (ETIM 9 EC000713 and ECLASS 8.0 27400606) facilitates accurate bill of materials and cross-system integration, while the included safety documentation ensures compliance and risk mitigation in regulated environments.
