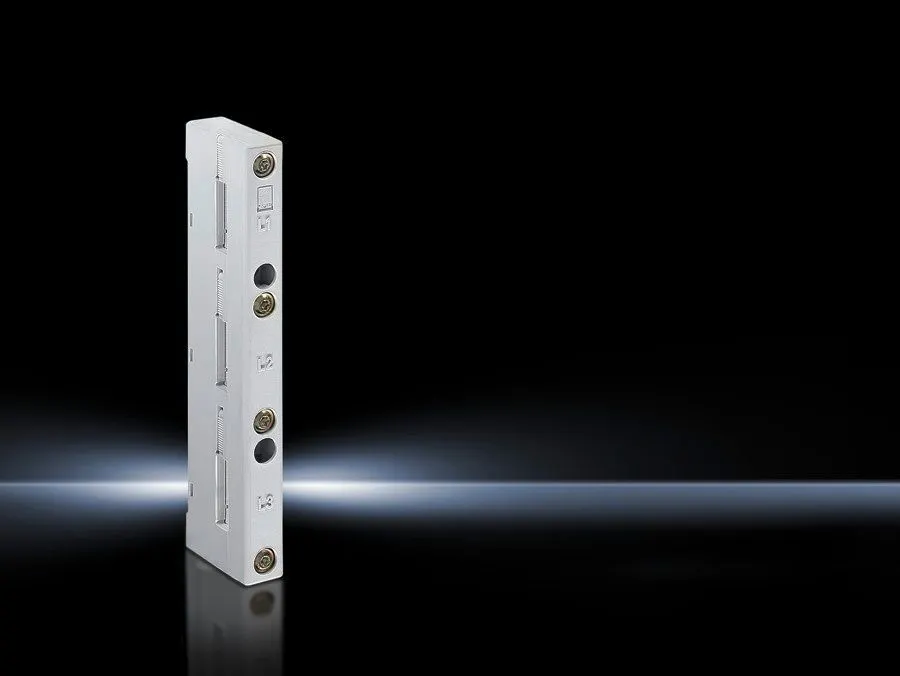

Rittal 9340000 Busbar Support - 3-pole, 60 mm spacing
Part Number: 9340000
Manufacturer
Rittal
Part number
9340000
Category
Alt Part Number
SV 9340.000
Quick Summary
Rittal 9340000 Busbar Support is a 3-pole mounting accessory designed to organize flat copper bars in cabinet power distributions. Engineers often struggle with space constraints and misaligned busbars that cause overheating, difficult maintenance, and longer downtime. This part meets UL 94-V0 flame protection in its polyamide body and is rated for up to 1000 V in three-phase systems, with industry classifications ETIM EC001166 and ECLASS 27400607. Its robust fit and clear compatibility simplify procurement and installation, delivering safer, more reliable power distribution while reducing panel footprint. With 4-pack configurations and a 60 mm center distance, it streamlines assembly for panel builders and service teams.
Product Information
Extended Description
9340000 Rittal: SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm
Article number
SV 9340.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated operating voltage
1000 V, 3~
Note on Model No.
If 12 x 5/10 mm busbars are used, spacer 9340.090 is additionally required
Number of poles
3-pole
Internal attachment
Yes
Centre-to-centre spacing of busbars
60 mm
To fit busbars
12 x 5 - 30 x 10 mm
Packs of
4 pc(s).
Weight/pack
0.692 kg
Customs tariff number
85469010
EAN
4028177502321
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm
Feature: 3-pole design with 60 mm center-to-center spacing. Benefit: Provides reliable alignment for 12x5 to 30x10 mm busbars, minimizing misalignment and hot spots. Application: Ideal for panel-mounted power distribution in industrial cabinets. Feature: Internal attachment. Benefit: Reduces field hardware and installation time while improving stability during vibration or maintenance. Application: Suitable for rugged manufacturing environments. Feature: UL 94-V0 polyamide material. Benefit: Enhances fire safety and supports safe high-voltage operation up to 1000 V. Application: Required in safety-critical electrical panels. Feature: Busbar fit range and spacer note. Benefit: Ensures compatibility with common busbar sizes, with spacer 9340.090 needed for 12x5/10 mm variants to avoid gaps. Application: Streamlines procurement and reduces corrective work. Feature: Packs of 4 and weight 0.692 kg per pack. Benefit: Simplifies sourcing and inventory control while maintaining consistent handling in assembly lines. Application: Useful for multi-chassis builds and OEM projects.
Get a Quick Quote for a Rittal 9340000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340000?
Enquire Now
FAQs
Mount the 3-pole module into the busbar area with the internal attachment, align to 60 mm spacing, and connect busbars within the 12x5 to 30x10 mm range. If using 12x5/10 mm busbars, install spacer 9340.090 as required to avoid gaps and ensure secure fit.
The part supports 3-pole operation, 60 mm centre distance, and fits busbars from 12x5 to 30x10 mm. It is rated for 1000 V AC in three-phase systems and manufactured from polyamide with UL 94-V0 fire protection. Packs of four are standard, with a weight of 0.692 kg per pack.
Yes. It supports up to 1000 V three-phase operation and uses UL 94-V0 rated polyamide, enhancing fire safety. It aligns with procurement classifications ETIM EC001166 and ECLASS 27400607, enabling consistent cataloging and supplier integration in manufacturing environments.
Standards include UL 94-V0 fire rating, coupled with ETIM EC001166 and ECLASS 27400607 classifications for product data. The EAN is 4028177502321, and the component is designed for 1000 V three-phase systems, supporting safe integration in electrical panels.
The 3-pole design with 60 mm spacing improves busbar alignment and reduces maintenance time. Pack of four simplifies stocking and inventory control, while internal attachment lowers hardware counts and installation effort. Together, these features support safer operation and lower lifecycle costs in panel builds.
