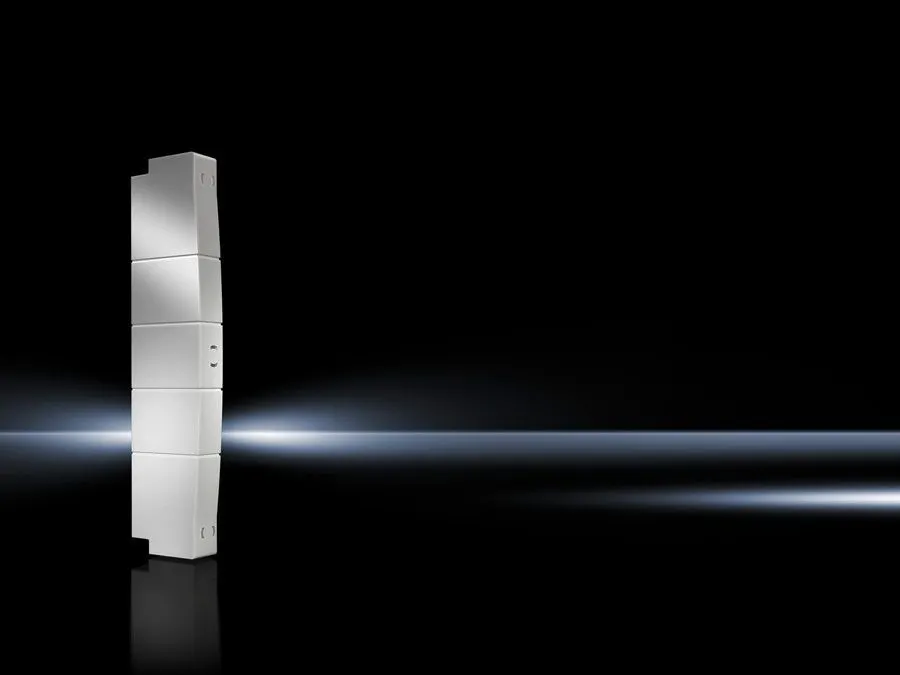

Rittal 9340074 SV End Cover - Polyamide, RAL 7035
Part Number: 9340074
Manufacturer
Rittal
Part number
9340074
Category
Alt Part Number
SV 9340.074
Quick Summary
Rittal SV End Cover 9340074 protects busbar assemblies from side-contact hazards in panel and switchgear applications. This end cap fits SV 9340004 busbar supports, delivering a quick, reliable safety solution during assembly or maintenance. While many enclosures struggle with inconsistent insulation gaps, this component provides a standardized, robust barrier to improve reliability and operator safety. Key standards referenced in the data include ETIM EC002270 and ECLASS 27409221, enabling seamless procurement classification. By using this end cover, projects gain reduced installation time, improved safety validation, and color-coded consistency across cabinets, supporting efficient field service and streamlined maintenance planning.
Product Information
Extended Description
9340074 Rittal: SV End cover, for busbar support, SV 9340004
Article number
SV 9340.074
Material
Polyamide
Colour
RAL 7035
To fit Model No.
9340.004
Packs of
2 pc(s).
Weight/pack
0.148 kg
Customs tariff number
85472000
EAN
4028177536722
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV End cover, for busbar support, SV 9340004
Feature → Polyamide end cap provides excellent electrical insulation and chemical resistance, reducing degradation and ensuring long-term reliability. Business Impact → Lower maintenance costs and fewer mid-life replacements in harsh manufacturing environments. Application → Ideal for busbar supports in control panels where persistent safety margins are required and frequent access is expected. Feature → RAL 7035 color coding aligns with standard electrical cabinet aesthetics and helps with quick visual inspection. Business Impact → Faster wiring audits and reduced risk of misidentification during updates. Application → Suitable for standardized color schemes in modular switchgear installations. Feature → Packs of 2 with a weight per pack of 0.148 kg support economical stocking and shipping. Business Impact → Lower inventory carrying costs and improved logistics. Application → Great for regional distribution and project-based sourcing. Feature → Exact fit for model SV 9340004 ensures plug-and-play compatibility. Business Impact → Shorter commissioning times and fewer compatibility issues. Application → Use when upgrading or repairing busbar assemblies in existing frames. Feature → Includes clear product data (ETIM EC002270 and ECLASS 27409221) for seamless ERP integration. Business Impact → Reduces data reconciliation time and supports automated procurement workflows. Application → Essential for data-driven purchasing in large-scale manufacturing plants.
Get a Quick Quote for a Rittal 9340074
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340074?
Enquire Now
FAQs
Begin by aligning the end cover with the SV 9340004 busbar support, ensuring the mating surfaces seat evenly. Press gently until it snaps into place, verify there is no gap, and confirm the color code (RAL 7035) matches other end covers in the cabinet. This design minimizes alignment errors and speeds up installation on multiple channels.
The 9340074 is manufactured from Polyamide, offering strong insulating properties and chemical resistance. It comes in the standard RAL 7035 color to match common enclosure schemes, aiding visual inspection and consistent labeling across assemblies. The color coding also helps prevent mismatches during maintenance or upgrades.
Yes. Each pack contains 2 end covers, designed to protect both ends of a busbar support segment or to pair with two distinct sections of a panel. This packaging supports efficient stocking and reduces the number of SKUs required on large projects, while enabling rapid replacement during routine service.
This part is referenced by ETIM EC002270 and ECLASS 27409221, which streamlines cataloging and data-driven procurement. The GTIN 4028177536722 and the 85472000 customs tariff aid supply chain traceability and harmonized international shipping, reducing delays in global sourcing and ensuring consistent data across ERP systems.
Using the SV End Cover reduces side-contact hazards on busbar assemblies, improving operator safety and compliance during maintenance. The plug-and-play compatibility with SV 9340004 shortens installation time, decreases commissioning risk, and lowers overall project labor costs, delivering measurable ROI through safer, faster, and more reliable panel builds.
