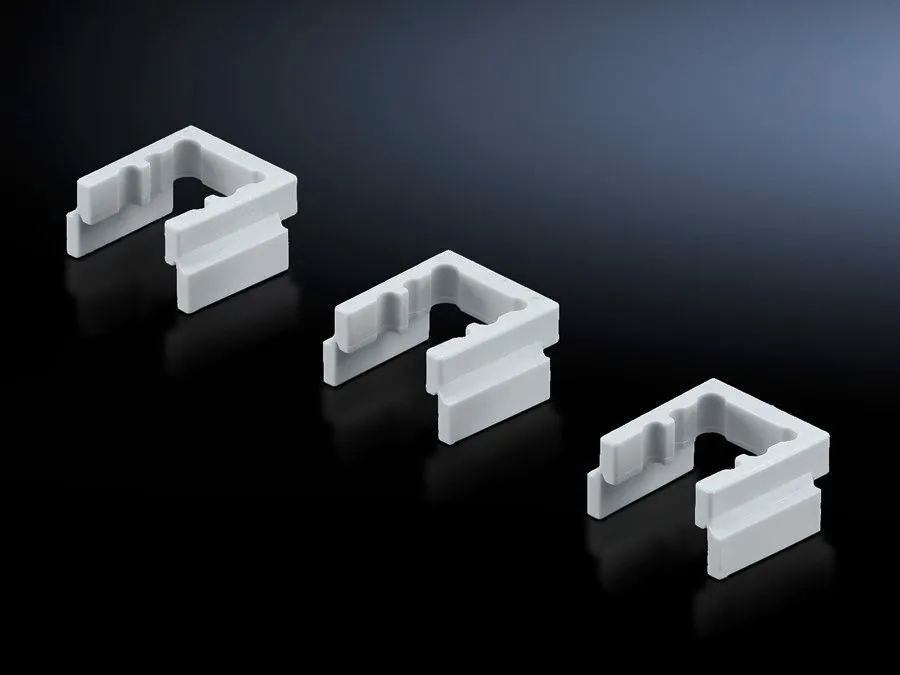

Rittal SV Spacer 9340090 Busbar Support - UL 94-V0
Part Number: 9340090
Manufacturer
Rittal
Part number
9340090
Category
Alt Part Number
SV 9340.090
Quick Summary
Rittal SV Spacer 9340090 is a busbar support adaptor for 12x5 and 12x10 mm copper busbars. Engineers often struggle with secure alignment and insulation in compact control panels, causing assembly delays and reliability concerns. The part delivers UL 94‑V0 fire protection, durable polyamide construction, and clear RAL 7035 color coding for fast identification. It integrates with SV 934000-series components, enabling plug‑and‑play installation and consistent spacing. By simplifying mounting and reducing misalignment, it lowers assembly time, improves insulation integrity, and supports scalable power distribution across challenging enclosures. Packs of 12 pieces per package simplify stocking, while ETIM EC001900 and ECLASS 27400613 data alignment streamlines procurement and engineering workflows.
Product Information
Extended Description
9340090 Rittal: SV Spacer, for busbar support, SV 934000/004/010/030, for busbar WH: 12x5/12x10 mm
Article number
SV 9340.090
Product description
For adapting 12 x 5 and 12 x 10 mm size busbars.
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
To fit Model No.
9340.000
Packs of
12 pc(s).
Weight/pack
0.024 kg
Customs tariff number
39269097
EAN
4028177551916
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Spacer, for busbar support, SV 934000/004/010/030, for busbar WH: 12x5/12x10 mm
Feature: UL 94‑V0 fire-protected polyamide material. Business Impact: Enhances safety and insulation integrity in power enclosures, reducing fire risk and warranty issues. Application: Ideal for 12x5/12x10 mm busbars in Rittal enclosures where stringent fire protection is required. Feature: Clear RAL 7035 coloration. Business Impact: Speeds maintenance and reduces human error during panel servicing, especially in large switchgear installations. Application: Color-coded spacer aids quick busbar routing and identification in dense layouts. Feature: Compatibility with SV 934000/004/010/030 series. Business Impact: Plug‑and‑play installation minimizes commissioning time and stock variety. Application: Seamless integration with existing SV spacers and busbar supports. Feature: Pack configuration: 12 pcs per pack. Business Impact: Streamlines procurement, inventory planning, and reduces unit cost per assembly. Application: Useful for high‑volume panel builds and service fleets. Feature: Model cross-reference to 9340.000. Business Impact: Ensures reliable cross‑compatibility in upgrade projects and spare parts planning. Application: Supports lifecycle management of Rittal busbar systems. Feature: Product description alignment with ETIM EC001900 and ECLASS 27400613. Business Impact: Improves data quality for procurement and ERP integration. Application: Enables consistent data sharing across engineering and purchasing ecosystems.
Get a Quick Quote for a Rittal 9340090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340090?
Enquire Now
FAQs
Begin by ensuring the busbars are clean and properly aligned with the SV 934000/004/010/030 supports. Insert the SV Spacer 9340.090 at the intended mounting location to create a secure, evenly spaced gap. Verify that the spacer sits flush against both the busbar and the supporting structure, then continue with the remaining spacers to maintain consistent spacing across the busbar array. This approach reduces misalignment and improves insulation performance during operation.
The spacer is made from polyamide with fire protection rated UL 94‑V0, providing reliable insulation and flame resistance. The durable polymer supports long service life in electrical cabinets, even under intermittent thermal cycling. The part is color-coded in RAL 7035 to aid maintenance teams in quick identification and consistent installation practices.
Yes. The SV Spacer 9340.090 is designed to fit SV 934000/004/010/030 busbar supports and to be used with model 9340.000. This compatibility ensures seamless integration into existing Rittal busbar assemblies, enabling straightforward upgrades or replacements without redesigning the mounting footprint.
The spacer adheres to UL 94‑V0 fire protection requirements, which helps meet common safety and compliance expectations for electrical enclosures. It is catalogued with ETIM 9 EC001900 and ECLASS 8.0 27400613 data standards, facilitating accurate data classification and procurement workflows. These standards support safer installations and easier integration into enterprise data systems.
By ensuring secure busbar spacing and reliable insulation, the SV Spacer reduces assembly time and rework, lowering labor costs during panel wiring and commissioning. The 12‑piece pack configuration simplifies stocking, reduces project downtime, and improves maintenance turnaround, contributing to faster project timelines and improved overall equipment efficiency.
