Rittal 9340100 SV Base Tray - UL 94-V0 Fire Protection
Part Number: 9340100
Manufacturer
Rittal
Part number
9340100
Category
Alt Part Number
SV 9340.100
Quick Summary
Rittal 9340100 SV Base Tray is a rear contact hazard protection component designed for 3-pole busbar installations in switchgear and control panels. Engineers often struggle with safe clearances and reliable coverage when tailoring base trays to compact layouts. This base tray uses thermally modified hard PVC with UL 94-V0 fire protection, in RAL 7035, to deliver both safety and plant aesthetics. It supports flat copper busbars for 3-pole configurations, and its cut-to-length capability adds installation flexibility and reduces waste. By standardizing on this tray, you simplify compliance checks and streamline assembly workflows, while maintaining consistent color-coding and mechanical fit across your Rittal enclosures.
Product Information
Extended Description

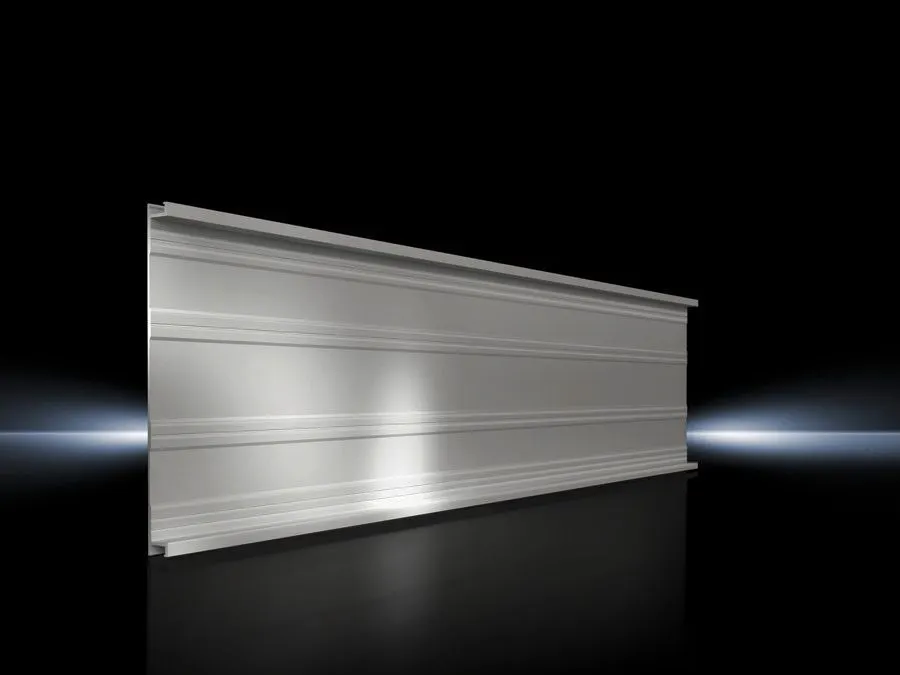

9340100 Rittal: SV Base tray, L: 500 mm
Article number
SV 9340.100
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
500 mm
Note
May be cut individually to required length
To fit busbar system
Flat copper busbars, 3-pole
Dimensions
Length: 500 mm
Packs of
2 pc(s).
Weight/pack
0.994 kg
Customs tariff number
85472000
EAN
4028177502352
ETIM 7.0
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 500 mm
UL 94-V0 rated thermally modified hard PVC provides a robust, flame-retardant shell that keeps busbar assemblies safe in challenging environments. This material choice directly reduces the risk of flame propagation and supports regulator compliance during audits, especially in compact control panels. The 500 mm length is tailored for 3-pole flat copper busbar runs, delivering a secure, neat channel that simplifies wiring harness management and reduces assembly time. The RAL 7035 finish enhances visibility for manual inspections and ensures standardized aesthetics across enclosures, aiding maintenance and color-coding protocols. Packs of two with a weight of 0.994 kg per pack enable efficient stocking and logistics, while the ability to cut-to-length on site minimizes waste and accelerates field modifications. Compatibility with the flat copper busbar system adds installation confidence and reduces the need for additional adapters. These features collectively improve safety, speed, and regulatory alignment in panel builds.
Get a Quick Quote for a Rittal 9340100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340100?
Enquire Now
FAQs
Yes. The SV Base Tray is designed to fit flat copper busbars for 3-pole setups. It measures 500 mm long and ships in packs of two; it can be cut to length on site to match panel width. It integrates with standard Rittal busbar systems and mounting methods for secure attachment in switchgear enclosures.
The tray uses thermally modified hard PVC and provides fire protection according to UL 94-V0. This combination delivers flame retardancy and mechanical strength, while maintaining the industrial color code (RAL 7035) for clear visibility in assemblies. The material choice also supports safer cabinet operation and easier audits.
Yes, the SV Base Tray can be cut to the required length on site. It is supplied in a 500 mm standard length but can be trimmed to fit non-standard panel widths, reducing waste and procurement complexity. Installation aligns with standard busbar mounting practices, ensuring a clean, secure fit within existing switchgear enclosures.
Rear contact hazard protection reduces the risk of accidental contact with live busbars, improving operator safety and compliance with internal safety rules. The UL 94-V0 rated material adds a defensible flame retardant barrier, supporting safer maintenance and regulator-ready documentation for panel builds.
Rittal provides extensive technical documentation for 9340100 SV Base Tray across multiple languages. Access EN, DE, ES, IT and more via the product page downloads section, including PDFs and General Technical Information (CS/DA) to support installation and compliance planning.
