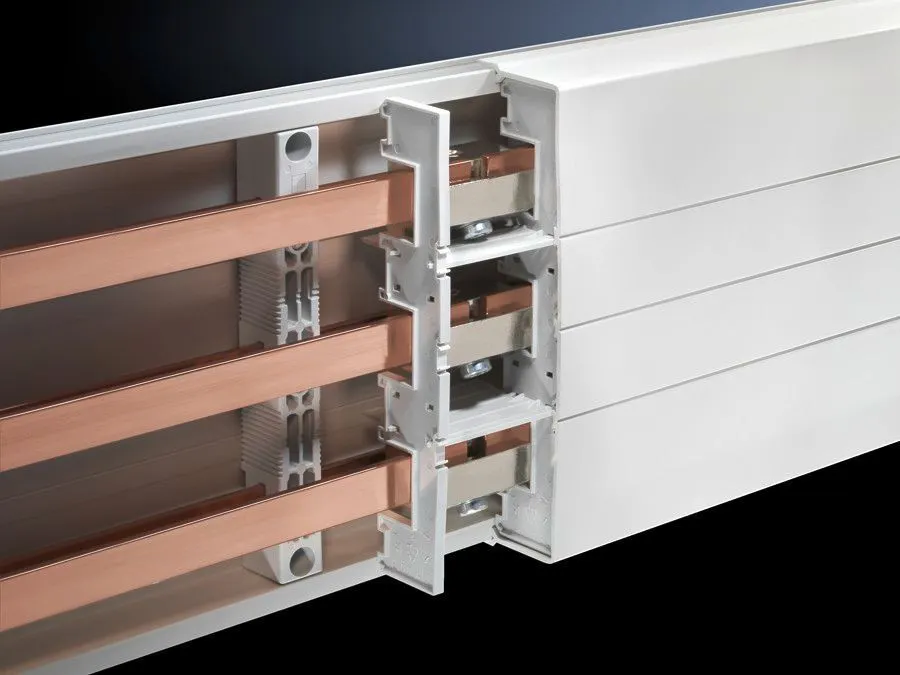

Rittal 9340200 SV Cover Section for Base Tray - UL 94-V0
Part Number: 9340200
Manufacturer
Rittal
Part number
9340200
Category
Alt Part Number
SV 9340.200
Quick Summary
Rittal 9340200 SV Cover Section for Base Tray provides a reliable clip-on enclosure solution for base-tray mounted power distribution systems. Many installations struggle with covers that are hard to install, restrict airflow, complicate front-access service, or produce inconsistent cable routing. The SV Cover Section leverages UL 94-V0 fire protection and is classified under ETIM EC000775 and ECLASS 27142414, ensuring reliable procurement and interoperability. The 700 mm length with a RAL 7035 finish supports modular, scalable deployments while delivering consistent aesthetics across enclosures. This combination translates into faster commissioning, easier maintenance, and reduced downtime for critical power distribution applications.
Product Information
Extended Description
9340200 Rittal: SV Cover section, L: 700 mm
Article number
SV 9340.200
Product description
For clip-on mounting onto the base tray.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Length
700 mm
Note
If the cover section is loaded from the front, the support panel is needed for stability
To fit busbar system
Flat copper busbars, 3-pole
Dimensions
Length: 700 mm
Packs of
2 pc(s).
Weight/pack
1.86 kg
Customs tariff number
85472000
EAN
4028177502420
ETIM 9
EC000775
ECLASS 8.0
27142414
Product description
SV Cover section, L: 700 mm
Clip-on mounting to base trays streamlines installation and reduces field labor, delivering faster setup and easier future maintenance in modular switchgear environments. The business impact is lower installation costs and quicker system readiness, especially in multi-door enclosures where time is a critical factor. Ideal across industrial automation and electrical installations, it supports clean cable routing and rapid reconfiguration, enabling scalable deployments for growing facilities. The thermally modified hard PVC construction provides durable mechanical protection and a fire-safe profile (UL 94-V0), implying safer cabinets and compliant, long-term operation in harsh production environments. A 700 mm coverage length and RAL 7035 finish ensure a consistent, professional appearance, reducing cosmetic misfits during panel integration and streamlining warehouse matching. Compatibility with flat copper busbars (3-pole) simplifies internal wiring, minimizes retrofit risk, and improves electrical performance within existing switchgear architectures. Pack contents (two pieces) support efficient stocking and predictable logistics, while the 1.86 kg per-pack weight aids in material handling planning. Note that if the cover is front-loaded, a dedicated support panel is needed for stability, reducing vibration and wobble during service. ETIM EC000775 and ECLASS 27142414 classifications further simplify procurement and cross-system compatibility in large-scale projects.
Get a Quick Quote for a Rittal 9340200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340200?
Enquire Now
FAQs
Install by aligning the SV Cover Section with the base-tray edge and snapping it onto the profile until the edges seat firmly. The pack contains two pieces for balanced coverage. If mounting from the front, use the designated support panel to maintain rigidity and prevent deflection during service. Ensure busbar clearance and cable routing remain unobstructed after installation.
Key specs include a 700 mm length, thermally modified hard PVC with UL 94-V0 fire protection, and a RAL 7035 color. It fits flat copper busbars, 3-pole, and is sold in packs of 2 with a weight of 1.86 kg per pack. The article number is SV 9340.200 and the GTIN is 4028177502420, with ETIM EC000775 and ECLASS 27142414 classifications.
Yes. The SV Cover Section is designed to fit flat copper busbars configured for 3-pole installations, enabling seamless integration with standard Rittal base-tray layouts and minimizing modification requirements for existing switchgear.
The product features UL 94-V0 fire protection, indicating compliance with recognized flame-retardant standards. It is classified under ETIM EC000775 and ECLASS 27142414 for standardized procurement and cross-system interoperability, supporting consistent sourcing in automated plants and electrical cabinets.
The clip-on installation reduces commissioning time and facilitates quicker maintenance access, cutting downtime during routine servicing. The 700 mm footprint and color consistency minimize rework during retrofits, while the two-piece pack aids in stocking and logistics, contributing to lower lifecycle costs and improved total cost of ownership.
